Salamander Designs Extended Rear Panel

Salamander Designs

Quantity

Price

Price range: $379.00 through $587.00

Quick answers from real humans

Expert help

Description

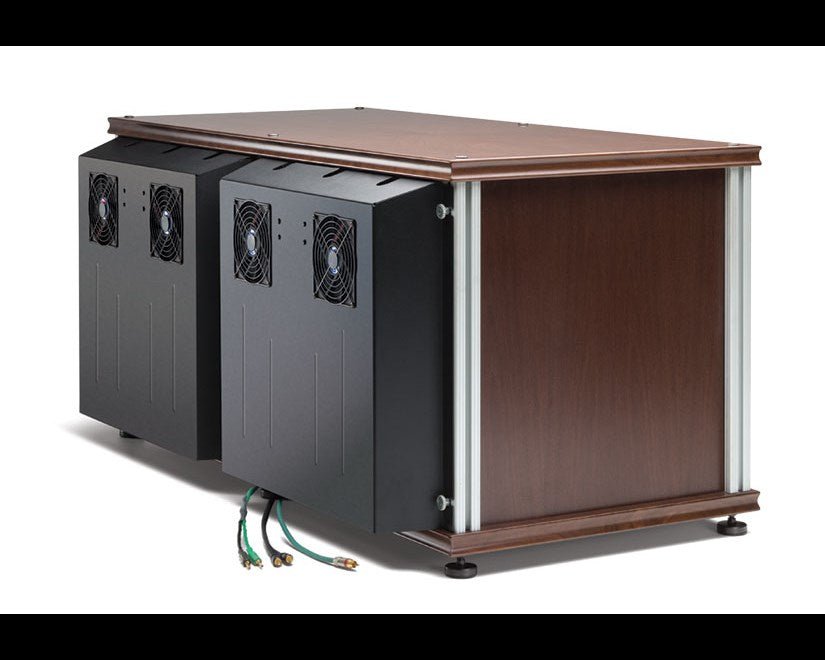

Salamander Designs Extended Rear Panel

Salamander Designs fabricated the Extended Rear Panel from heavy-weight black powder-coated steel in 20, 30, and 40-inch widths, each adding 3.5 inches of rear depth to compatible Synergy 40 Module cabinets. The active cooling variant runs dual thermostatically controlled 120mm fans that activate at 80 degrees and hold noise to just 22 dBA. Thumb-nut fasteners allow tool-free removal of the rear section for direct cable access at any time.

Only Gear We’d Put in Our Own Setups

60-Day Hassle-Free Returns

Real support from real humans in the USA

Salamander Designs Extended Rear Panel

    Price range: $379.00 through $587.00

    Authorized Dealer

    Product Features

    Free Shipping Nationwide
    No Hassle 30 Days Return
    Price Assurance
    Dream Team
    Preferred Installers

    Description

    Thermostatically Controlled Rear Panel with Active Cooling

    Triple fans come standard inside this steel rear panel. The Salamander Designs Extended Rear Panel arrives in three sizes to fit into existing configurations. From a materials standpoint, black powder coated steel construction and 22 dBA noise floor are more than acceptable for even the dedicated home theater room during long listening sessions.

    Overall, Salamander Designs constructed the Extended Rear Panel out of heavy-weight black powder-coated steel with thumb-nut fasteners included. As for internal dimensions, the addition of 3.5” of depth allows for plenty of extra clearance behind all installed components for bulky cables and connectors. The 40” wide model stands 22” wide by 37.75” tall by 3.5” deep and weighs 17 lbs.



    Extra Depth, Fan System, and Cable Management

    Inside each size option of Salamander Designs Extended Rear Panel ships as plain black or activated with the dual cooling fan system installed. Affixing the rear panel to any AV cabinet is as simple as lining it up and securing it with thumb- nuts for tool free installation or removal at a later date. Providing 3.5 inches of much needed depth behind every AV component helps clean up HDMI and audio cables.

    Removable with thumb- nuts for quick access, the rear section of the Extended Rear Panel also opens up the back for easy connection to all cables and wires. Automatically controlled, the dual 120mm cooling fans kick in at 80 degrees and slow their rotation as the cabinet’s interior cools. Optional caster wheels mounted under the bottom of the cabinet allow for rolling the entire system around.



    Ventilation, Accessories, and a Dreamedia System Build

    Salamander Designs rates both 120mm cooling fans at 22 dBA so they will not interrupt your music when they do kick in. Even better, the thermostat controlling them will only power them on when they are needed to keep cabinet noise to a minimum. Pairing nicely with any media storage setup, Salamander Designs also offers a variety of cabinet accessories that complement the Extended Rear Panel.

    In a well-planned custom home theater design, the Salamander Designs Extended Rear Panel resolves heat and cable management simultaneously. Dreamedia AV specialists can then match source components, receivers, and racks to build the full system around it. To begin, book a free home theater consultation with Dreamedia to start designing a system around this rear panel.a





    Key Features



    Dual thermostatically controlled 120mm cooling fans activate at an interior temperature of 80 degrees and run at only 22 dBA

    Sold blank or equipped with dual cooling fans in 20, 30, and 40 inch widths

    Provides 3.5” of additional depth to any Synergy 40 Module cabinet

    Constructed out of heavy-weight black powder coated steel

    Weighs 17 lbs for the 40 inch wide model

    Includes thumb- nut removable rear section for tool free access to cable connections

    Variable speed fan designed to slow down automatically as the temperature drops below 80 degrees

    Mount caster wheels to the bottom for optional mobility

    Limited Lifetime Warranty Manufacturer’s Warranty



    General
    Product NameSalamander Designs Extended Rear Panel
    ModelSA/XR40
    FinishBlack
    MaterialHeavy-weight black powder-coated steel
    Proposition 65 WarningApplicable for Residents/Customers in California
    Dimensions
    Width22 inches
    Height37.75 inches
    Depth3.5 inches
    Weight
    Product Weight17 lbs
    Compatibility
    Compatible withSynergy 40 Modules
    Not Compatible withChameleon TV mounts
    Features
    Extra DepthProvides 3.5 inches of extra depth to cabinets
    VentilationImproved interior ventilation
    RemovableEasily removable with thumb-nuts for quick components access
    Can be used withStandard rear panels
    CoolingActive Cooling with Quiet Maintenance-Free Fans
    Fan Noise LevelQuiet (22 dBA)
    Fan SizeDual-120mm fans
    Fan ControlThermostatically controlled fans turn on at 80º Interior Temp
    Speed OperationVariable speed operation
    Warranty
    Manufacturer WarrantyLifetime

    Reviews

    There are no reviews yet.

    Be the first to review “Salamander Designs Extended Rear Panel”

    Introduction

    Salamander Designs is well-regarded in the realm of home theater furnishings, offering a range of products that blend functionality with aesthetic appeal. Their Extended Rear Panel Audio Cabinet, model SA/XR40, is a testament to their commitment to quality and design. In the world of home theater setups, the importance of a reliable and well-constructed audio cabinet cannot be overstated, as it not only houses valuable equipment but also contributes to the overall audio experience by managing acoustics and equipment cooling.

    Design and Aesthetics

    The SA/XR40 is available in various finishes, including cherry and black, catering to diverse tastes and ensuring that it fits seamlessly into any home theater environment. The heavy-weight black powder-coated steel material speaks to the durability and longevity of the product. Its robust construction is complemented by a design that is both elegant and functional, making it a visually appealing addition to any space.

    Dimensions and Fit

    Measuring 22 inches wide, 37.75 inches high, and 3.5 inches deep, the SA/XR40 is designed to accommodate a range of audio equipment, from amplifiers to AV receivers. Its thoughtful dimensions ensure it can be integrated into most home theater setups without overwhelming the space, while still providing ample room for various components.

    Customization and Flexibility

    One of the standout features of the SA/XR40 is its customizable shelf heights. This design choice allows users to tailor the interior space to their specific equipment needs without being constrained by pre-drilled holes. The options for vented metal sides, cherry vented doors, and glass doors add to this flexibility, enabling users to choose the best configuration for their equipment's ventilation requirements and aesthetic preferences.

    Construction and Mobility

    The solid construction of the SA/XR40 ensures that it can reliably support heavy audio equipment without concern. The inclusion of caster wheels is a thoughtful touch, adding mobility to the cabinet and making it easy to move and reposition, which is particularly useful during setup or when making changes to the home theater system.

    Ventilation and Cooling

    The extended rear panels are not merely a design feature; they play a crucial role in enhancing the ventilation and cable management of the audio cabinet. The fans, described as virtually silent, provide efficient cooling to the electronic components, which is essential for maintaining performance and extending the life of the equipment.

    Additional Features and Functionality

    Media drawers offer a convenient storage solution for DVDs, Blu-rays, and other physical media, helping to keep the home theater area organized. The use of thumb screws for the rear panel is a user-friendly touch, simplifying the process of accessing the back of the equipment for wiring and maintenance.

    Pros and Cons

    The SA/XR40 shines with its high-quality construction, customizable shelving, and superior ventilation system. However, the reported time-consuming assembly process may be a deterrent for some users. While the wood finishes are attractive, they could be prone to damage if not handled carefully. Additionally, some users may find the open-bottom design less effective for airflow control compared to a more enclosed cabinet.

    Practical Considerations

    Assembling the SA/XR40 may require some effort and time investment, which could be challenging for individuals with limited experience in furniture assembly. The cabinet's maintenance and potential susceptibility to cosmetic damage should also be considered, though this is a common concern for most wood-finished products.

    Comparison with Competing Products

    When positioned against similar products in the market, the SA/XR40 stands out with its customizable features and silent cooling system. While other cabinets might offer different design elements or simpler assembly, the SA/XR40's robust construction and flexible design make it a compelling choice for the discerning consumer.

    Final Thoughts

    The Salamander Designs Extended Rear Panel Audio Cabinet is a well-rounded product that offers durability, customization, and thoughtful design features aimed at the home theater enthusiast. With the ability to support a range of audio equipment, enhance ventilation, and provide additional storage, it offers a high level of utility and aesthetic appeal. While the assembly process and care requirements are points to consider, the overall value proposition of the SA/XR40 is strong, making it a recommended option for those looking to invest in a quality audio cabinet.
