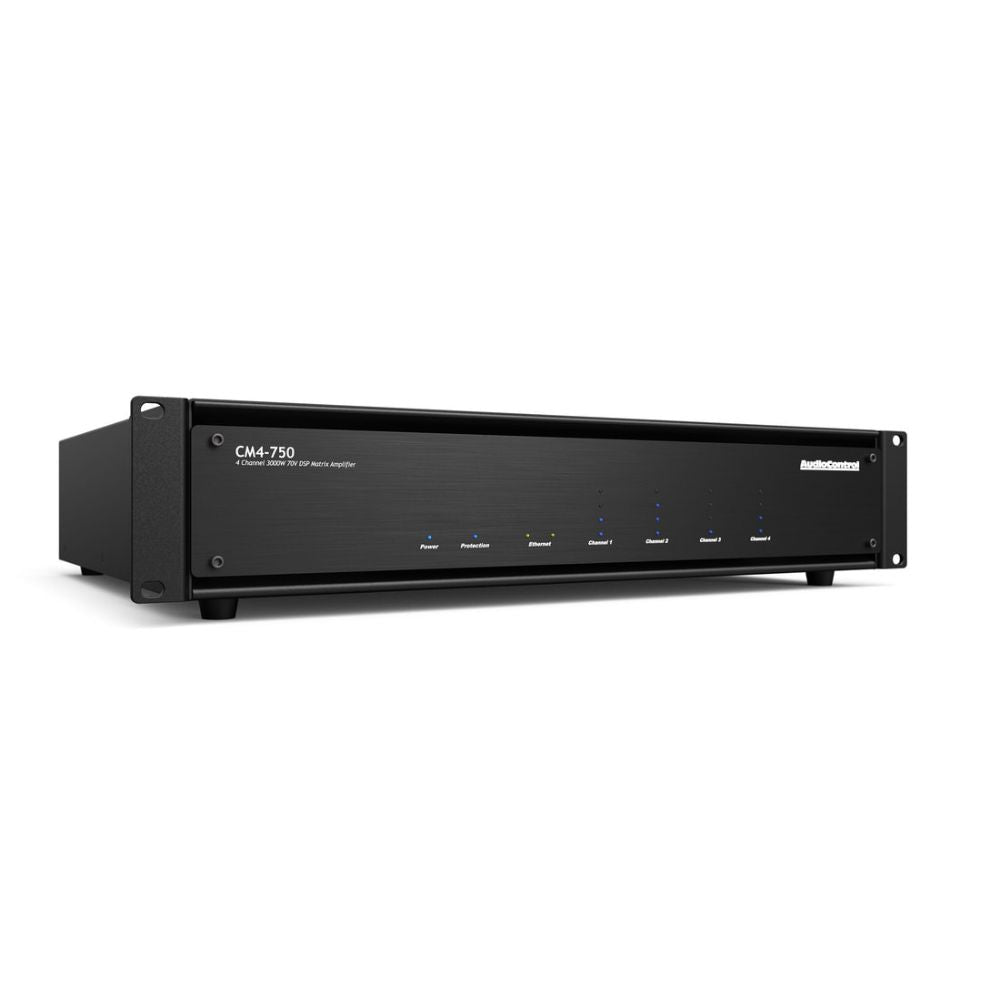

AudioControl - MODEL CM4-750D

4 CHANNEL HIGH-POWER DUAL MODE 70 VOLT DSP AMPLIFIER with DANTE

$4,290.00

by AudioControl
Free Shipping Nationwide

You bought the tech, we’ll cover the rest. We will ship your product free to your door anywhere in the U.S.

NO HASSLE 30 DAYS RETURN

Not happy with an item? No sweat, you have 30 days to return it without any hassle!

PRICE ASSURANCE

We will always work to get you the best available price across all authorized dealers.

DREAM TEAM

Let our experts help make your audio/visual dreams come true!

PREFERRED INSTALLERS

We have a large group of installers across the US. Let us help you find a preferred installer in your area.

This is a Dreamedia+ product which includes white glove service, professional setup and calibration. Due to the complexities of the this product we would like to schedule a free video consultation for you and Dreamedia specialist. This will ensure it is the proper selection for your space, equipment and budget. Don’t forget that we can assist with crating a complete home cinema design! We offer acoustic analysis, seating charts, screen size, equipment lists, system design, renderings, and even 3D flythrough animations. Let our DREAM team bring your vision to LIFE!

AudioControl’s 70 volt amplifier solutions deliver superior quality power and sound through a large number of speakers, ideal for outdoor audio systems as well as a large variety of commercial A/V applications. DSP control and signal matrixing capabilities from AudioControl’s award-winning Director Series amplifiers enable integrators to precisely tailor the sound to any environment. Choose from balanced/unbalanced analog, microphone and digital inputs. Outputs can be configured in mono or stereo, giving integrators the configuration flexibility they need to accommodate any system architecture. For maximum efficiency, system setup and diagnostics can be managed remotely via an IP using a responsive web interface.

DANTE SUPPORT

​Dante audio networking uses standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. Dante is the audio networking choice of nearly all professional audio manufacturers.
This is a Dreamedia+ product which requires professional setup by Dreamedia Specialist. Call or chat with a specialist to learn more.

Overview

We're proud to be an authorized dealer of AudioControl

FEATURES

  • Network DHCP Signal Matrix Amplifier With Volume Control
  • Dante Port
  • 4 Channels x 750 Watts at 70/100 V or 2Ω/4Ω (All Channels Driven)
  • 4 Channels x 625 Watts at 8Ω (All Channels Driven)
  • 1500 Watts of Bridged Power at 70/100 V or 4Ω/8Ω
  • Digital Signal Processing (DSP) Performance
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Built in Matrix Delivering Analog or Digital Inputs to be Routed To Any Zone or Digital Bus Output
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names for All Zones & Amplifier
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Digital and Analog Inputs with Digital and Analog Pass Thru / Loop Outputs
  • Dual Digital Audio Bus Outputs
  • Commercial and Home Installations

Specs

  • INPUTS
  • Inputs: 8 Balanced Inputs, 8 Unbalanced RCA Inputs, 2 Digital Combo Coax/Toslink Inputs
  • Input Sensitivity: 1 Vrms for full output, level at maximum
  • Input Gain: 30 dB
  • OUTPUTS
  • Amplifier Channels: 4
  • Power Output (70 V / 100 V): 750W per channel
  • Power Output (70 V / 100 V Bridged): 1500W
  • Power Output (8Ω / 4Ω): 625W per channel
  • Power Output (8Ω Bridged): 1250W
  • Minimum Speaker Load: 2Ω
  • Preamp Audio Outputs: 4 Balanced, 4 Unbalanced RCA, 4 Digital Coax Loop Outputs
  • CONTROL
  • Remote Power Trigger: +12 VDC or Dry Contact Closure
  • Network Connection/Protocol: 10BaseT Ethernet TCP/IP
  • Communication Protocol: HTTP or Telnet
  • WEIGHT & DIMENSIONS
  • Dimensions: 17” W x 15.5” D x 3.5” H (2U)
  • Weight: 18.5 lbs (8.4 kg)
  • IN THE BOX
  • Model CM4-750, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty


Additional Info

POWER AND CONTROL AT YOUR FINGERTIPS

The CM Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, digital and analog inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance. Two digital inputs and outputs are both accessible in the matrixing so that any one of the input sources can be routed through the digital outputs. These digital outputs can be connected to other CM Series, The Director M or D Series or Architect digital inputs so that multiple amplifiers can receive any signal from any of the inputs.

SPEAKER OPTIMIZATION PROFILES

AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The CM Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.
