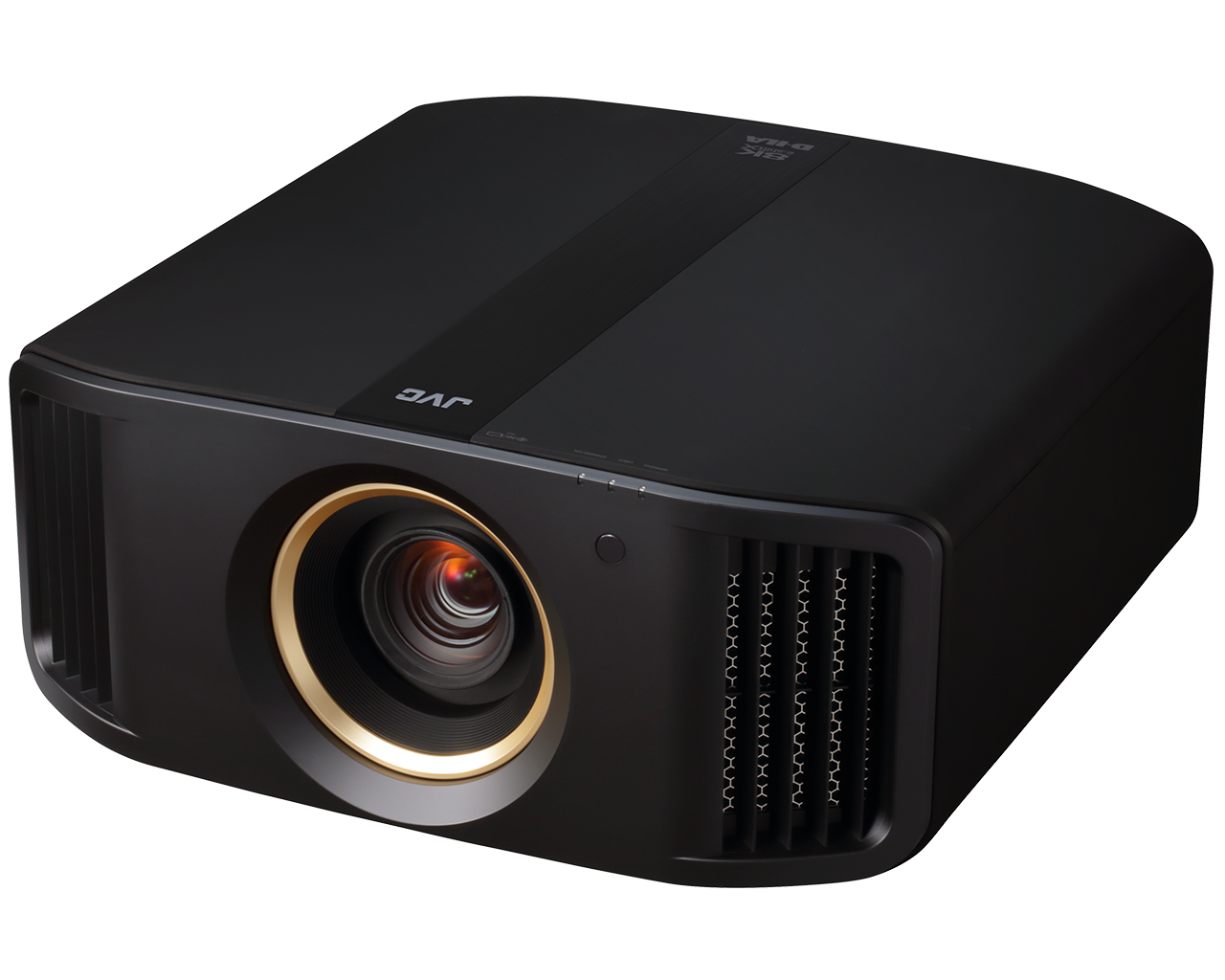

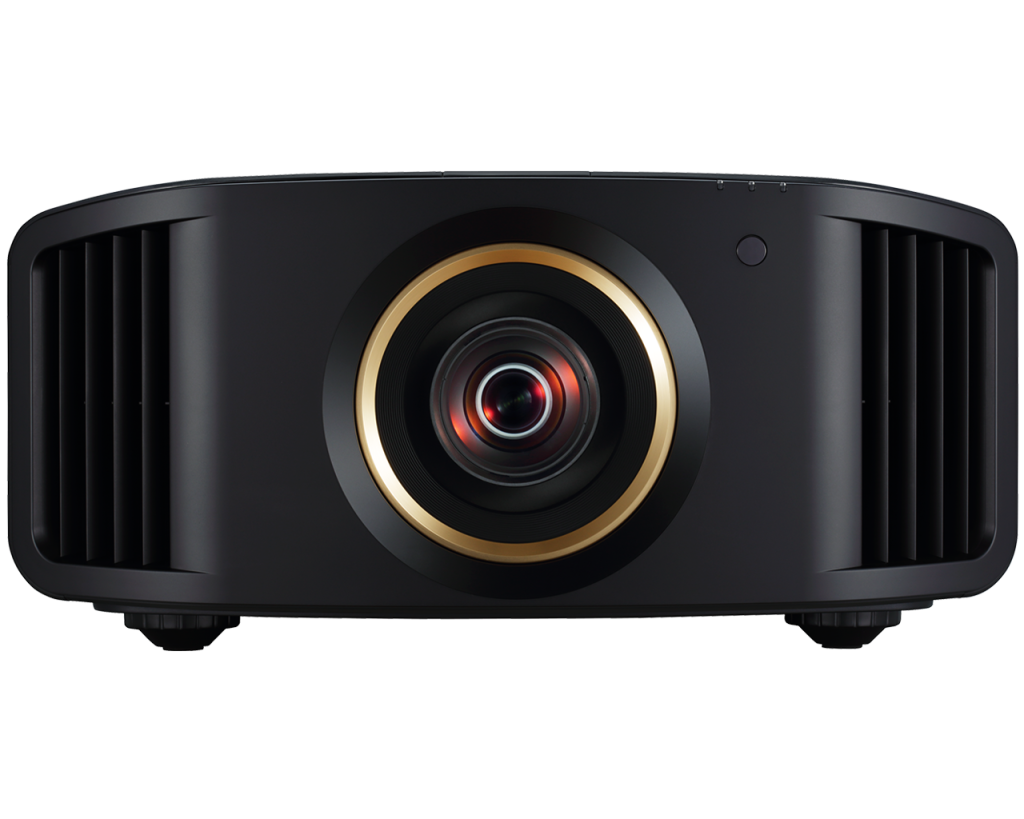

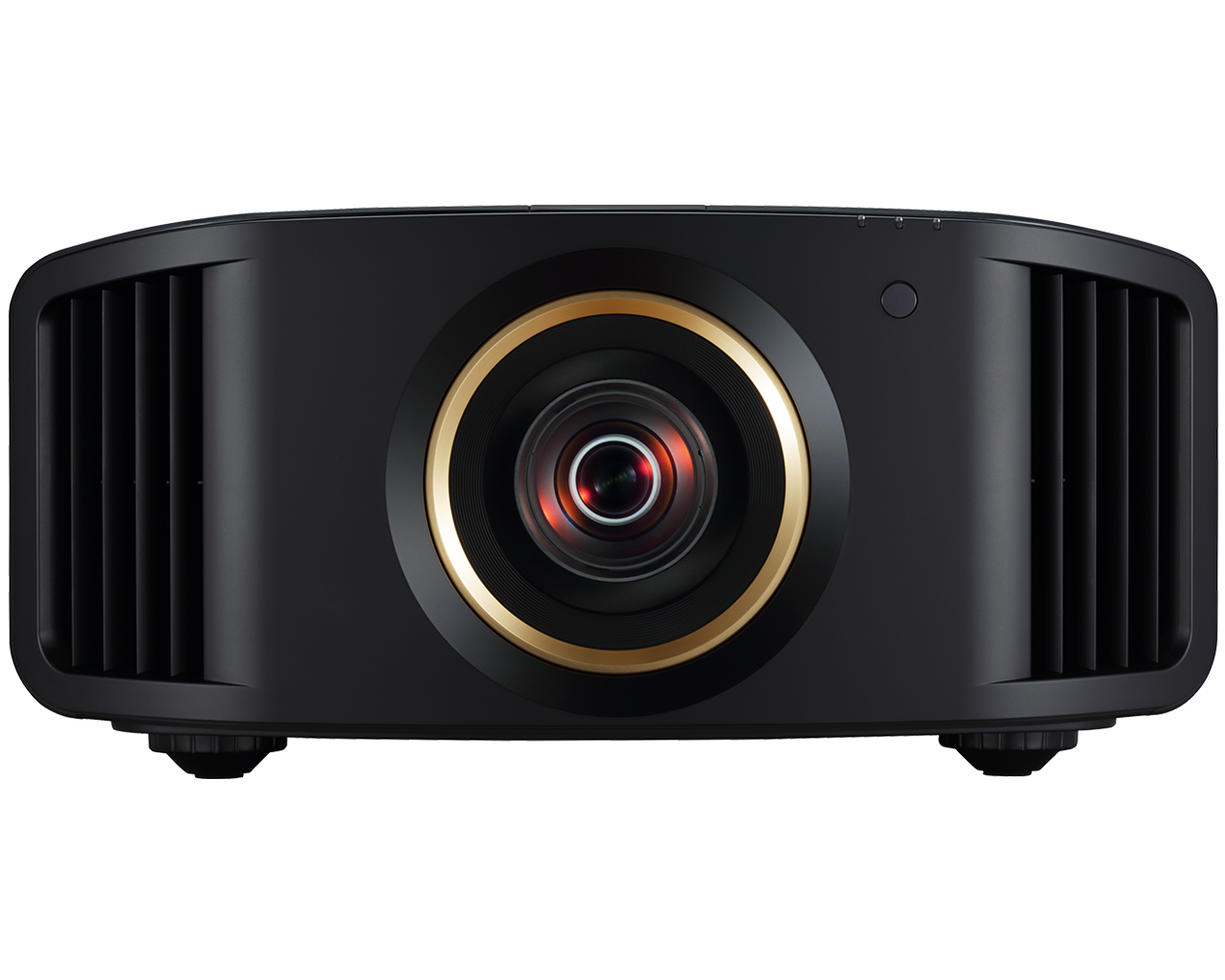

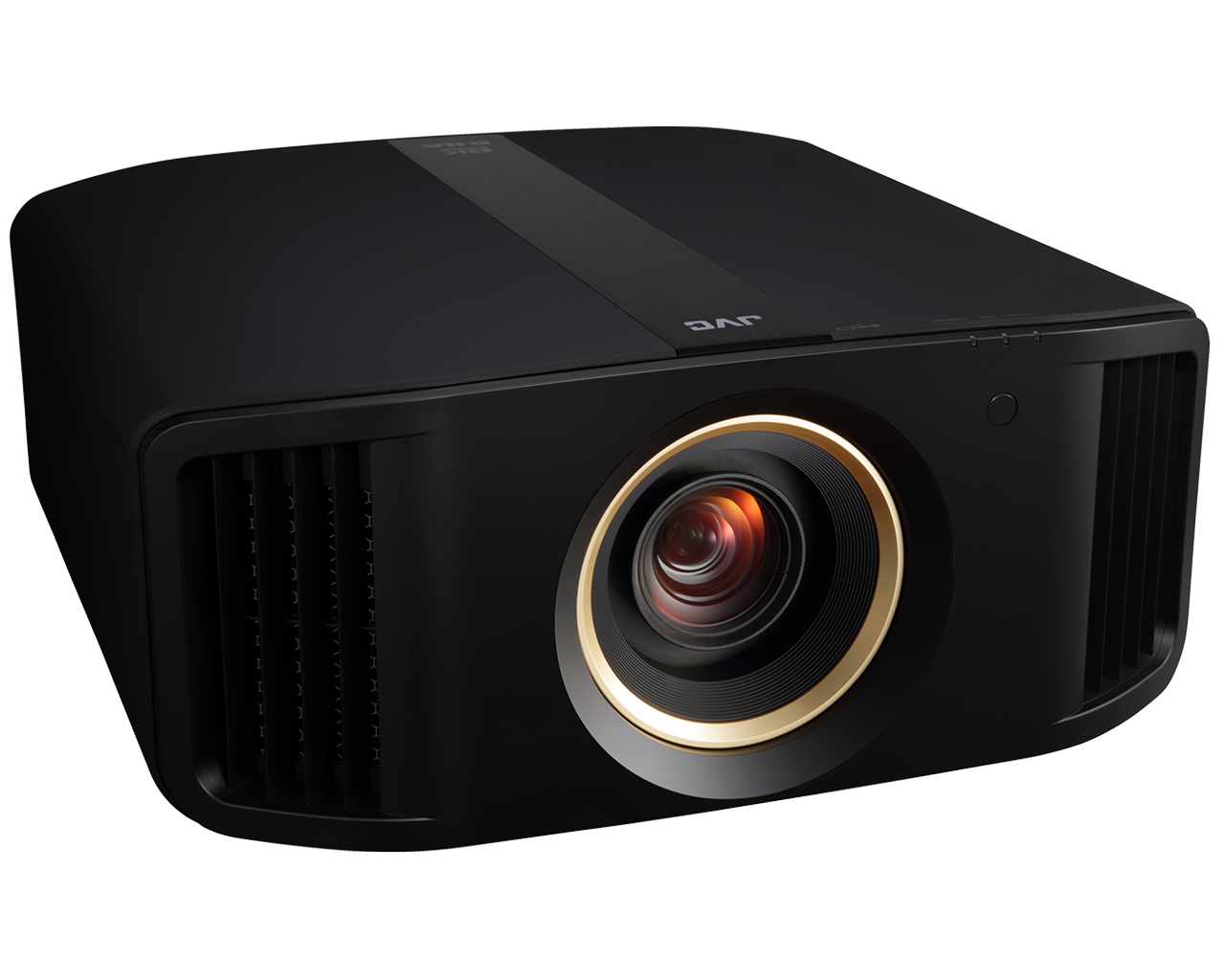

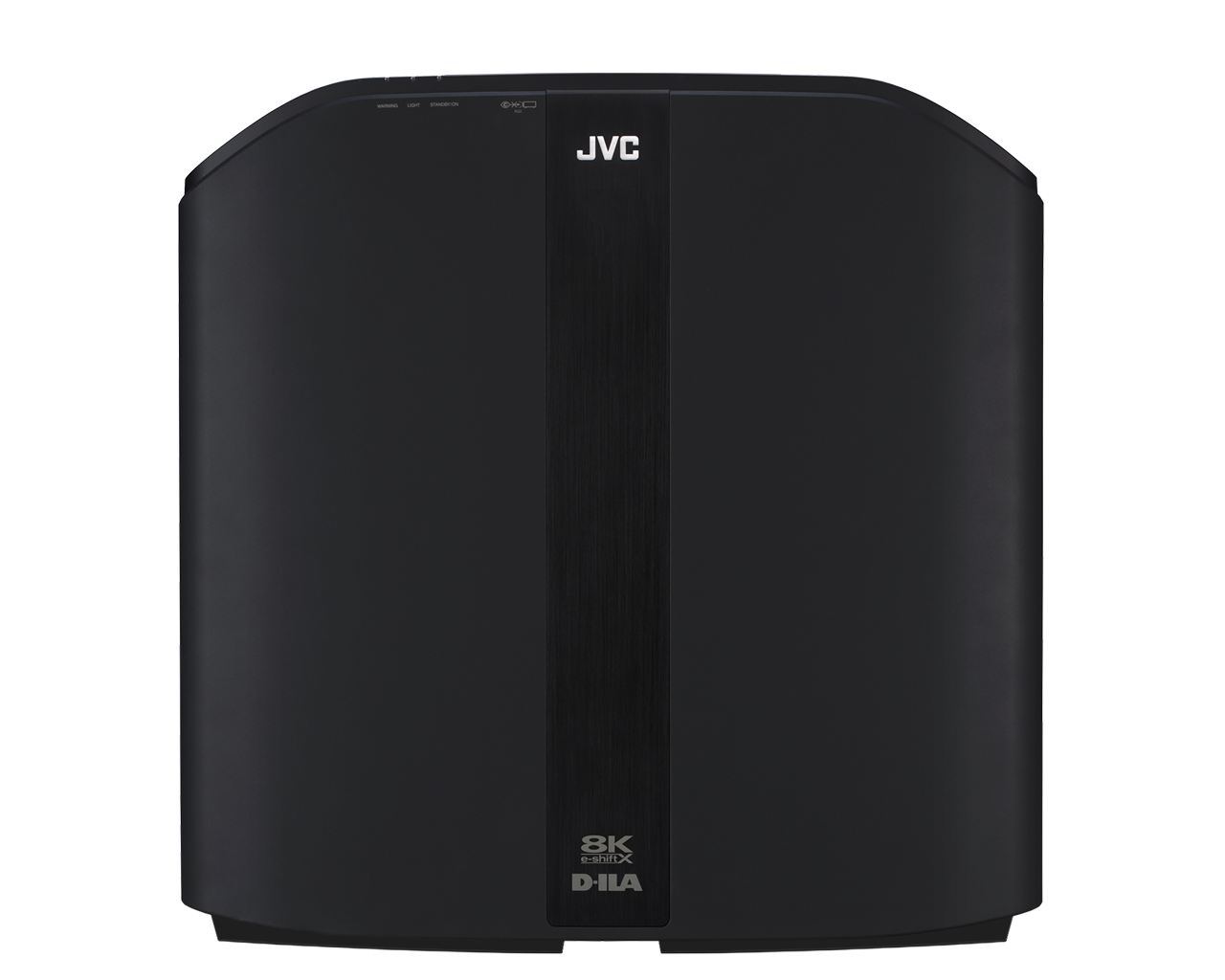

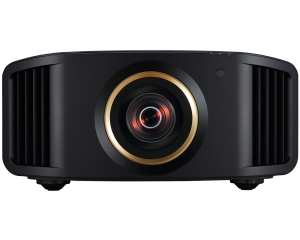

JVC DLA-RS3200 BLU-Escent Laser 2700 Lumens 8K E-ShiftX Home Theater Projector

Device

• D-ILA Technology: Yes
• Chip Type: 3rd Generation 0.69-inch 4K D-ILA device
• Native Resolution: 4096 x 2160
• Number Of Chips: 3
• 8K/e-shiftX: Yes
• Display Resolution: 8192 x 4320

Light Source

• Laser: Yes
• Type: BLU-Escent Laser Diode
• Life Time (Standard Mode): 20000 hours


• Brightness: 2700 lm
• Dynamic Contrast: ∞ to 1
• Native Contrast: 100000 to 1
• Dynamic Light Power control: Yes
• Modes: Low, High, Balance, Off
• Manual Aperture: Yes
• Range: -15 (stops down) to 0 (opens up)
• DCI-P3 Color Gamut: Yes
• 100% REC 709: Yes
• Color Bit Depth: 12 bit
• ISFccc Certification: Yes

HDR

• HDR10: Yes
• HDR10+: Yes
• Frame Adapt HDR: Yes
• Theater Optimizer: Yes
• HLG: Yes
• Auto Tone Mapping: Yes
• Mastering Info Display: Yes
• Info data: MaxCLL, MaxFALL and DML
• Deep Black Tone Control: Yes

Lens

• Zoom: 2 x
• Throw Ratio: 1.43-2.92 to 1
• Diameter: 65 mm
• Material: All-glass
• Build: 17-element, 15-group in full aluminium lens barrel.
• Lens Shift: Yes
• Range Horizontal: ± 34 %
• Range Vertical: ± 80 %
• Motorized Zoom: Yes
• Motorized Shift: Yes
• Motorized Focus: Yes
• Projection Display size (diagonal): 60 - 200 inch
• Memory Function: Yes
• Number of user presets: 10
• Lens Cover: Yes

HDMI

• HDMI: Yes
• Number of Inputs: 2
• Data Rate: 48 Gbps
• HDCP Version: 2.3
• 8K60P signal input: Yes
• 4K120p signal input: Yes
• 4K60P signal input: Yes
• Video Signal range: 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
• PC Signal range: VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
• Input Level Adjustment: Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
• Color Space Range: Auto/ YCbCr444 / YCbCr422 / RGB
• EDID Modes: A , B and C (older hardware may need to use B settings)

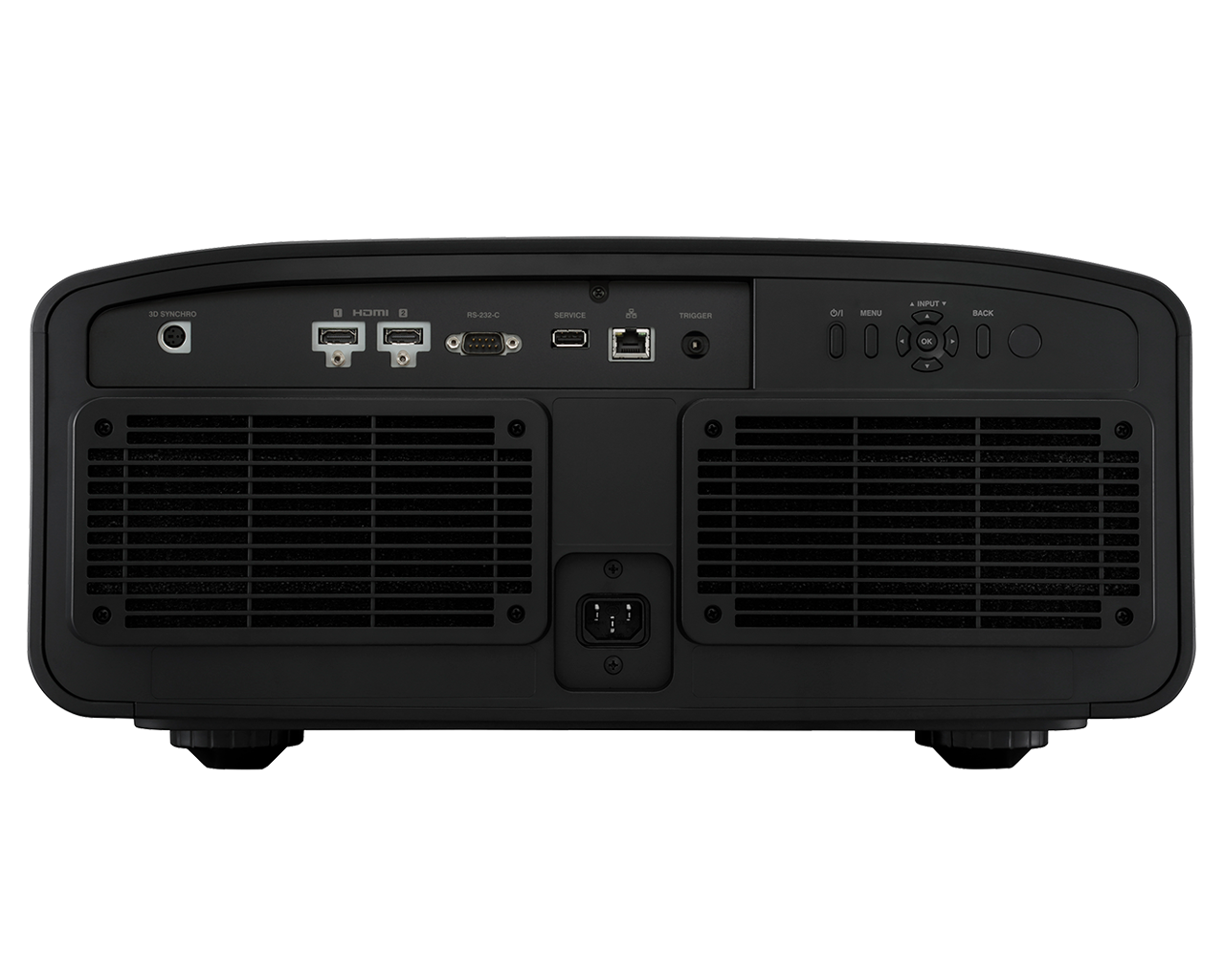

Connections

• Trigger out: Yes
• Connector: Mini-Jack (3,5mm)
• Power: DC 12V / 100mA
• 3D Synchro: Yes
• Connector: Mini DIN 3-pin
• LAN: Yes
• Connector: RJ45
• RS-232: Yes
• Connector: D-sub 9-pin
• Service: Yes
• Connector: USB (Type A) for firmware update or backup

3D

• 3D Capability: Yes
• 3D Versions: Frame Packing, Side-by-Side, Top & Bottom
• Frame Packing Resolutions: 720p 60/50, 1080p 24
• Side-by-Side Resolutions: 720p 60/50, 1080p 60/50/24, 1080i 60/50
• Top & Bottom Resolution: 720p 60/50, 1080p/24
• 3D Emitter (Optional): Yes, PK-EM2
• 3D Glasses (Optional): Yes, PK-AG3

Picture Settings

• Picture Modes: Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, 6 User modes
• Color Temperatures: Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
• Gamma Processing Depth: 12 bit
• Gamma Adjust: HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, 3 Custom modes
• Color Management: 6-Axis adjustable CMS
• MPC: Yes
• Filmmaker Mode: Yes
• Low Latency Mode: Yes
• Clear Motion Drive: Yes
• Motion Enhance: Yes
• Auto Calibration: Yes
• Optional Probe needed: Yes
• Installation Mode: Yes
• Number of modes: 10
• Included settings: Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
• Anamorphic Modes: 4 Modes (A, B, C, D)
• Control4 SDDP: Yes

Power & Environment

• Power Requirement: AC100-240V, 50/60Hz
• Projector in Use: 440W
• Standby: Eco-mode
• Network Standby: 1.5W (LAN)
• Fan Noise: 24 dB
• Eco Mode: Yes
• Standby Timer: Yes
• Operating Temperature: 5°C to 35°C
• Operating Humidity: 20% to 80%
• Installation Angle: Horizontal +/- 10 degree / Vertical +/- 10 degree
• Installation Height: Below 2,000 m

In the box

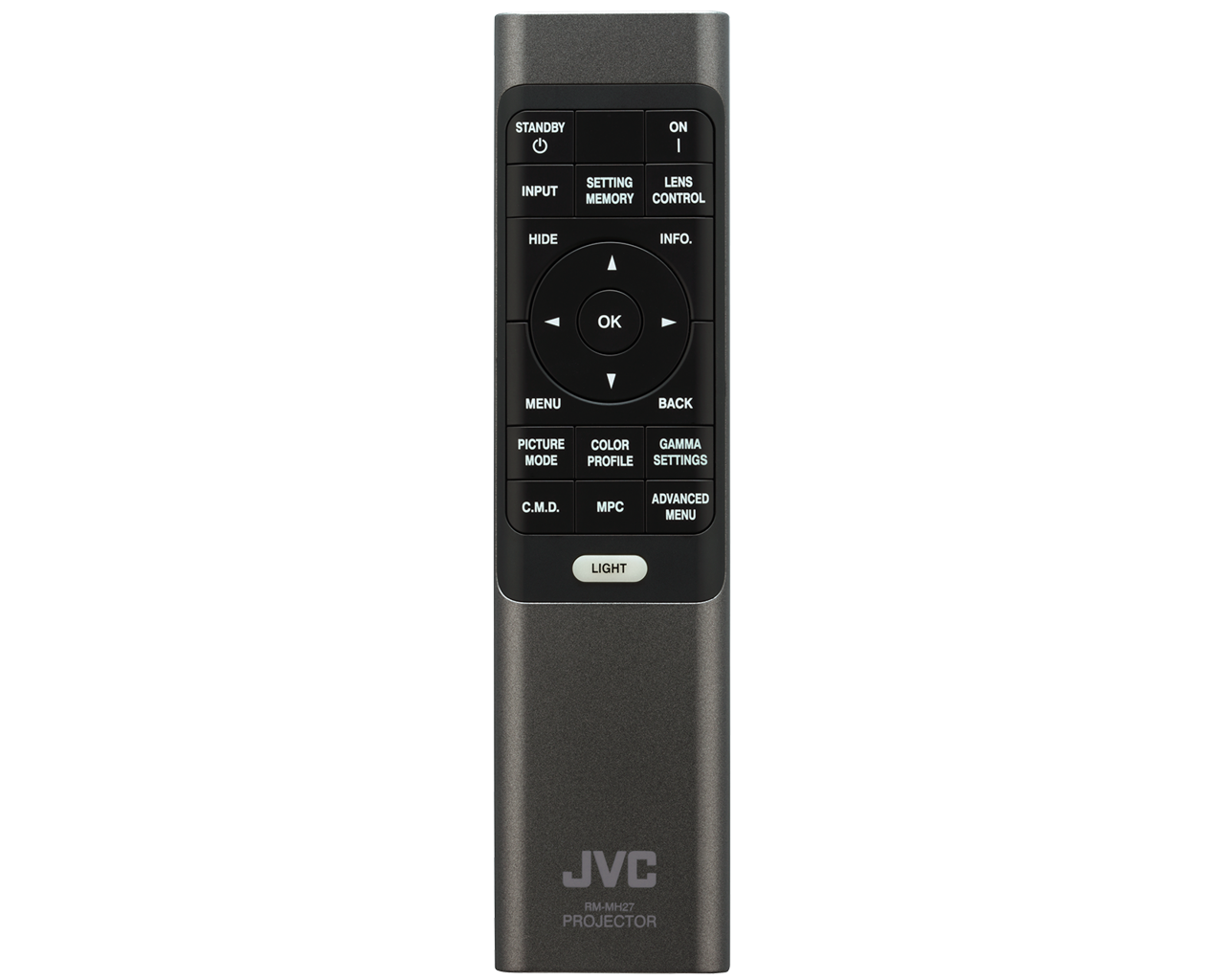

• Remote Control: Yes, RM-MH27
• Quick Guide: Yes
• Power Cord: Yes
• Batteries: Yes, 2 x AAA-size batteries

Dimensions & Weight

• Product Weight: 50.8 Lb
• Dimension (W x H x D, including feet): 500 x 234 x 505 mm
• Dimension (W x H x D, including feet): 19-11/16 x 9-7/32 x 19-29/32 inch

General Editing Note

• General Note: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
