SVS Ultra Evolution Pinnacle Speaker - Dreamedia AV

Vendor: SVS

SVS Ultra Evolution Pinnacle Speaker (Each)

Floor-standing Tower Loudspeaker with Advanced Audio

$2,499.99; $2,499.99
Unit price: per

Product variants

SVS Authorized Dealer

Quantity:

Need Help?

We're here to help. Call or chat with a Dreamedia specialist.

877-417-9000 Chat the crew

Free Shipping

Free nationwide shipping available!*

Free Returns

30 day guarantee.

SVS Ultra Evolution Pinnacle Speaker (Each)

Add to cart

Unparalleled Acoustic Excellence

Enter the realm of acoustic perfection with the SVS Ultra Evolution Pinnacle Speaker. Designed for the audiophile who craves a superior home theater experience, this floor-standing tower loudspeaker promises to transform any room into a concert hall. The Ultra Evolution Pinnacle is not just a speaker; it's a statement of sophistication and a testament to SVS's commitment to audio mastery.

Premium Craftsmanship for the Discerning Listener

Speaker Type: Floor-standing Tower Loudspeaker
Frequency Response: 24Hz to 40kHz (+/-3 dB)
Nominal Impedance: 6 ohms
Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
Recommended Amplifier Power: 20 – 300 watts

The SVS Ultra Evolution Pinnacle stands tall, with a stature that commands attention. Its cabinet dimensions are a sleek 50.2” (H) x 11.81” (W) x 18.14” (D), allowing it to blend seamlessly into your living space. The weight of 96.7 pounds underscores the robust construction and quality materials that embody this speaker.

Precision-Engineered Driver Configuration

Tweeter: 1” Diamond Coated Tweeter
Midrange Drivers: Dual 5.25” Composite glass-fiber cone
Woofers: Quad 8” Composite glass-fiber cone

At the heart of the SVS Ultra Evolution Pinnacle is a driver configuration that is meticulously engineered for unparalleled sound reproduction. The 1” diamond-coated tweeter ensures crisp, detailed highs, while the dual 5.25” midrange drivers deliver clear, accurate vocals and instruments. The quad 8” woofers provide a powerful, deep bass that can be both felt and heard.

Advanced Crossover Design for Coherent Sound

Tweeter-to-Midrange Crossover: 1.8 kHz
Midrange-to-Woofer Crossover: 140 Hz

The sophisticated crossover design of the SVS Ultra Evolution Pinnacle ensures a seamless transition between drivers, giving you a coherent and balanced soundstage. The precision of these crossovers results in a lifelike audio experience that will captivate you with every note.

A Cabinet That Resonates with Innovation

Acoustic Centering: Time Alignment Architecture

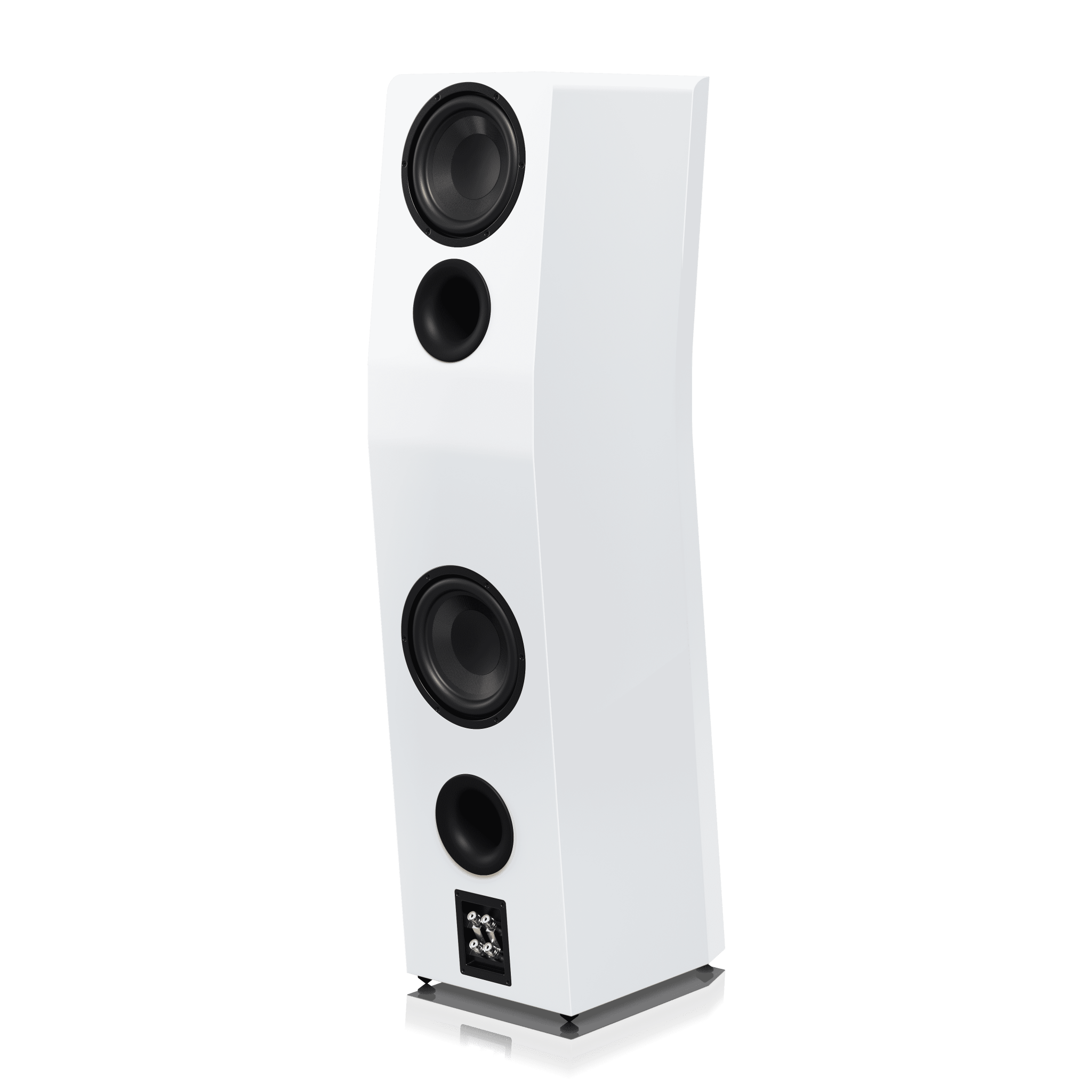

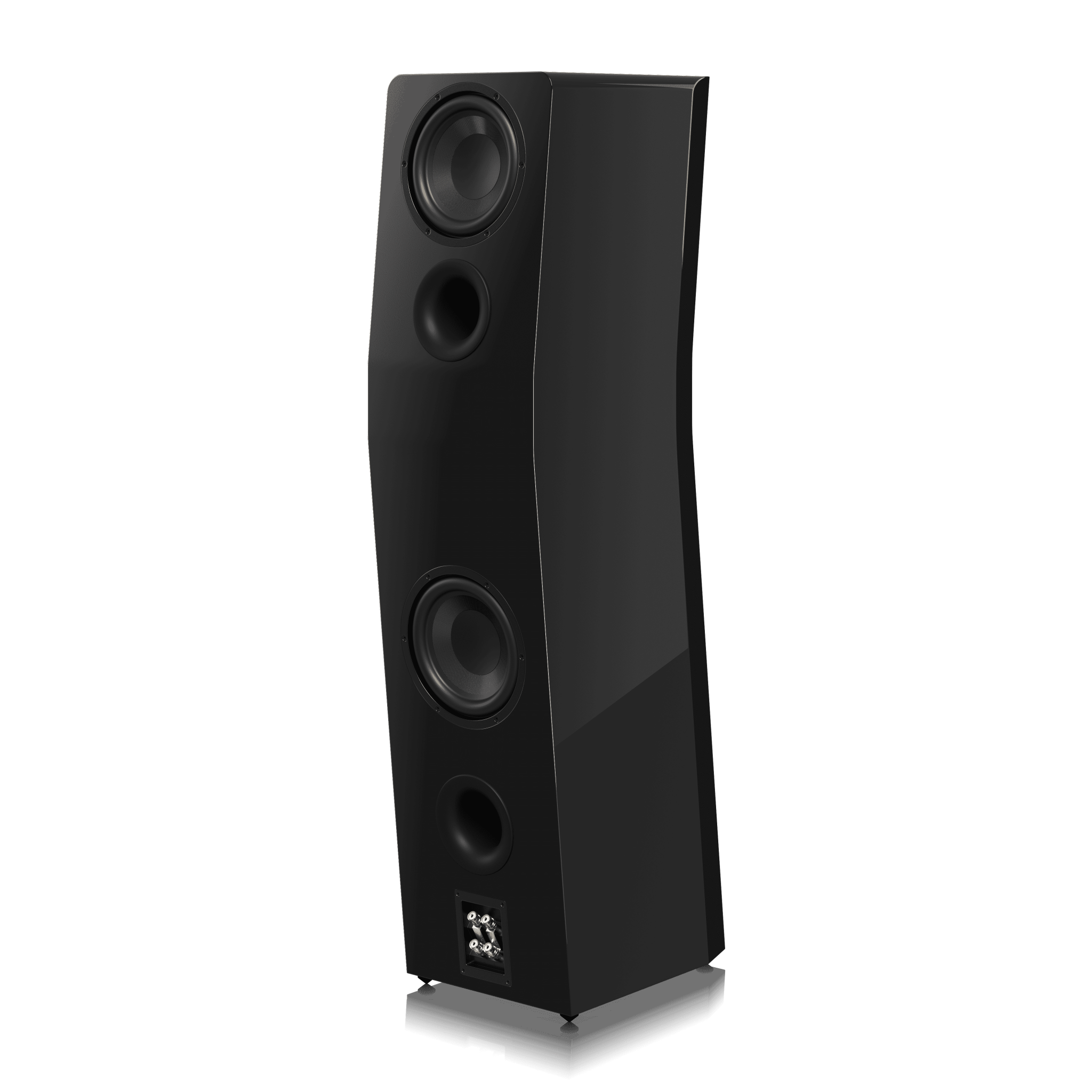

Driver Array: Quad 8” woofers in Force-Balanced Opposed Array
Cabinet Construction: FEA-optimized ¾” (18mm) with extensive bracing and insulation

The cabinet of the SVS Ultra Evolution Pinnacle is not just a housing for its drivers; it's an integral part of the speaker's acoustic performance. The time alignment architecture ensures that sound reaches your ears in perfect synchrony, while the force-balanced opposed array eliminates unwanted vibrations for a cleaner sound.

Next-Level Features for Audiophile Performance

Dual gold-plated 5-way binding posts

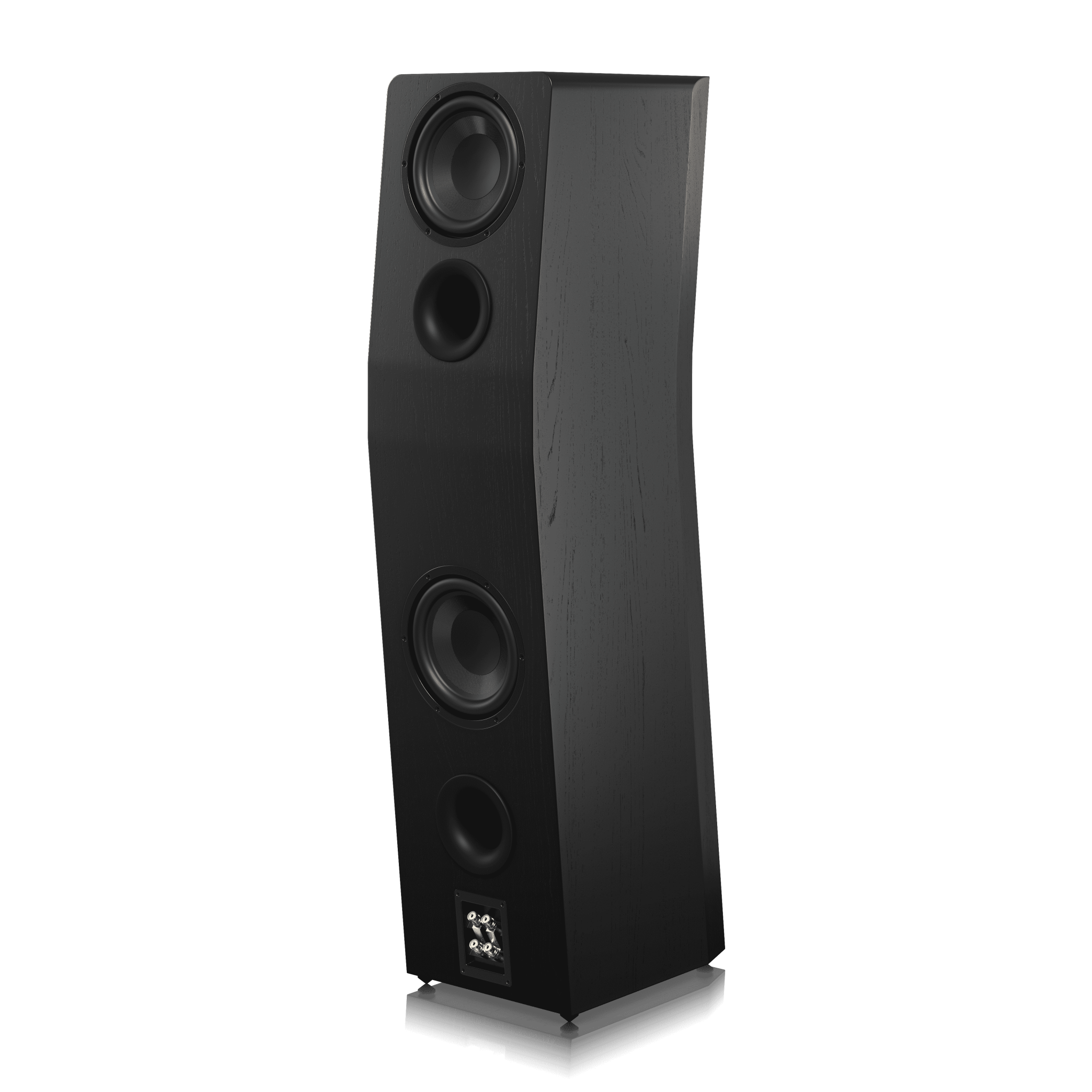

Dual 3” wide-flared rear-firing ports

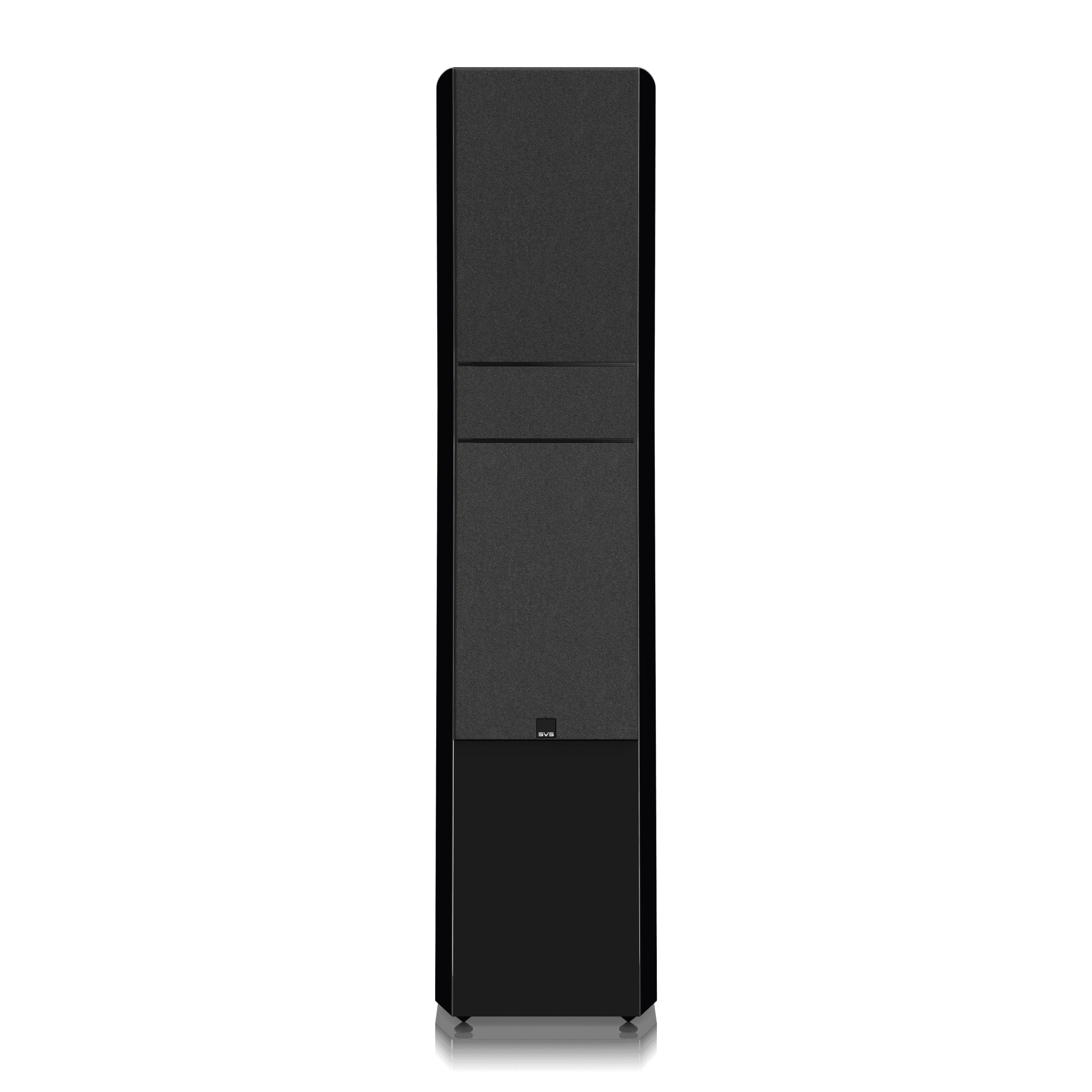

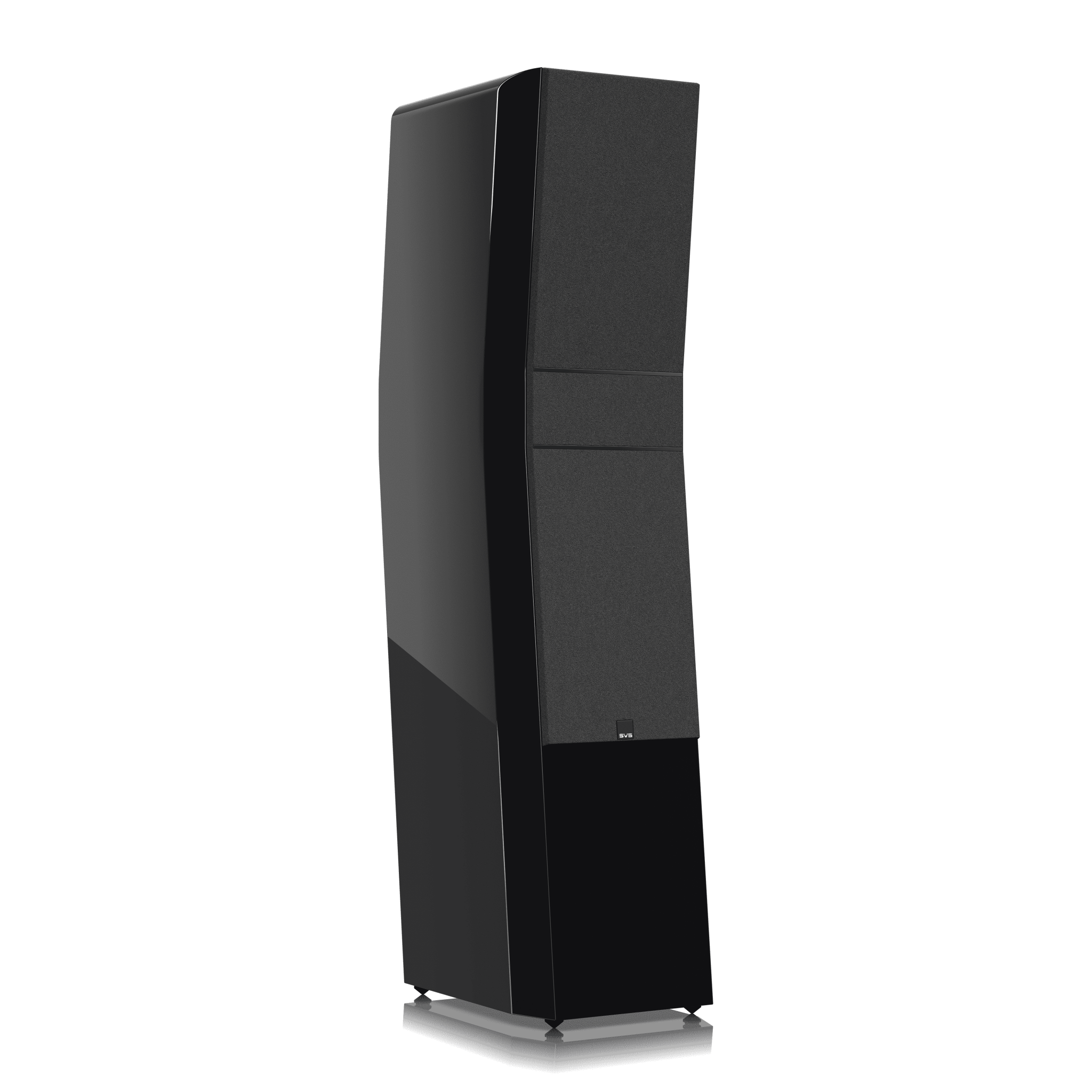

Cloth grille with magnetic retention system
Adjustable feet for perfect leveling

The SVS Ultra Evolution Pinnacle is replete with features that enhance your listening experience. The dual binding posts allow for bi-wiring or bi-amping, giving you more options to tailor the sound to your preferences. The rear-firing ports contribute to the speaker's impressive bass response, and the magnetic grille adds a touch of elegance while being practical.

Immersive Sound Technologies

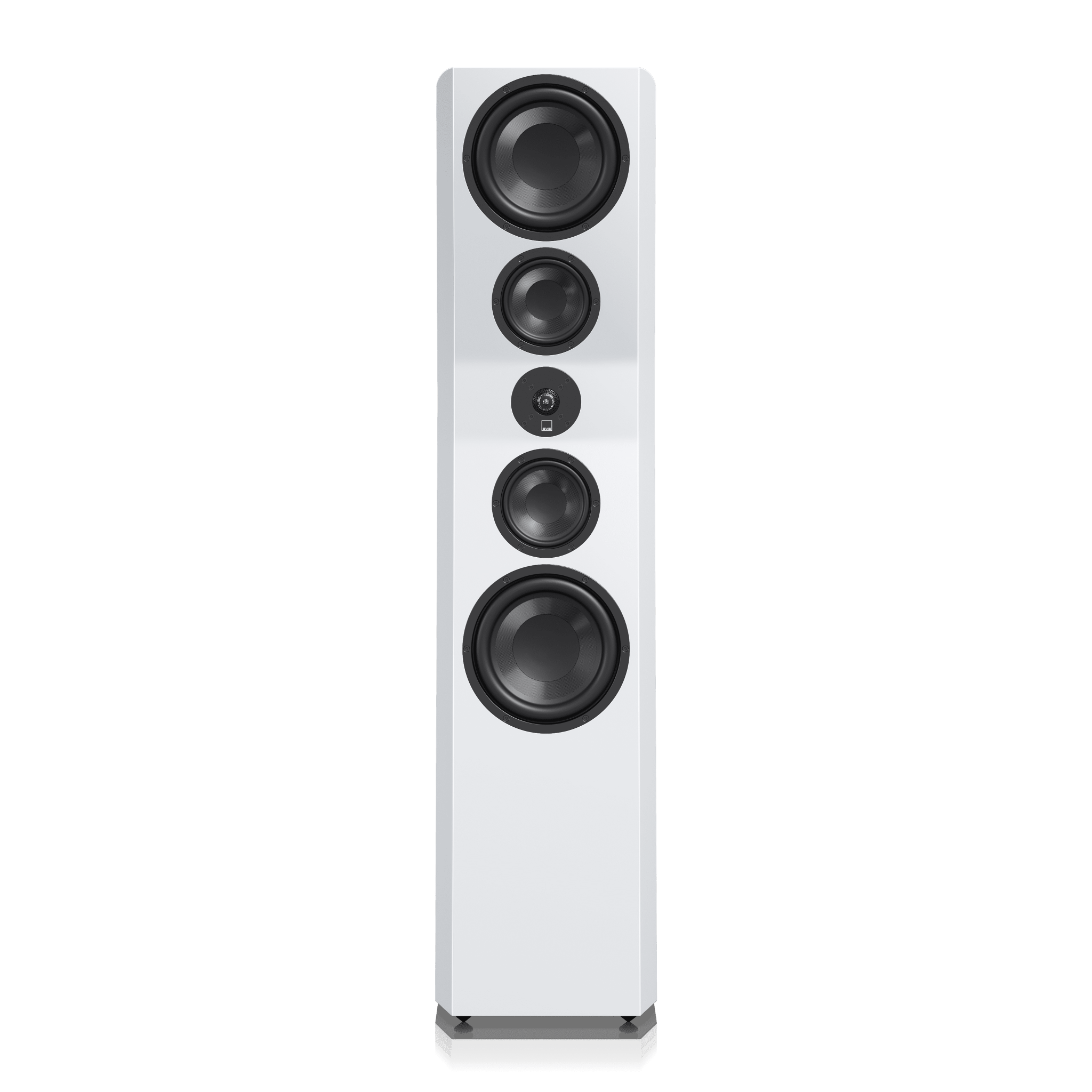

WMTMW Array: Improved tweeter positioning for imaging abilities
Force Cancelling Bass Alignment: Deep, controlled low-frequency response
Ground-Bounce Cancellation: Smooth low-frequency performance
Diamond-Coated Tweeter: Enhanced high-frequency behavior

The SVS Ultra Evolution Pinnacle incorporates cutting-edge sound technologies to deliver an immersive audio experience. The WMTMW array enhances the positioning of the tweeter for precise imaging, while the force cancelling bass alignment ensures a deep and controlled low-frequency response without distortion.

Pros: The Pinnacle of Sound

Powerful Bass: The quad 8” bass drivers deliver an earth-shaking performance that will satisfy even the most demanding bass enthusiast.
Detailed Imaging: The WMTMW array ensures that the soundstage is wide and precise, giving you an immersive listening experience.
Controlled Low Frequencies: The force cancelling bass alignment and rear-mounted ports work in tandem to deliver deep, yet controlled bass.
Smooth Response: The ground-bounce cancellation design ensures that low frequencies are smooth and free from room-induced distortions.
Crystal Clear Highs: The diamond-coated tweeter, with its organic cell lattice diffuser, offers exceptional high-frequency clarity and detail.

Finish Options to Complement Your Decor

The SVS Ultra Evolution Pinnacle is available in stunning finish options to match your personal style:

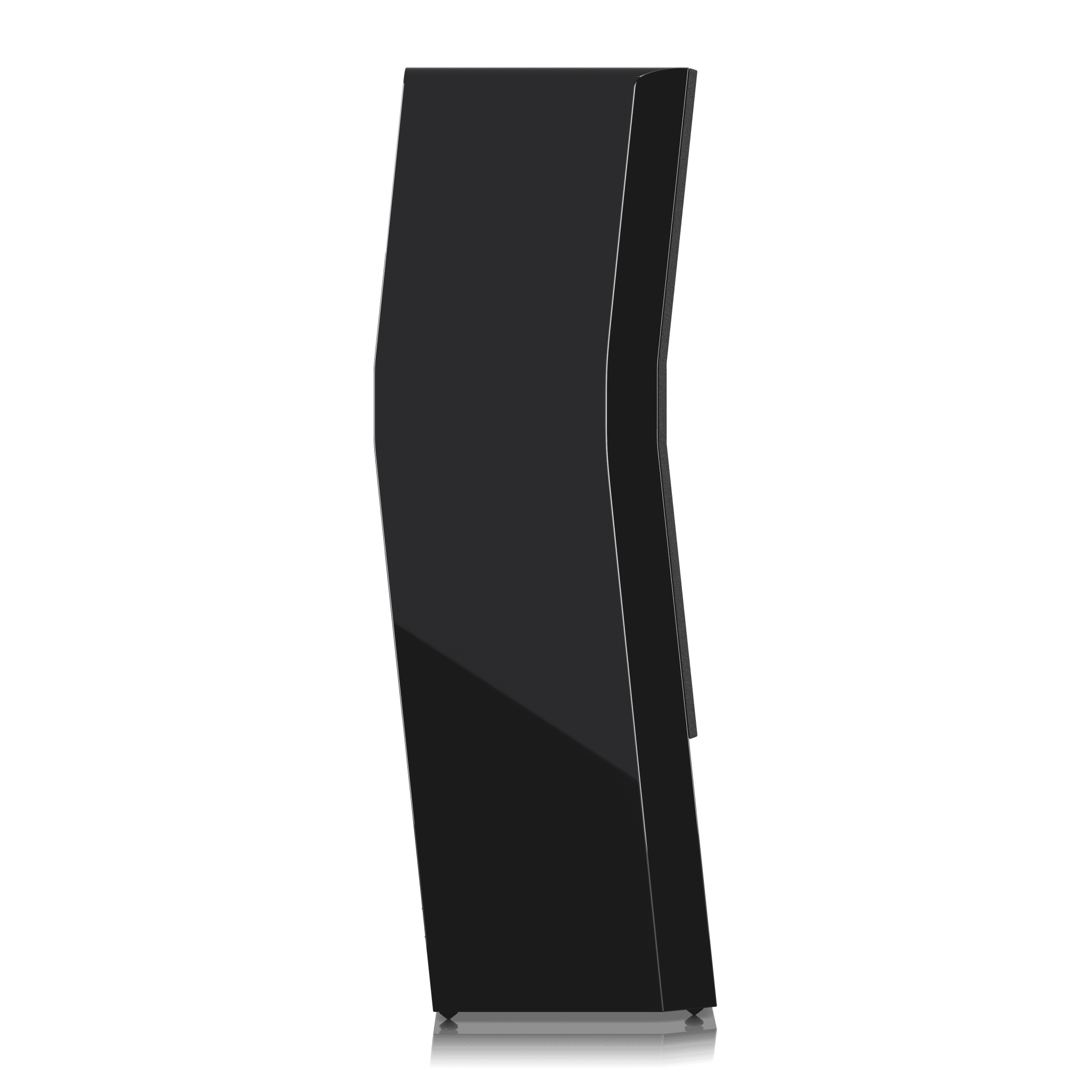

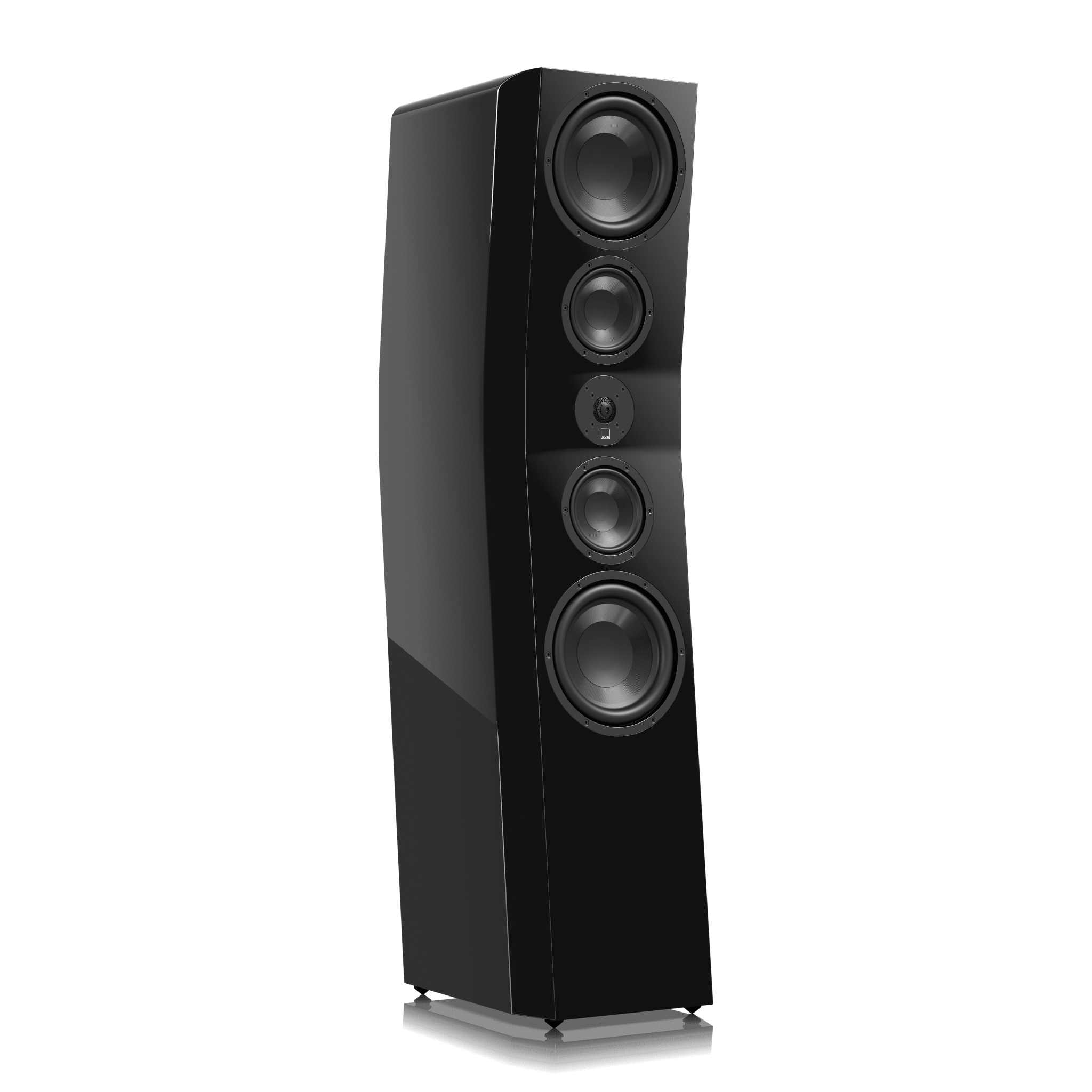

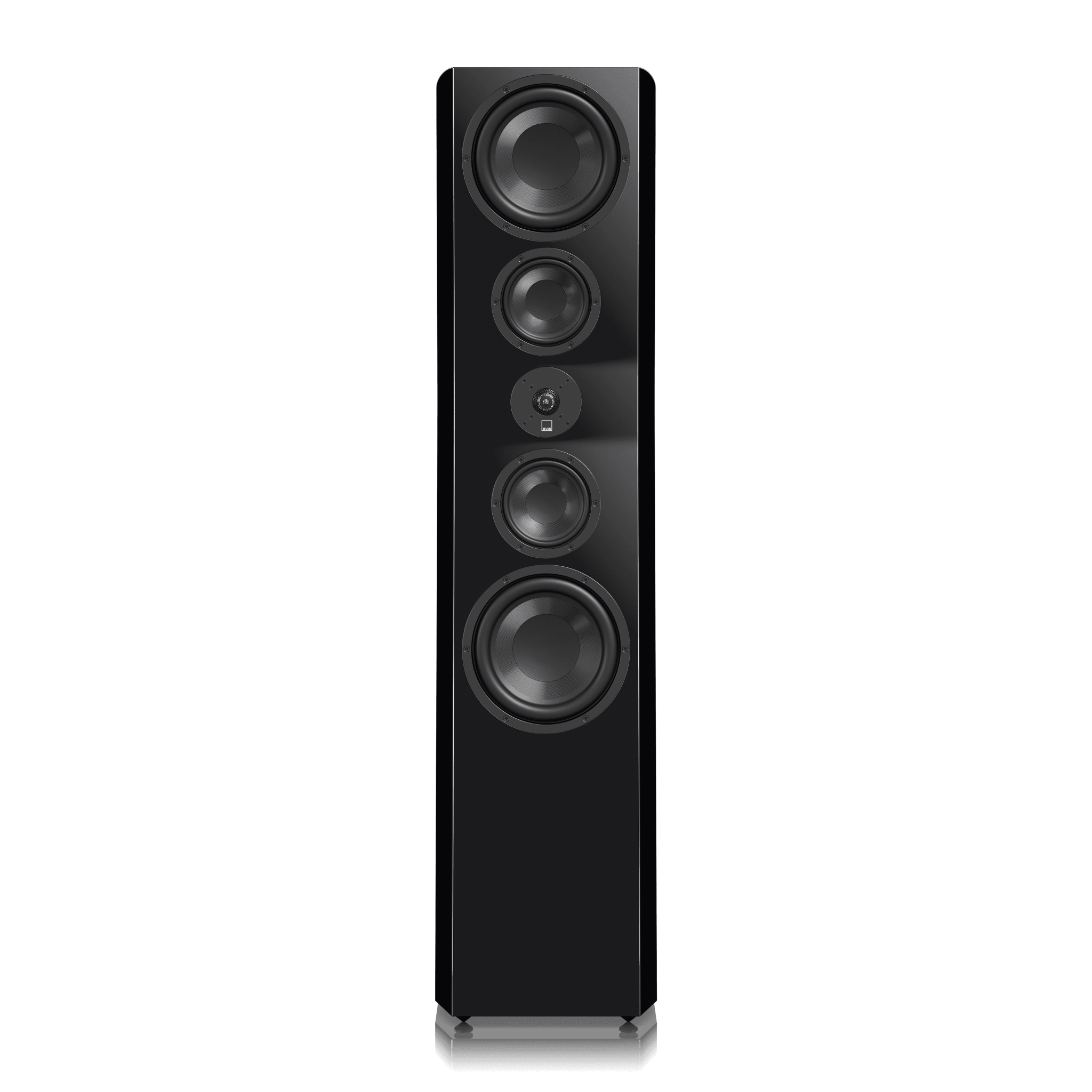

Piano Gloss Black

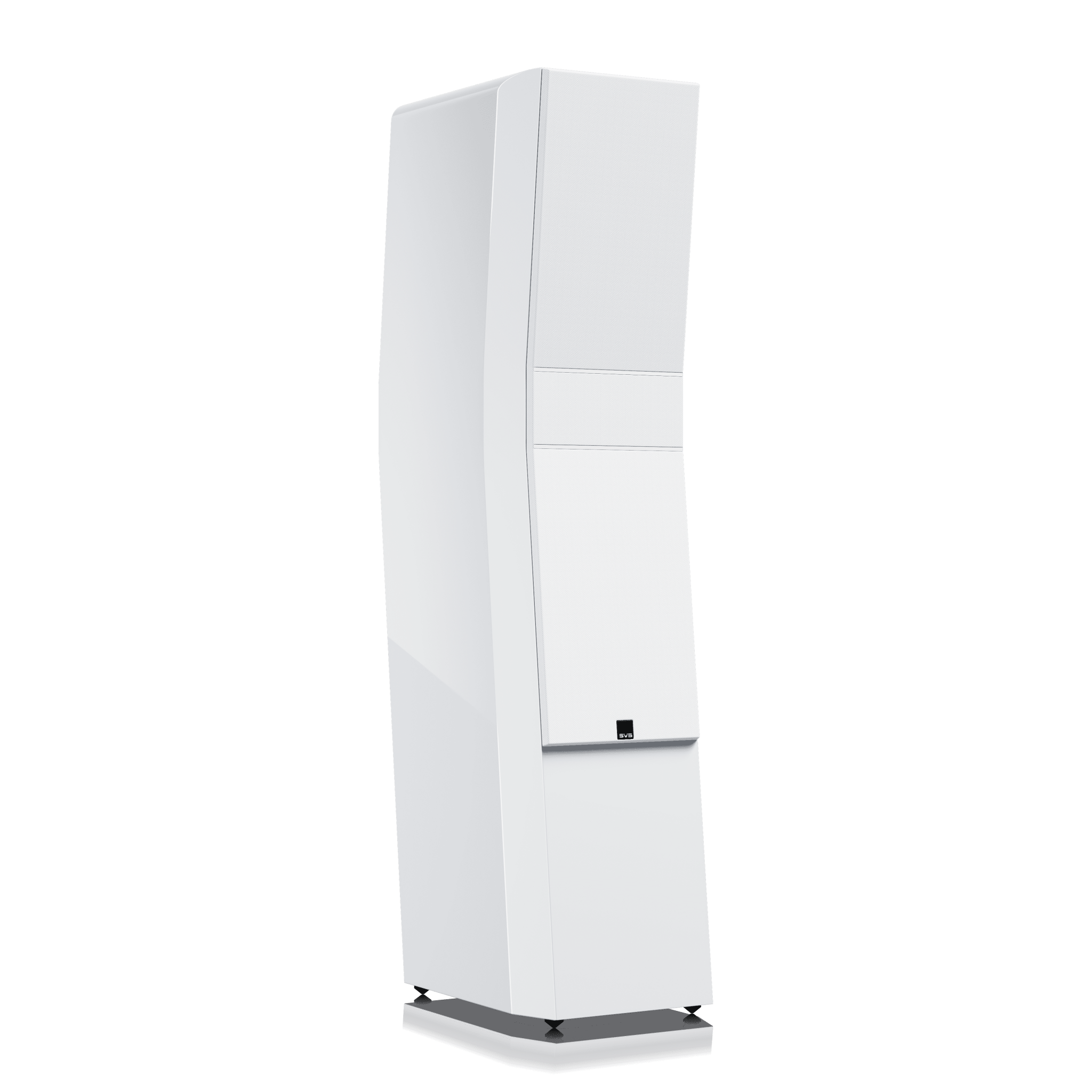

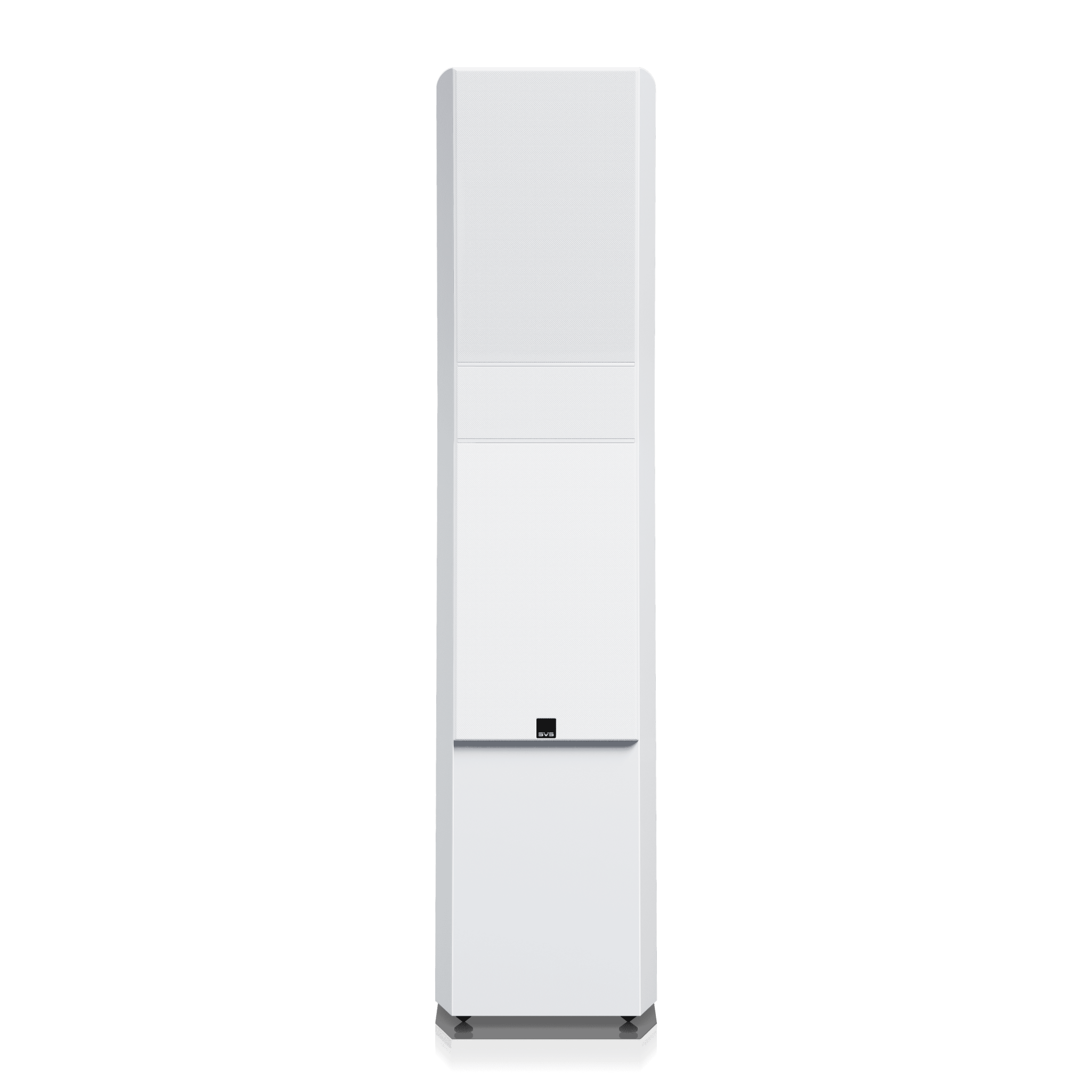

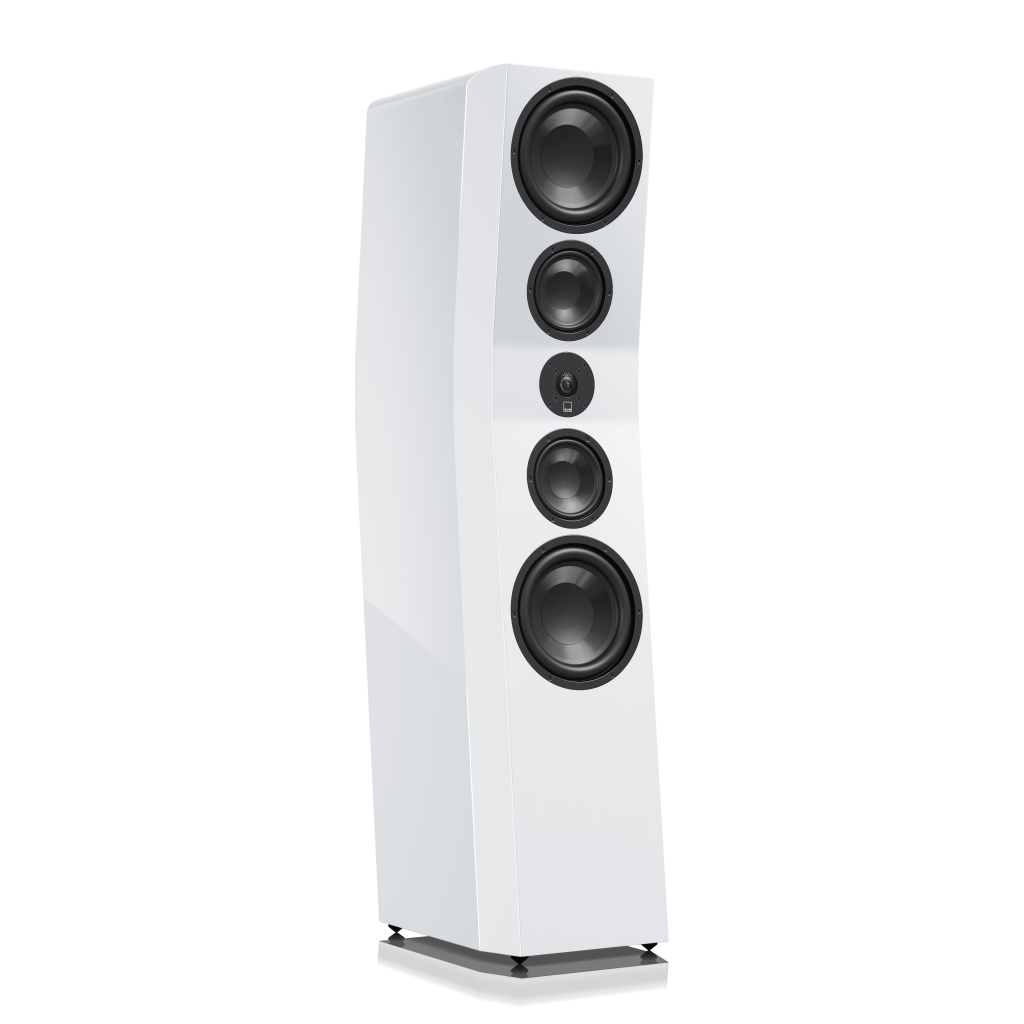

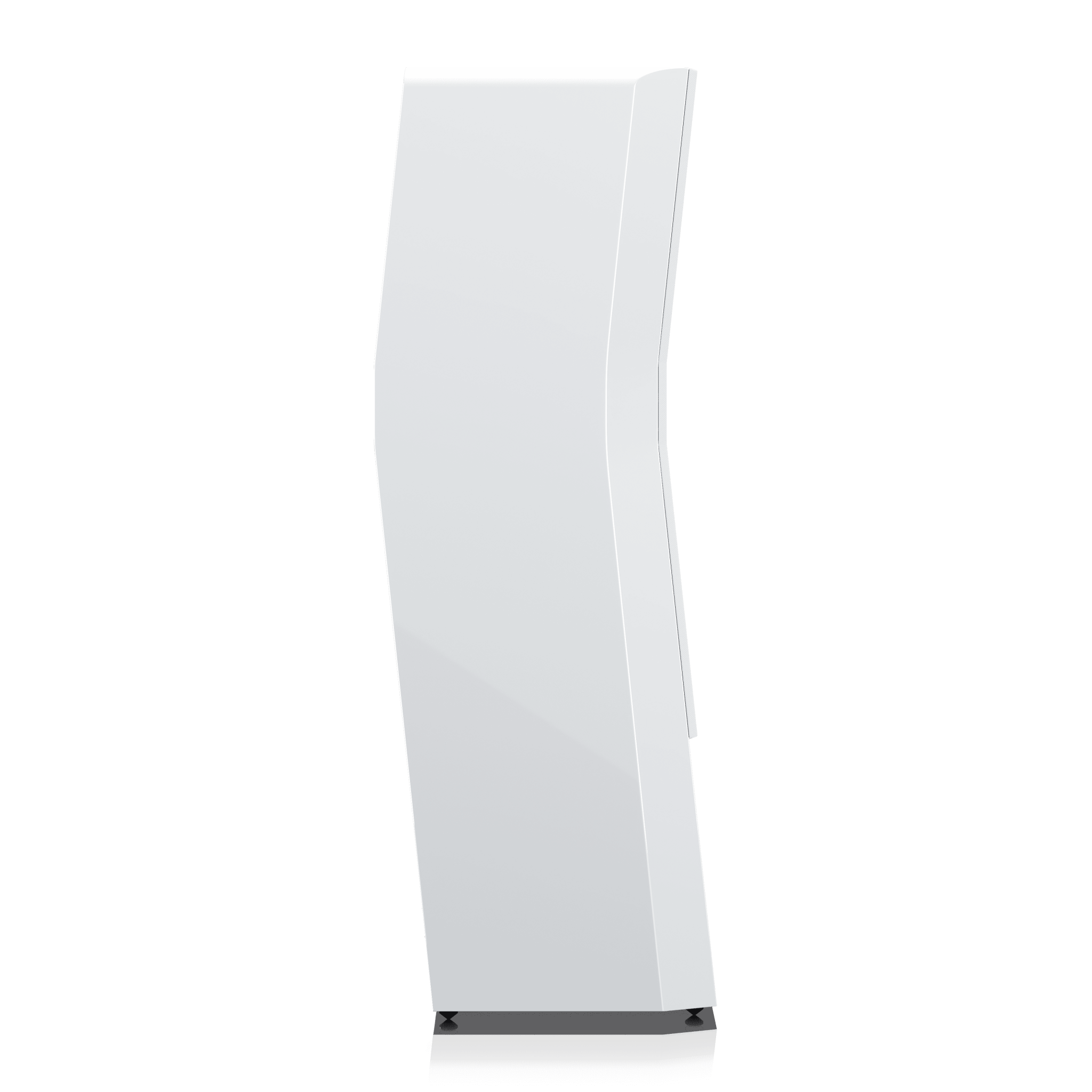

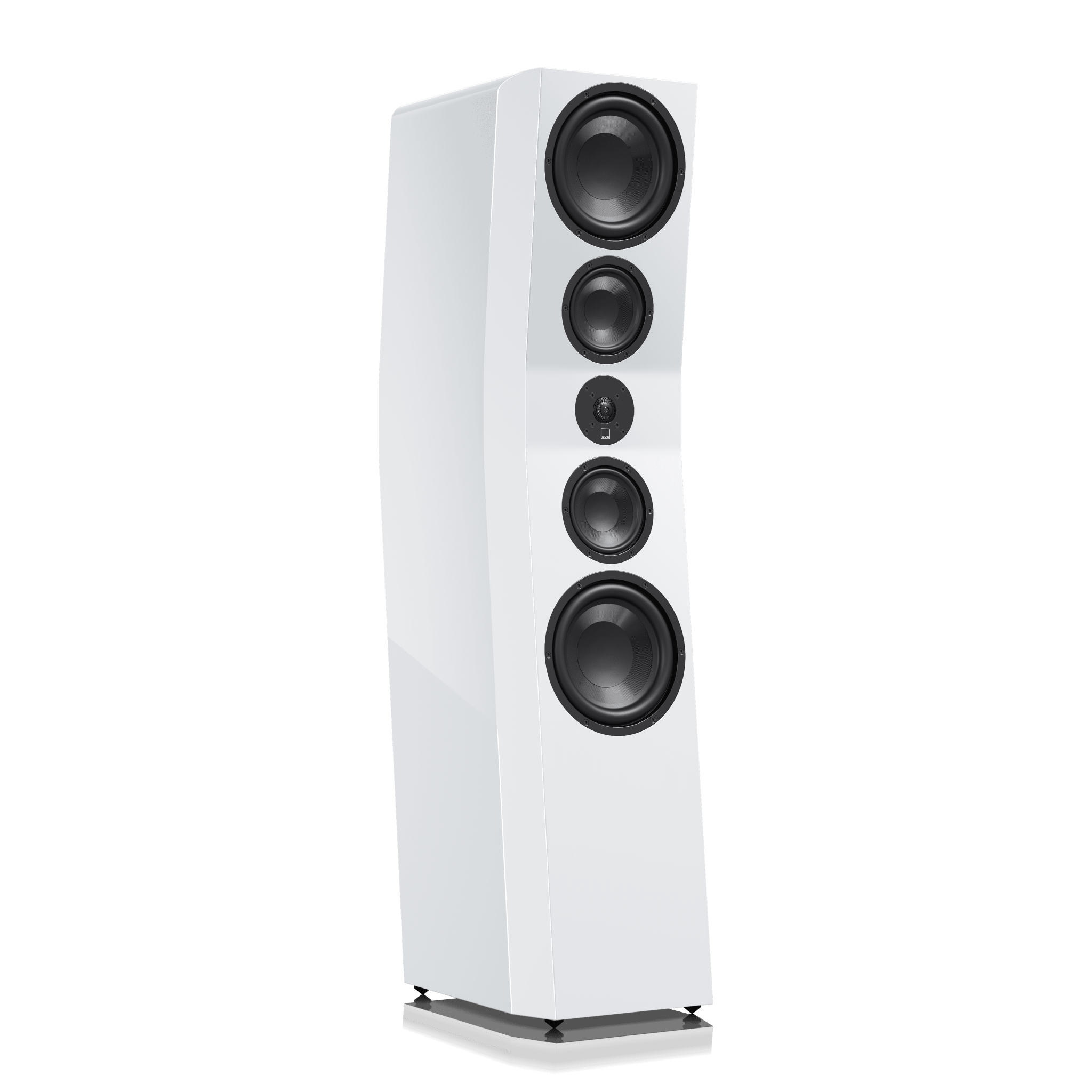

Piano Gloss White

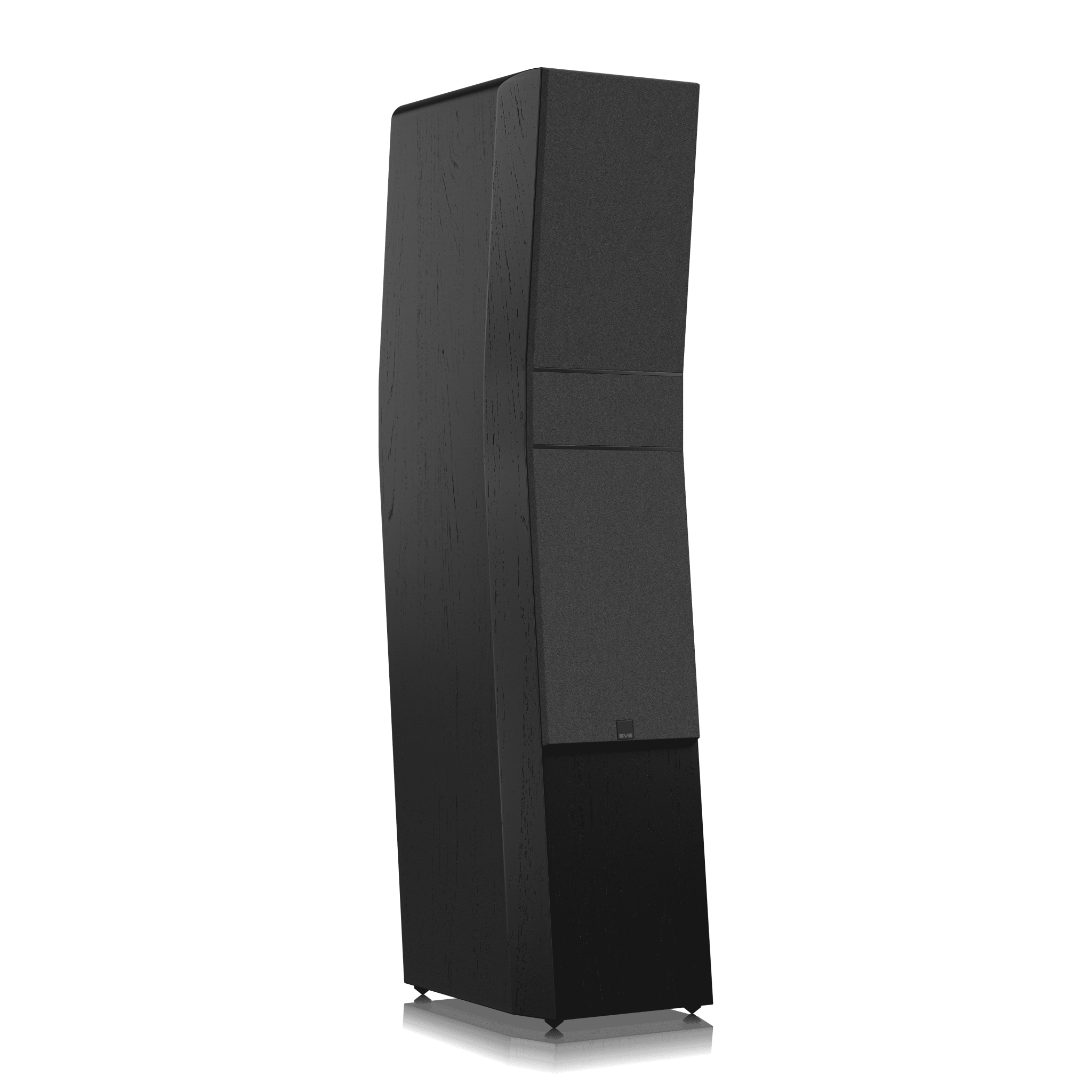

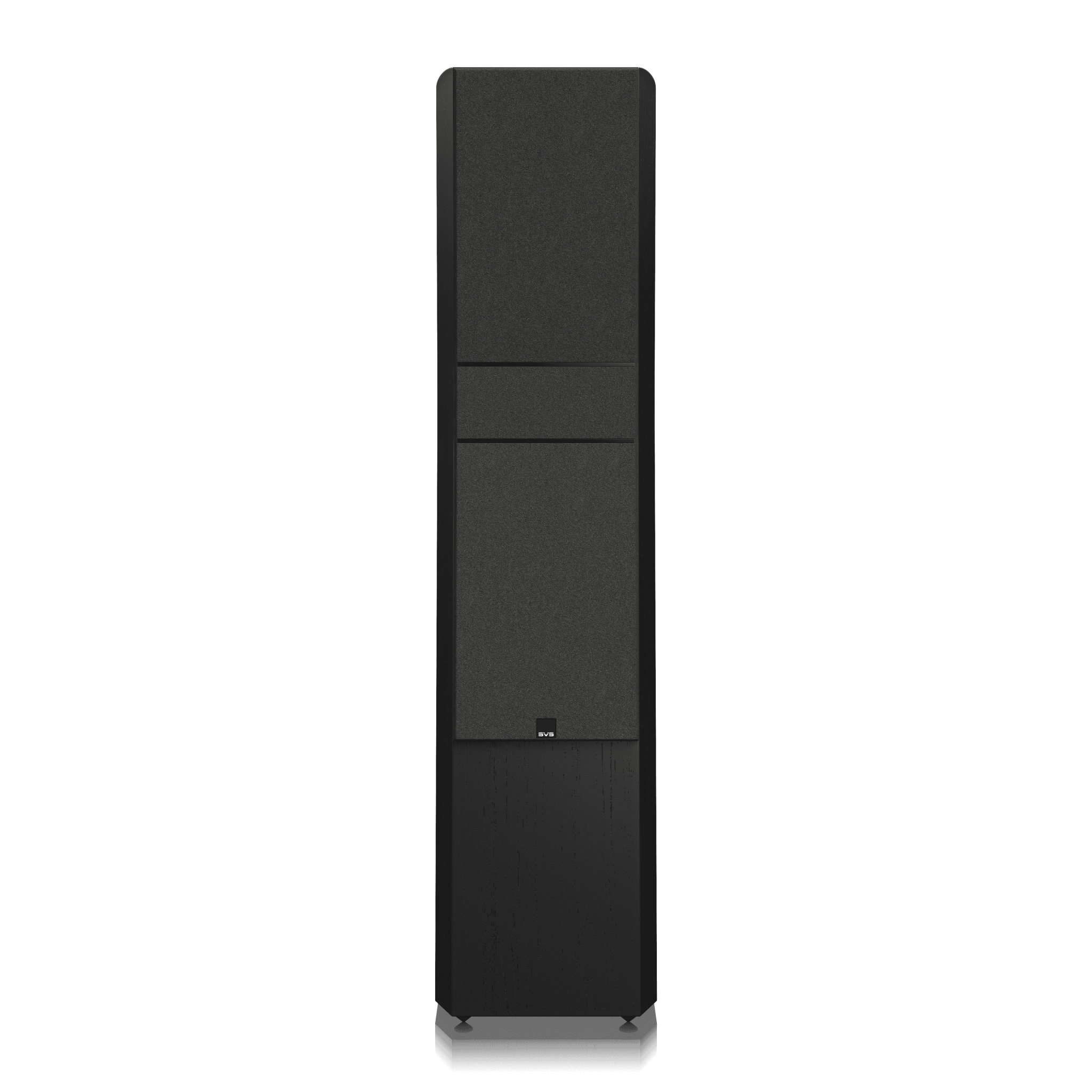

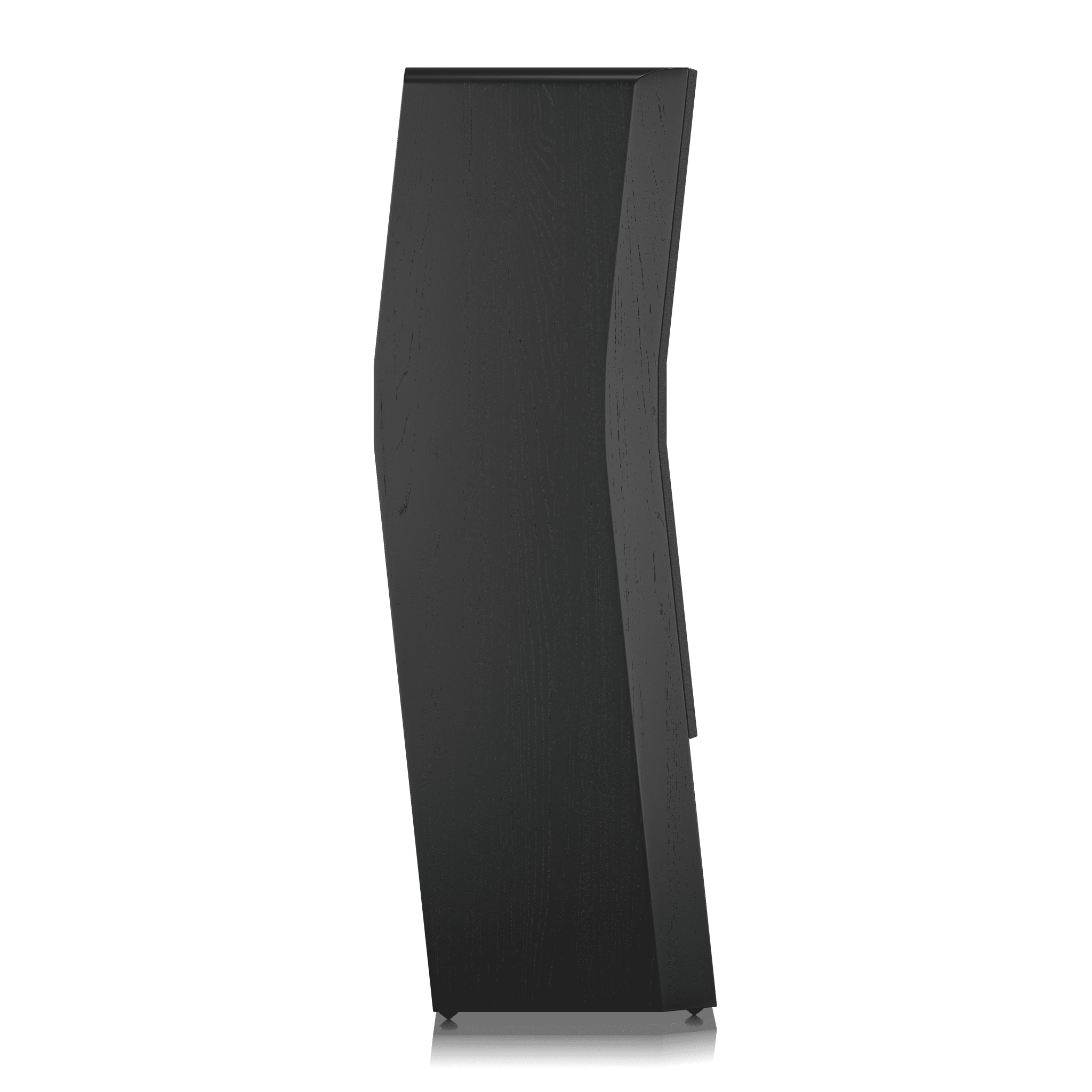

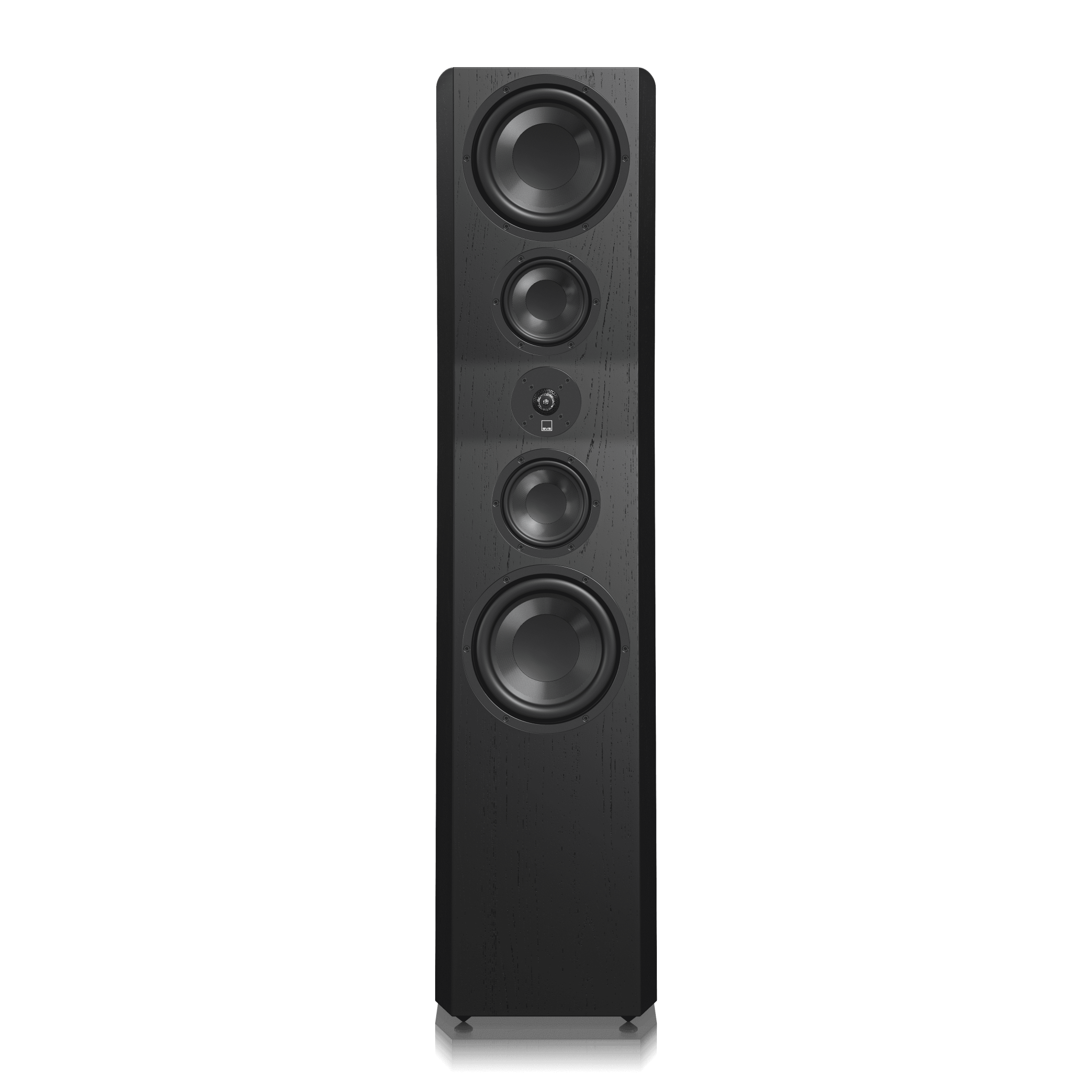

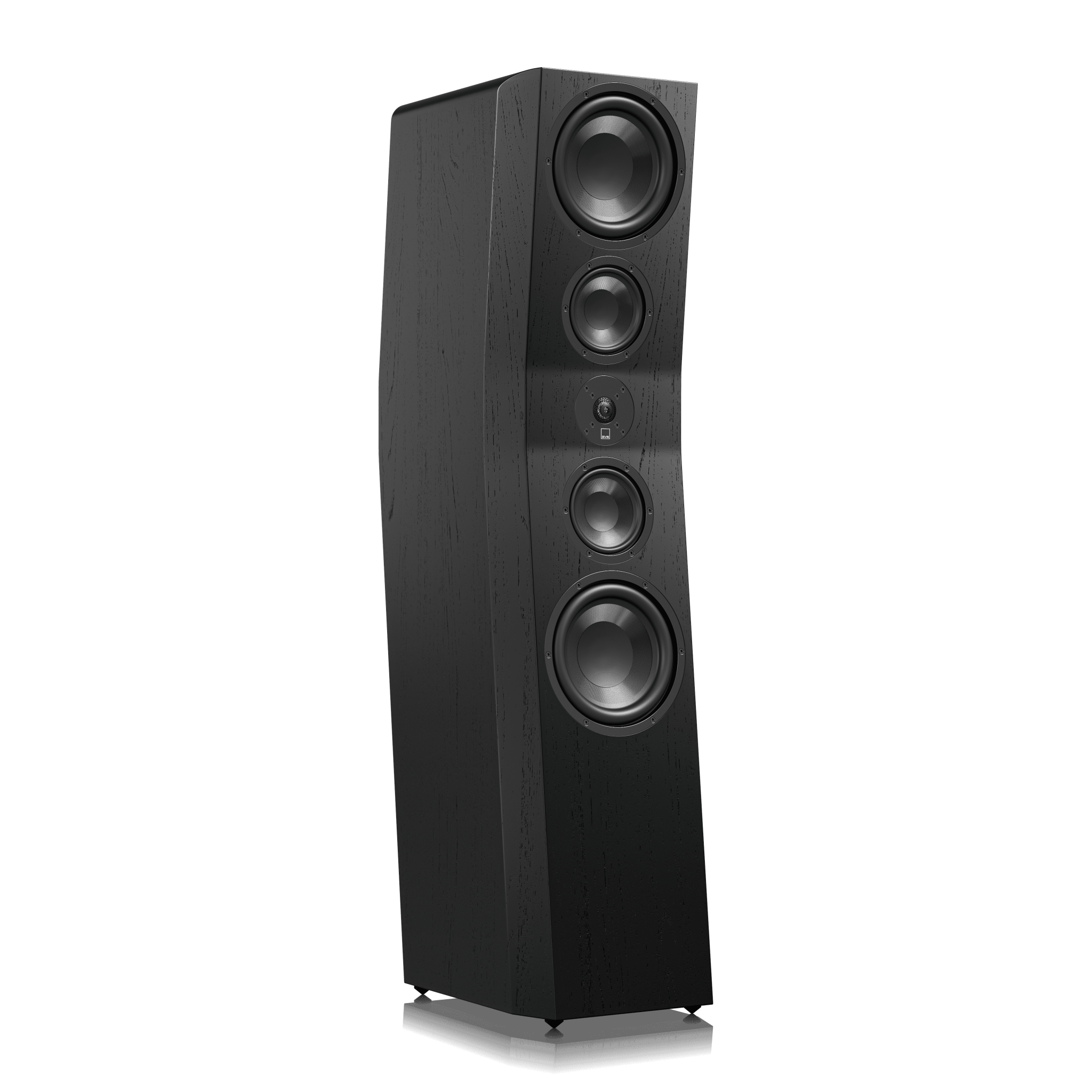

Real Black Oak Veneer

Choose the finish that best suits your home theater or listening room and let the SVS Ultra Evolution Pinnacle be the centerpiece of your audio setup.

Dreamedia: Custom-Designed Home Theater Expertise

At Dreamedia, we understand the importance of a perfectly tailored home theater system. Our experts are on hand to design and install a system that incorporates the SVS Ultra Evolution Pinnacle Speaker, ensuring that you get the most out of this extraordinary product. We are dedicated to providing you with a listening experience that exceeds your expectations.

Experience the SVS Ultra Evolution Pinnacle Speaker Today

The SVS Ultra Evolution Pinnacle Speaker is more than just a high-fidelity loudspeaker; it's a gateway to experiencing your music and movies as the creators intended. With its superior sound quality, elegant design, and advanced features, the Ultra Evolution Pinnacle is poised to be the pinnacle of your audio system.

Embrace the ultimate in acoustic performance with the SVS Ultra Evolution Pinnacle Speaker. Contact Dreamedia today to design your home theater system around this exceptional loudspeaker and prepare to be enveloped in a world of sonic bliss.

Elevate the auditory experience with the SVS Ultra Evolution Pinnacle Speaker; a symphony of precision engineering meets auditory elegance, delivering deep, room-filling bass and pristine, high-frequency clarity.

Our Review

Introduction

SVS is a brand synonymous with high-caliber audio performance, often revered by audiophiles and home theater enthusiasts alike. The SVS Ultra Evolution Pinnacle Speaker is a testament to the company's commitment to excellence, representing a pinnacle in floor-standing tower loudspeaker design. Aimed at the discerning listener, this speaker is engineered to deliver an uncompromising audio experience, blending sophisticated technology with robust construction.

Design and Build Quality

The SVS Ultra Evolution Pinnacle Speaker boasts a commanding presence, with a tall and imposing stature that is both visually striking and purposeful in its acoustic design. The craftsmanship is evident in the high-quality materials and finishes, ensuring that the speaker is not only an auditory centerpiece but also a visual highlight in any room. The daunting weight of nearly 97 pounds underscores a build that prioritizes stability and resonance control, although it does necessitate consideration in terms of placement and the ability to accommodate its footprint within a listening space.

Sound Quality

Bass Performance

The speaker's four 8” bass drivers are a force to be reckoned with, delivering powerful and deep bass that can fill even large rooms with ease. The force cancelling bass alignment, complemented by dual rear-mounted ports, not only allows for substantial low-frequency extension but also maintains control and precision, preventing unwanted distortion and boominess. Ground-Bounce Cancellation technology further refines the bass response, ensuring a smooth and consistent low-frequency output irrespective of room placement.

Midrange Clarity

Midrange frequencies benefit from the dedicated 5.25” glass-fiber composite drivers, designed to render vocals and instruments with clarity and nuance. The speaker's ability to articulate the subtleties in music is impressive, with a natural and coherent midrange that serves as the foundation of a well-balanced sound profile.

High-Frequency Reproduction

The 1” diamond-coated tweeter is a highlight, delivering pristine high frequencies that are detailed without being harsh. The 'Organic Cell Lattice Diffuser' is engineered to optimize high-frequency dispersion and phase alignment, creating an airy and open treble range that complements the overall sound signature of the speaker.

Imaging and Soundstage

The WMTMW array is central to the speaker's exceptional imaging capabilities. This design ensures that high and mid frequencies are precisely positioned for optimal soundstage width and depth, allowing for a holographic audio experience where each instrument and voice is localized with pinpoint accuracy within the three-dimensional space.

Frequency Response and Dynamics

With a frequency response ranging from 24Hz to 40kHz, the SVS Ultra Evolution Pinnacle can reproduce the full spectrum of audible sounds and beyond, ensuring that high-resolution audio files are rendered with all their subtleties intact. The speaker's dynamic prowess is equally noteworthy, capable of handling the ebb and flow of complex musical passages and the demanding peaks of cinematic scores.

Technical Specifications

Diving into the technical aspects, the 6-ohm impedance and 88dB sensitivity suggest that while the speaker is relatively efficient, it will benefit from a quality amplifier capable of delivering between 20 to 300 watts of power. This range allows for both modest and high-powered setups to drive the speaker effectively, ensuring compatibility with a wide array of audio systems.

Features and Technologies

Beyond its acoustic performance, the speaker incorporates a variety of features that enhance the listening experience. The time-aligned cabinet geometry is designed to ensure that sound from each driver reaches the listener in sync, creating a cohesive and integrated audio profile. The acoustically optimized cabinet minimizes internal standing waves and reflections, further contributing to the speaker's precise and articulate output.

User Experience

Setting up the SVS Ultra Evolution Pinnacle is straightforward, though its size and weight may require assistance. Once in place, users will find that the speaker integrates well with both stereo and multi-channel systems, delivering an immersive and impactful performance regardless of the audio source.

Pros and Cons

The strengths of the SVS Ultra Evolution Pinnacle are numerous, with its robust bass performance, precise imaging, and exceptional high-frequency reproduction standing out. However, the speaker's physical demands may pose a challenge for those with limited space or who prefer a more unobtrusive audio setup.

Comparisons with Competitors

In comparison to its peers, the SVS Ultra Evolution Pinnacle holds its own, offering a compelling combination of power, precision, and refinement. While there are other high-end speakers in the market, the unique technology and design elements of this SVS model differentiate it in a crowded field, often tipping the scales in its favor for consumers seeking both acoustic performance and aesthetic appeal.

Final Thoughts

The SVS Ultra Evolution Pinnacle Speaker is a formidable offering for anyone looking to elevate their listening experience. Its blend of sophisticated design, advanced technology, and exemplary sound performance makes it a strong contender in the high-end speaker market. For those with the space to accommodate it and the desire for audio excellence, the SVS Ultra Evolution Pinnacle is a choice well worth considering.

Specifications

General Specifications

Speaker Type: Floor-standing Tower Loudspeaker
Frequency Response: 24Hz to 40kHz (+/-3 dB)
Nominal Impedance: 6 ohms
Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
Recommended Amplifier Power: 20 – 300 watts
Cabinet Dimensions: 49.61” (H) x 11.81” (W) x 18.14” (D) / 1260mm (H) x 300mm (W) x 460.7mm (D)
Overall Dimensions: 50.2” (H) x 11.81” (W) x 18.14” (D) / 1275mm (H) x 300mm (W) x 460.7mm (D)
Weight (Unboxed): 96.7 pounds / 43.9 kgs
Weight (Packaged): 110.8 pounds / 50.3 kgs
Finish Options: Piano Gloss Black, Piano Gloss White, Real Black Oak Veneer

Driver Specifications

Tweeter: 1” Diamond Coated Tweeter
Midrange Drivers: 5.25” Composite glass-fiber cone
Woofers: 8” Composite glass-fiber cone

Crossover Specifications

Tweeter-to-Midrange Crossover: 1.8 kHz
Midrange-to-Woofer Crossover: 140 Hz

Cabinet Features

Acoustically Centered Time Alignment Architecture: Yes
Driver Array: Quad 8” woofers in Force-Balanced Opposed Array, Dual 5.25” midrange drivers
Front Baffle: Chamfered
Driver Baffles Thickness: 1” (25mm)
Cabinet Construction: FEA-optimized ¾” (18mm)
Bracing and Insulation: Extensive

Additional Features

Binding Posts: Dual gold-plated 5-way
Rear-Firing Ports: Dual 3” wide-flared
Grille: Cloth with magnetic retention system
Feet: Elastomer screw-in adjustable for level, Spiked metal screw-in adjustable for level
Magnetic Grilles: Neodymium
