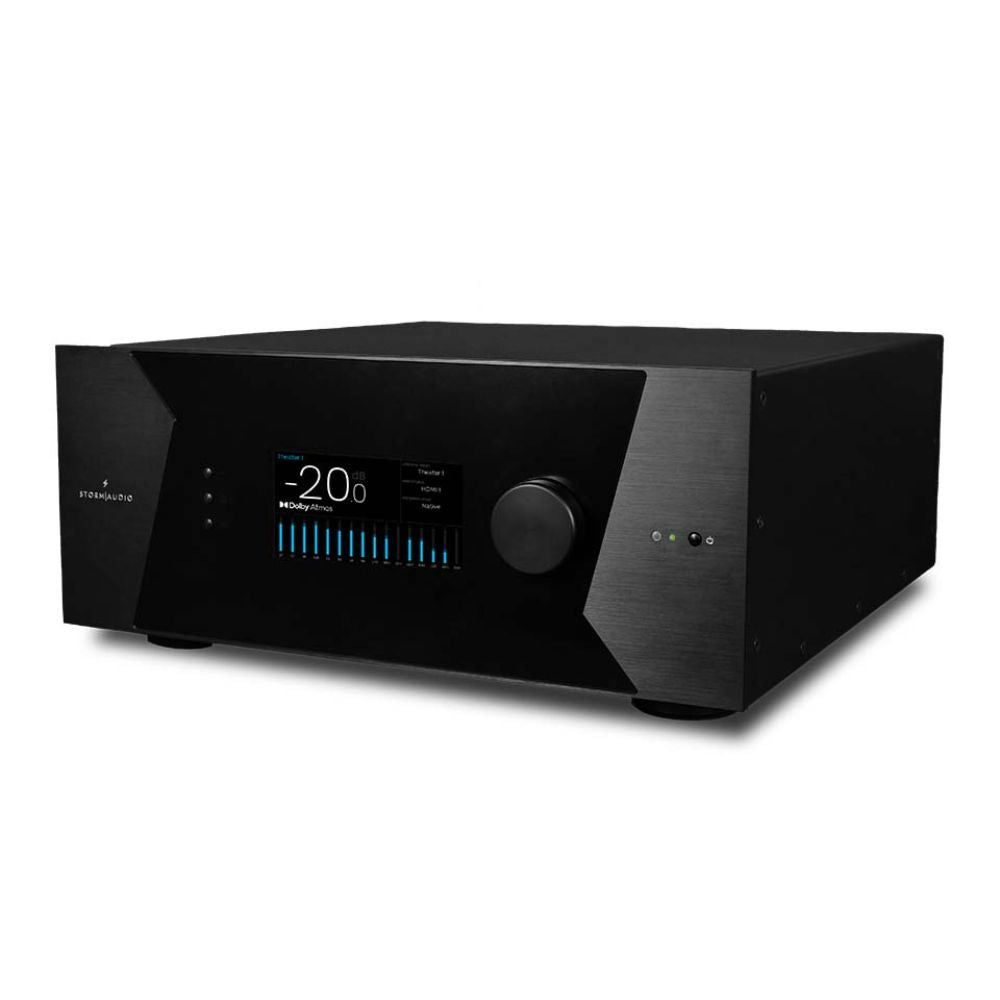

StormAudio - ISR Fusion 20

Immersive Sound Receiver

$19,999.00

by StormAudio
Free Shipping Nationwide

You bought the tech, we’ll cover the rest. We will ship your product free to your door anywhere in the U.S.

NO HASSLE 30 DAYS RETURN

Not happy with an item? No sweat, you have 30 days to return it without any hassle!

PRICE ASSURANCE

We will always work to get you the best available price across all authorized dealers.

DREAM TEAM

Let our experts help make your audio/visual dreams come true!

PREFERRED INSTALLERS

We have a large group of installers across the US. Let us help you find a preferred installer in your area.

This is a Dreamedia+ product which includes white glove service, professional setup and calibration. Due to the complexities of the this product we would like to schedule a free video consultation for you and Dreamedia specialist. This will ensure it is the proper selection for your space, equipment and budget. Don’t forget that we can assist with crating a complete home cinema design! We offer acoustic analysis, seating charts, screen size, equipment lists, system design, renderings, and even 3D flythrough animations. Let our DREAM team bring your vision to LIFE!

Based on the award-winning ISP Elite MK3 platform, the Immersive Sound Receiver Fusion 20 is a 20-channels processor integrating 16 channels of the latest Edge amplification technology from Danish based ICE Power, exhibiting extremely low noise and distortion levels with 150W (8ohm) per channel, and up to 500W (8ohm) when bridged.

Call or chat with a specialist to learn more. Same day shipping available*

Overview

We're proud to be an authorized dealer of StormAudio

This unique receiver in the market has the DSP power to decode all the latest immersive formats (Auro-3D, Dolby Atmos, DTS:X Pro, and IMAX Enhanced), and enable post-processing to optimize any speaker to any room straight out of the box. It includes the highest precision implementation of Dirac Live Active Room Treatment for easy and accurate room calibration, supports additionally up to 20 PEQs per channel and can drive up to four-way active crossovers and any number of subwoofers.

Based on the ISP Elite MK3 design, it delivers the same audio performance thanks to StormAudio proprietary analog/digital hybrid volume adjustment that maximizes the dynamic range for a more accurate, detailed, and dynamic reproduction of your movie soundtrack or your music playlists, perfectly rendered by the ICE Power amplification.

The ISR Fusion 20 has a fixed architecture, but the upgradeability of the HDMI board remains possible whenever new upgrades are released. It currently supports HDMI2.1a/HDCP2.3 up to 8K/4K120 with HDR10+, HLG and Dolby Vision as well as ARC/eARC. This receiver can be easily controlled by a variety of tools, ranging from the included IR remote control to home automation systems or the Android/iOS app available on smartphones or tablets. Our credo is to engineer high-performing products that are simple to use and easy to set up for the customer; the ISR Fusion 20 is no exception, it comes with StormAudio’s intuitive User Interface and user-friendly Speaker Configurator.

Specs

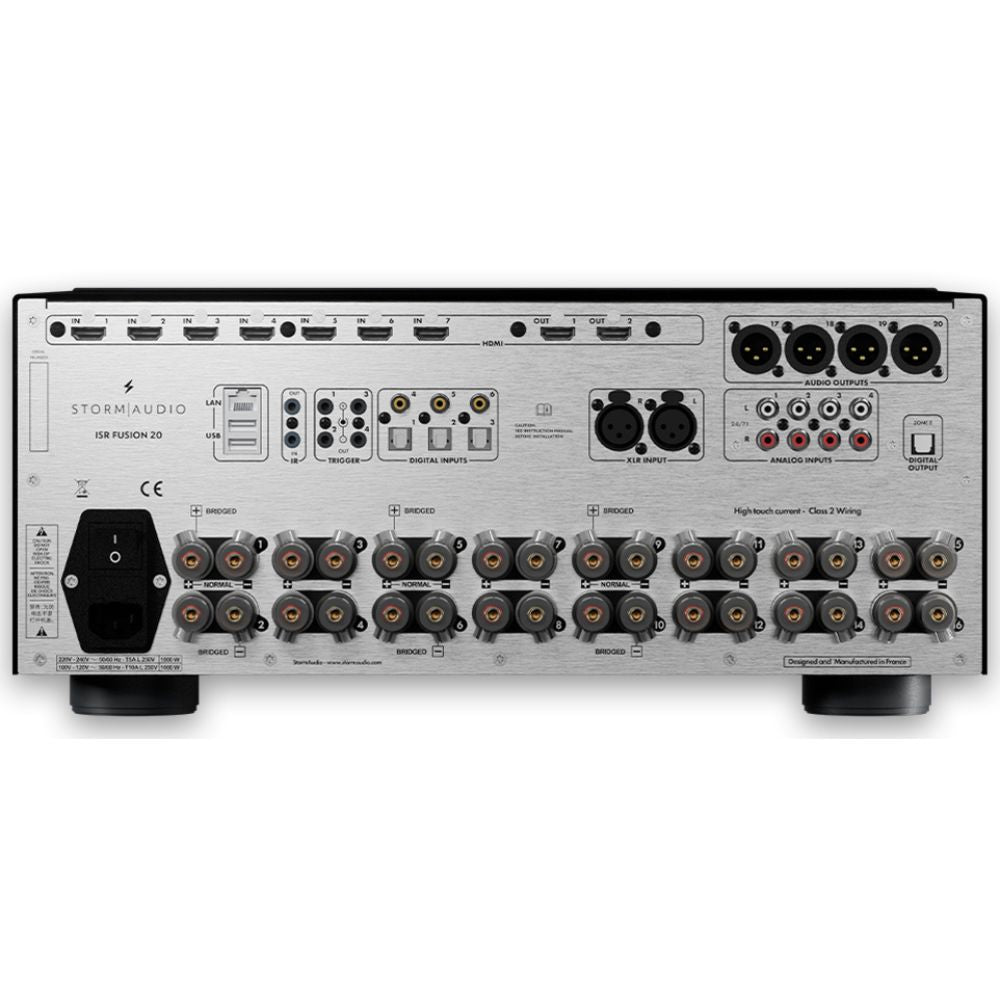

  • HDMI IN / OUT
  • 7 IN / 2 OUT (ARC/eARC)
  • HDMI2.1a / HDCP2.3
  • 8K / 4K120 40 Gbps on all ports
  • HDR10+, Dolby Vision, HLG
  • AUDIO OUTPUTS
  • 16ch, analog amplified (5-way binding posts)
  • 4ch analog (XLR)
  • 1x Optical Toslink (Zone2 Stereo downmix)
  • AUDIO INPUTS
  • 4x RCA analog (7.1 or stereo)
  • 1x XLR analog (stereo)
  • 3x Coaxial SPDIF
  • 3x Optical Toslink
  • DECODING
  • 20 decoding / upmixing channels
  • Dolby Atmos, Auro-3D
  • DTS:X Pro, IMAX Enhanced
  • StormXT ambiance expander
  • All legacy codecs up to 192 kHz
  • PROCESSING
  • Up to 20ch
  • Multi-theater & multi-room
  • Standard and Expert Bass Management
  • Multi-way speakers / Multisubwoofer
  • ROOM CORRECTION
  • Dirac Live with Room Correction, Bass Control and Active Room Treatment modules included
  • REW plugin
  • STREAMING
  • Roon Ready
  • AMPLIFIER SPECIFICATIONS
  • 16 channels (SE, Single Ended)
  • Up to 10 channels (SE) + 3 channels (BTL, Bridge Tied Load)
  • SE : 150W (8ohm) / 300W (4ohm)
  • BTL : 500W (8ohm) / 500W (4ohm)
  • Continous power up to 1000W
  • Peak power up to 2400W (CEA-490-A)
  • CONTROL
  • TCP/IP (ETHERNET), IR
  • IR remote control
  • StormRemote Application (Mobile and Tablet)
  • Web-based configuration
  • Control4, Crestron, RTI, Savant, ELAN drivers


Additional Info

Includes

 Decoding of up to 20 discrete channels (Auro 3D, Dolby Atmos, DTS:X Pro, IMAX Enhanced)

 Dirac Live licenses included: Full Bandwidth Room Correction + Multi- Subwoofer Bass Control + Active Room Treatment

StormXT ambiance expander

Expert Bass Management with flexible bass routing In the box

Feet and rack ears

 IR remote control

Power cord
