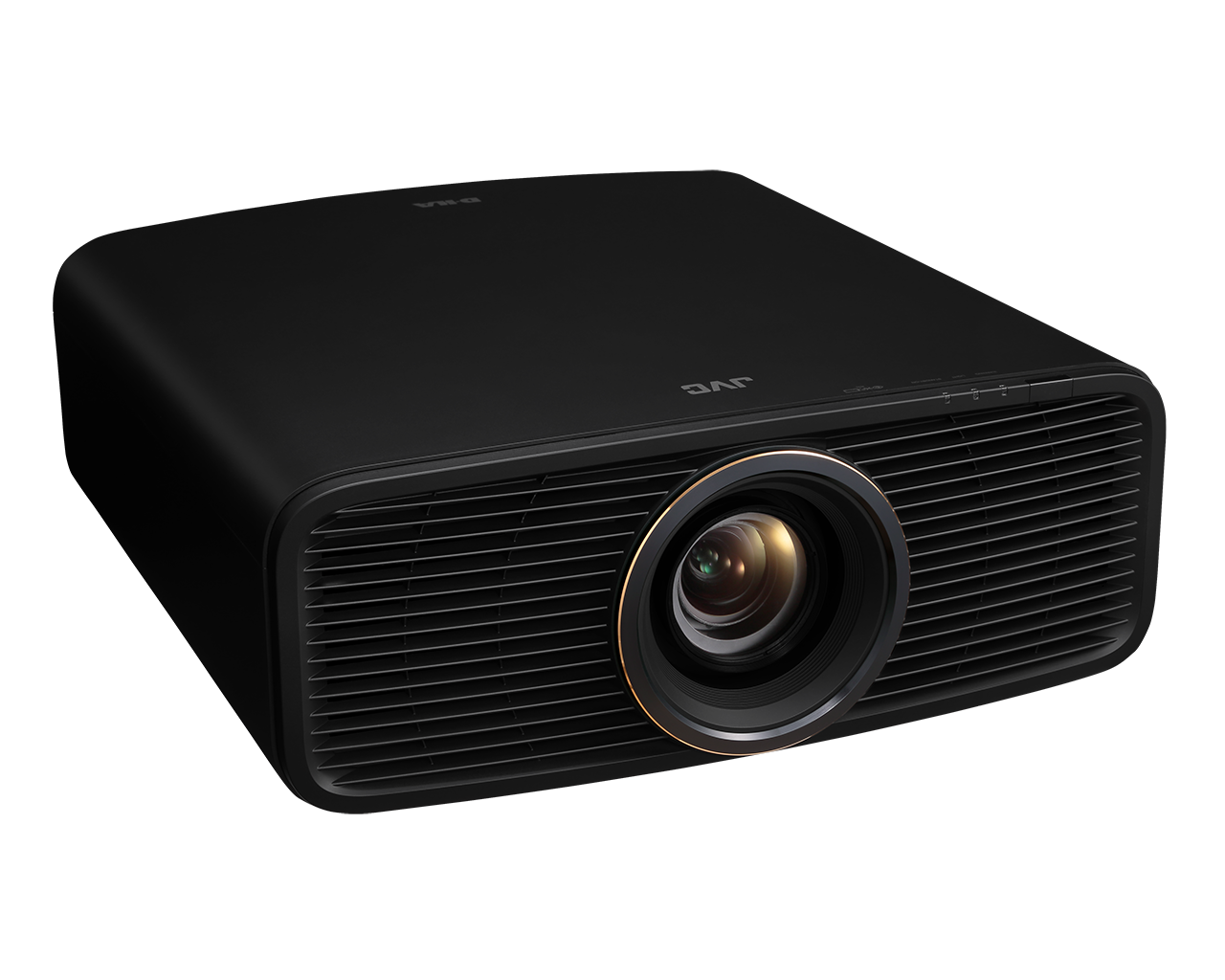

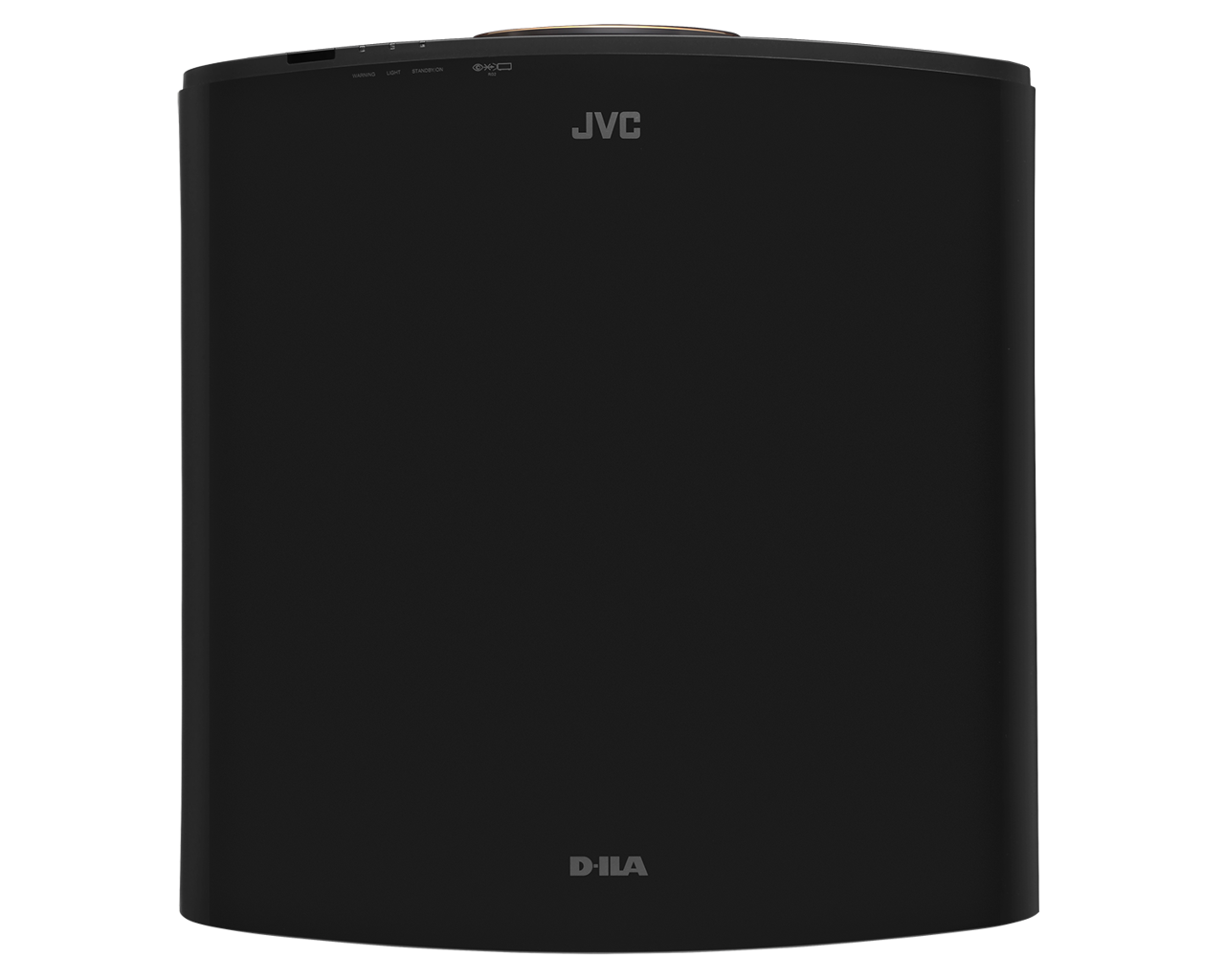

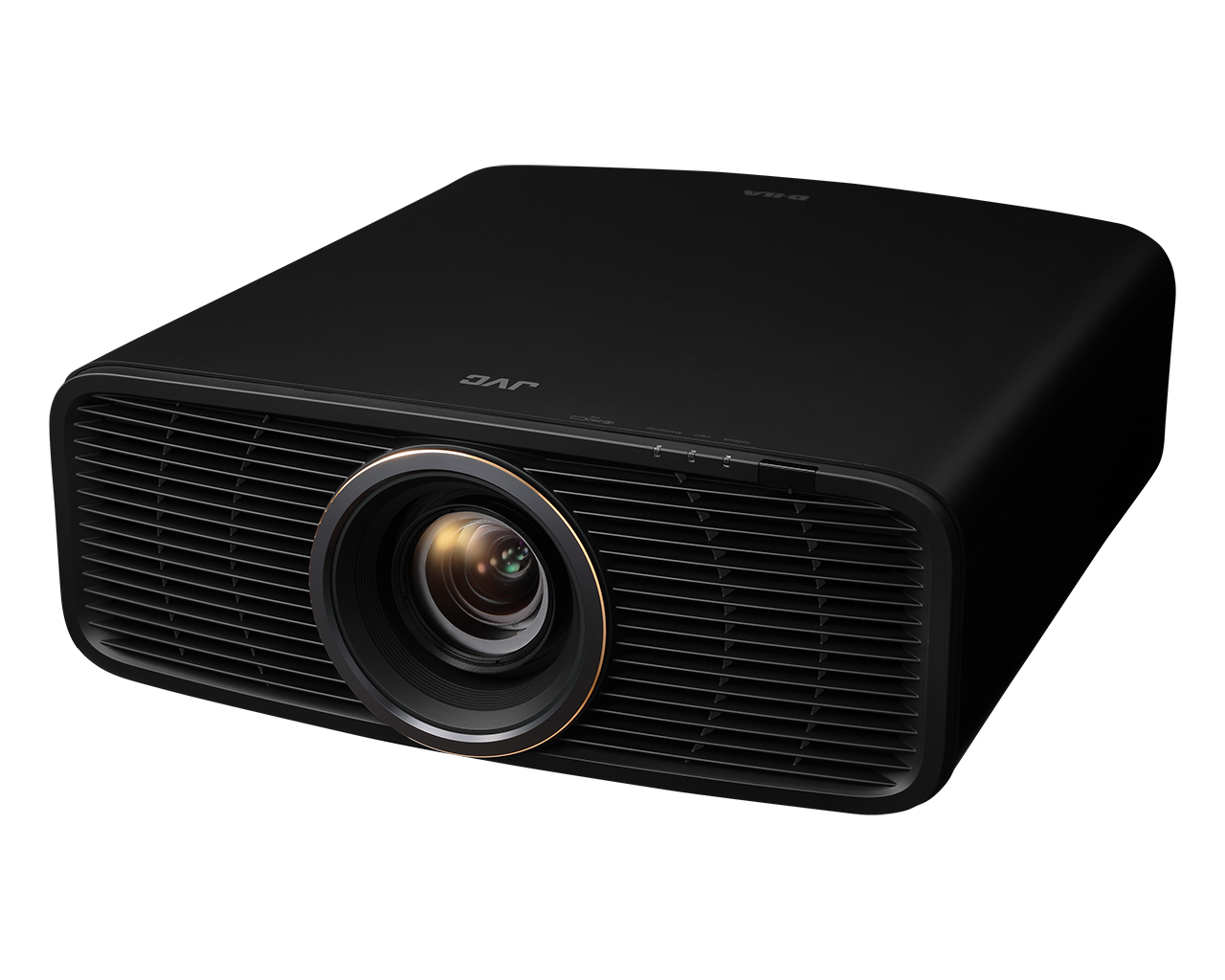

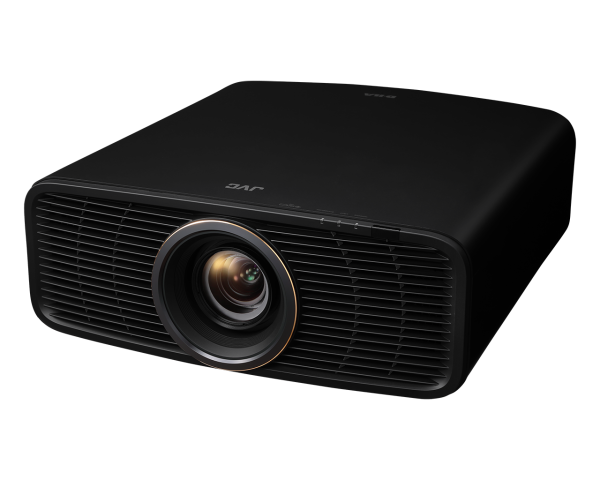

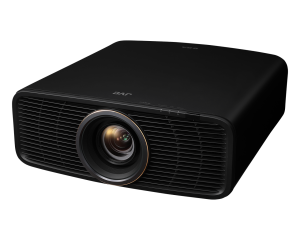

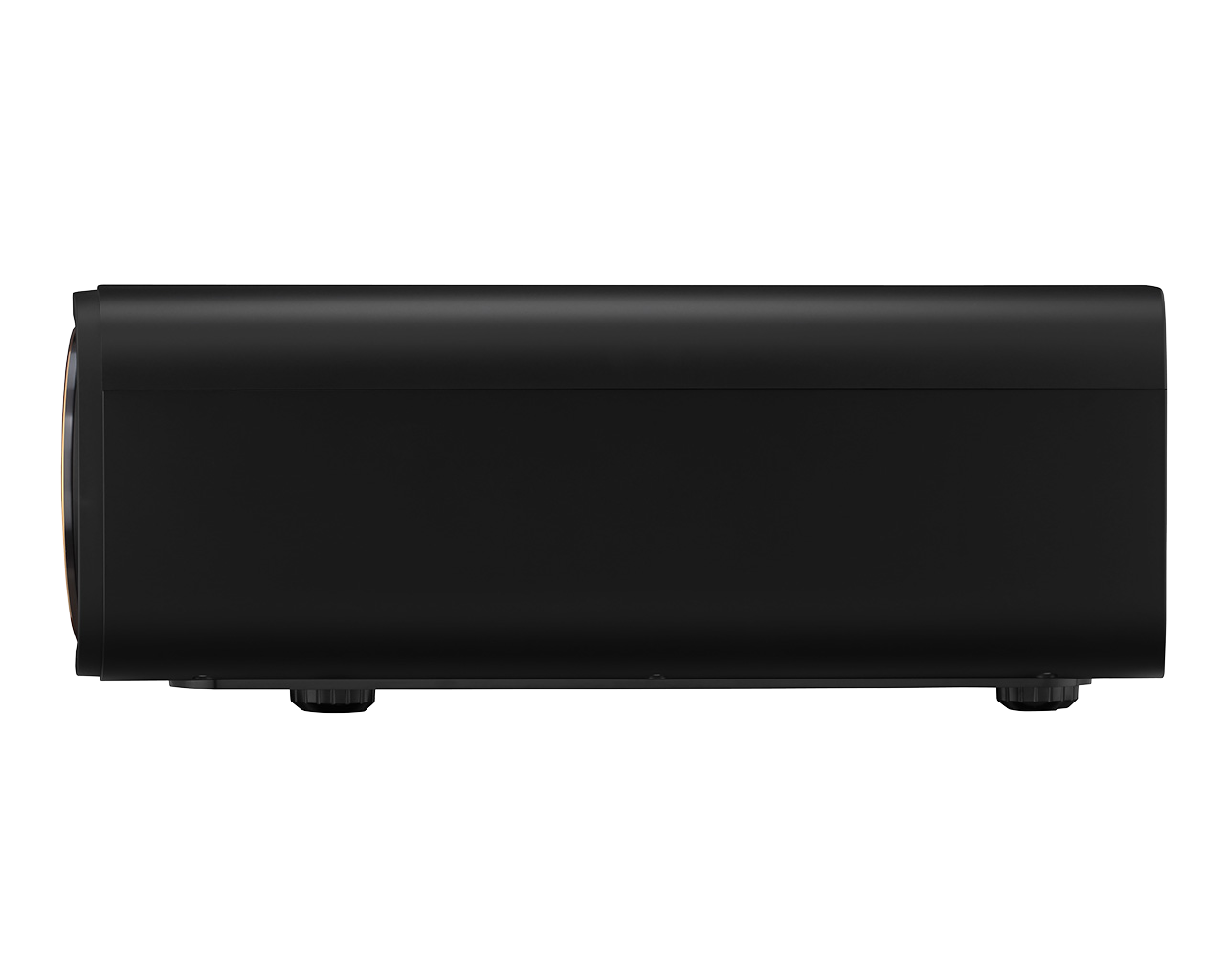

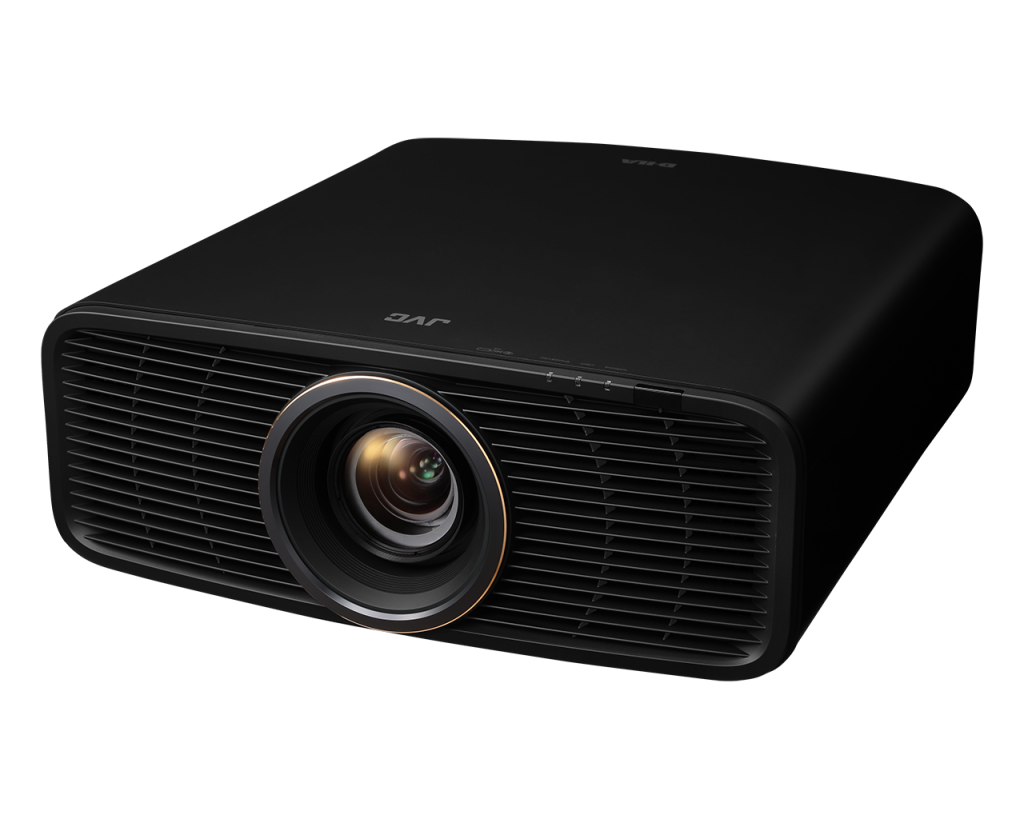

JVC DLA-RS1200 Projector

Device

• D-ILA Technology: Yes
• Chip Type: 0.69-inch 4K D-ILA device
• Native Resolution: 4096 x 2160
• Number Of Chips: 3
• Display Resolution: 4096 x 2160

Light Source

• Laser: Yes
• Type: BLU-Escent Laser Diode
• Life Time (Standard Mode): 20000 hours


• Brightness: 2000 lm
• Dynamic Contrast: ∞ to 1
• Native Contrast: 40000 to 1
• Dynamic Light Power control: Yes
• Modes: Low,High,Balance,Off
• Manual Aperture: Yes
• Range: -15 (stops down) to 0 (opens up)
• 100% REC 709: Yes
• Color Bit Depth: 12 bit
• ISFccc Certification: Yes

HDR

• HDR10: Yes
• HDR10+: Yes
• Frame Adapt HDR: Yes
• HLG: Yes
• Mastering Info Display: Yes
• Info data: MaxCLL, MaxFALL , DML
• Deep Black Tone Control: Yes

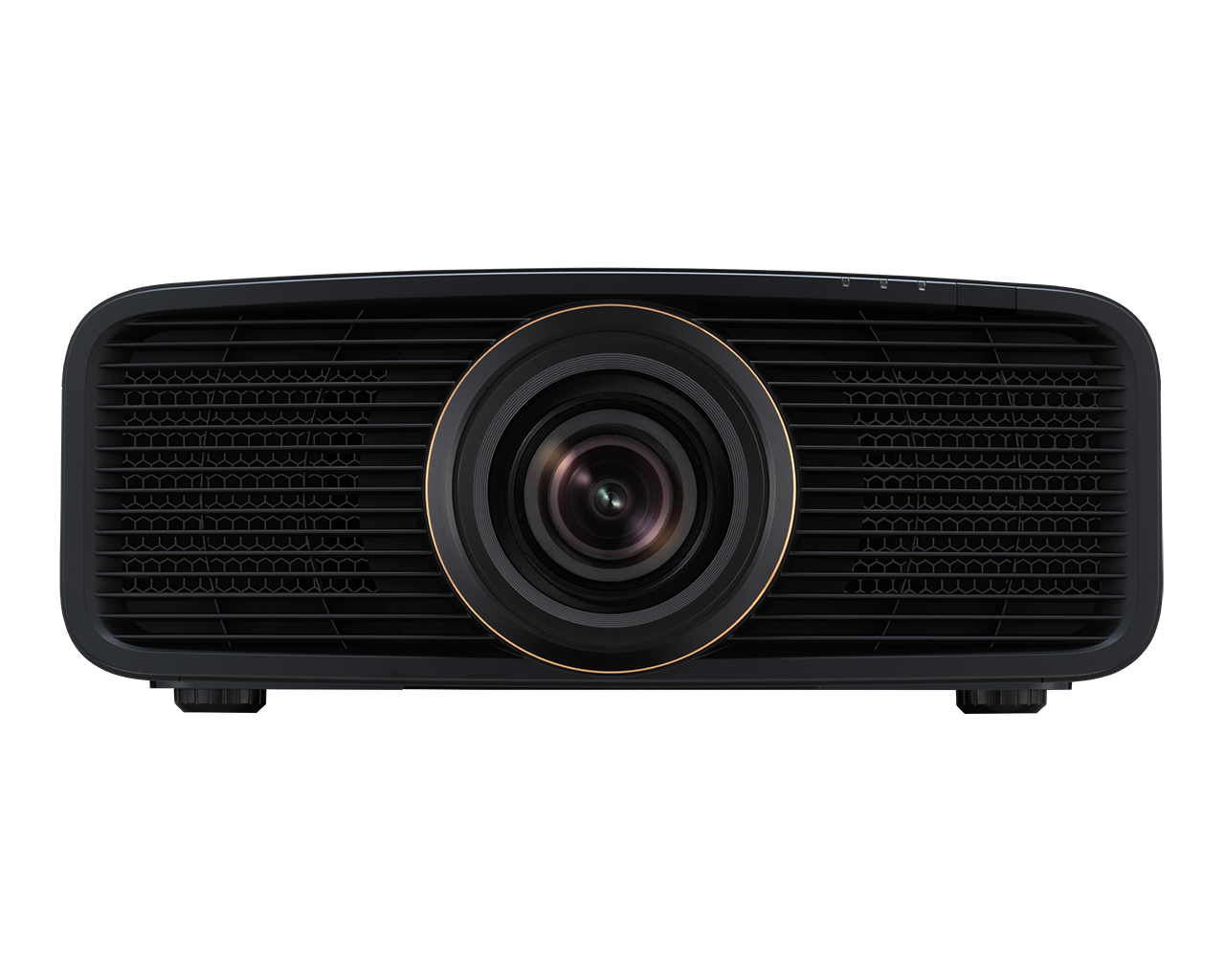

Lens

• Zoom: 1.6 x
• Throw Ratio: 1.34 - 2.14 (16 to 9)
• Throw Ratio: 1.26 - 2.01 (17.9)
• Diameter: 80 mm
• Build: 15-element, 11-group.
• Lens Shift: Yes
• Range Horizontal: ± 28 %
• Range Vertical: ± 70 %
• Motorized Zoom: Yes
• Motorized Shift: Yes
• Motorized Focus: Yes
• Projection Display size (diagonal): 60 - 200 inch
• Memory Function: Yes
• Number of user presets: 5
• Lens Cover: Yes

HDMI

• HDMI: Yes
• Number of Inputs: 2
• Data Rate: 32 Gbps
• HDCP Version: 2.3
• 4K60P signal input: Yes
• Video Signal range: 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
• PC Signal range: 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
• Input Level Adjustment: Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
• Color Space Range: Auto/ YCbCr444 / YCbCr422 / RGB
• EDID Modes: Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)

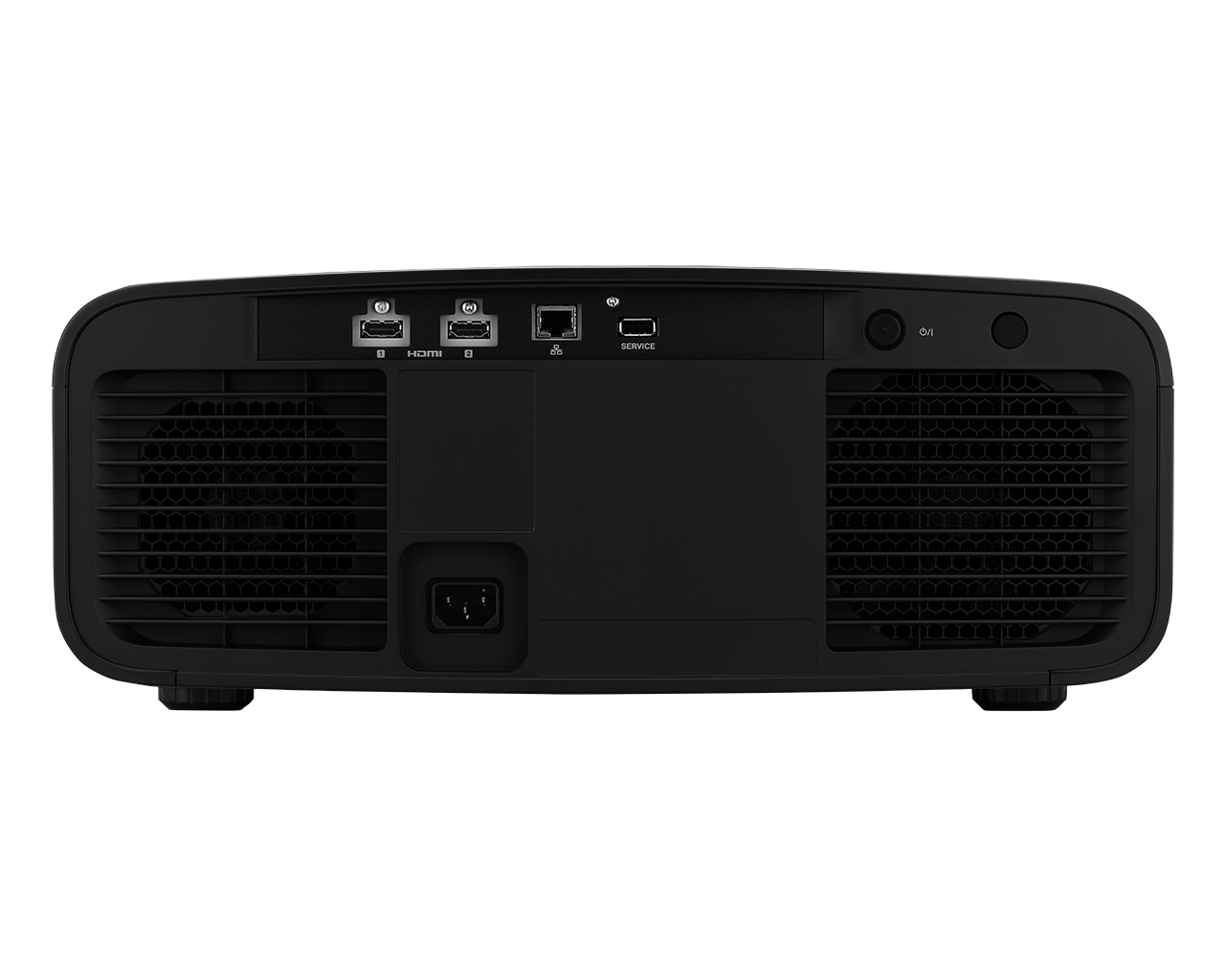

Connections

• LAN: Yes
• Connector: RJ45
• Service: Yes
• Connector: USB (Type A) for firmware update or backup

Picture Settings

• Picture Modes: Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
• Color Temperatures: 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
• Gamma Processing Depth: 12 bit
• Gamma Adjust: HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
• Color Management: 6-Axis adjustable CMS
• MPC: Yes
• Filmmaker Mode: Yes
• Auto Calibration: Yes
• Installation Mode: Yes
• Number of modes: 5
• Included settings: Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
• Anamorphic Modes: 4 Modes (A, B, C, D)
• Control4 SDDP: Yes

Power & Environment

• Power Requirement: AC100-240V, 50/60Hz
• Projector in Use: 280W
• Standby: Eco-mode to 0.3W
• Network Standby: 1.5W (LAN)
• Fan Noise: 23 dB
• Eco Mode: Yes
• Standby Timer: Yes
• Operating Temperature: 5°C to 35°C
• Operating Humidity: 20% to 80%
• Installation Angle: Horizontal +/- 10 degree / Vertical +/- 10 degree
• Installation Height: Below 2,000 m

In the box

• Remote Control: Yes, RM-MH27
• Quick Guide: Yes
• Power Cord: Yes
• Batteries: Yes, 2 x AAA-size batteries

Dimensions & Weight

• Product Dimensions (WxHxD): 17-23/32 in x 7-5/32 in x 18-7/8 in
• Product Weight: 32.2 Lb

General Editing Note

• General Editing Note: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
