Vendor: Cambridge Audio

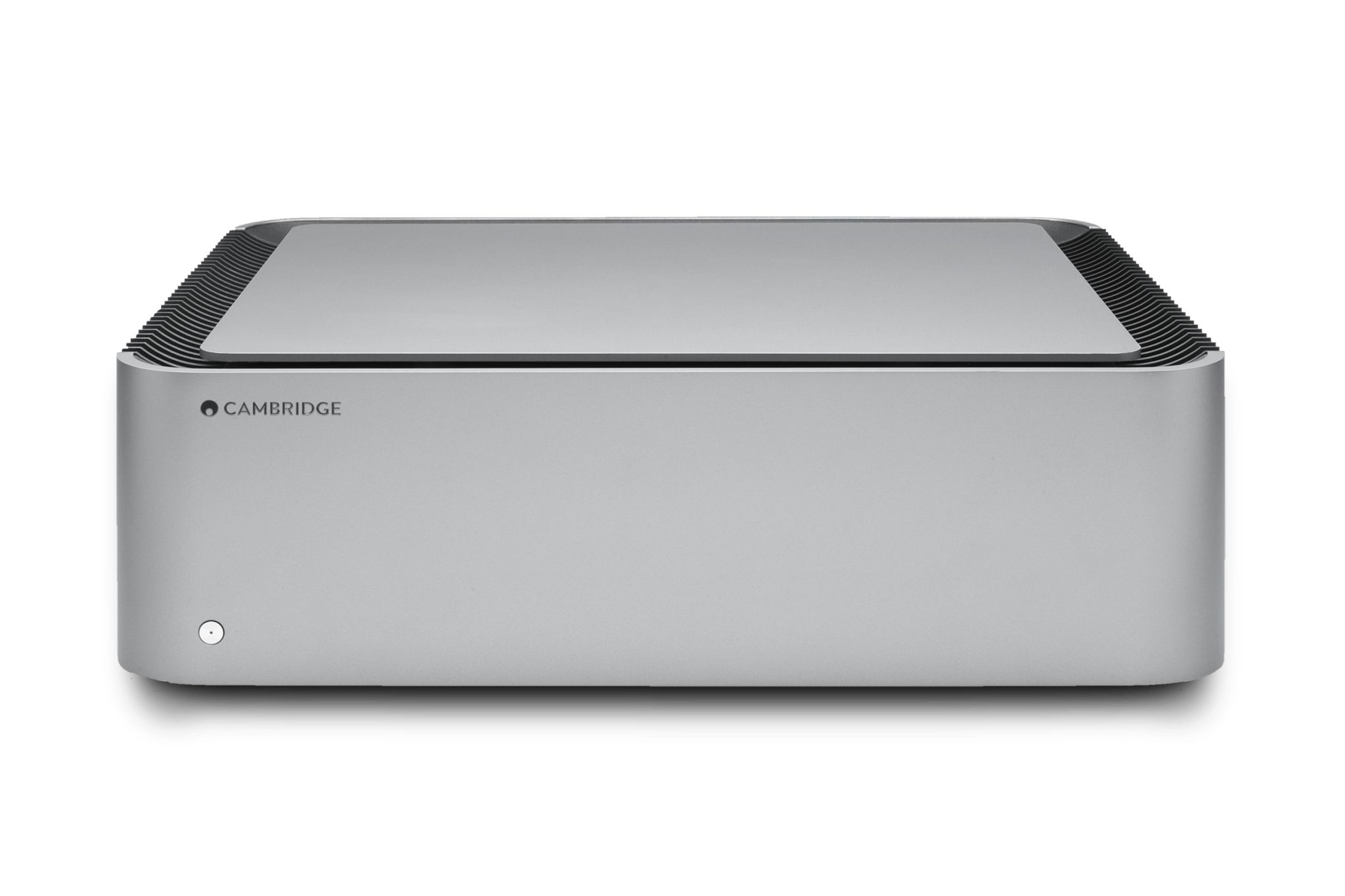

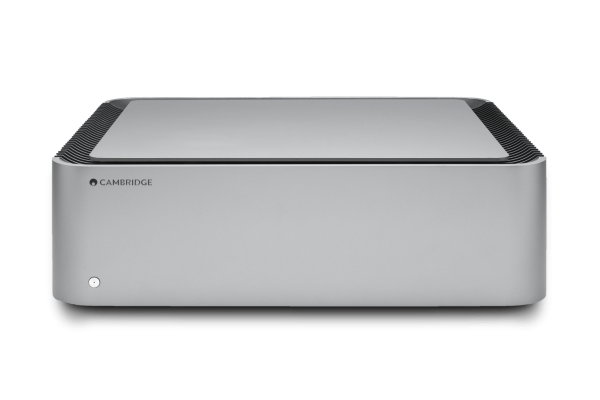

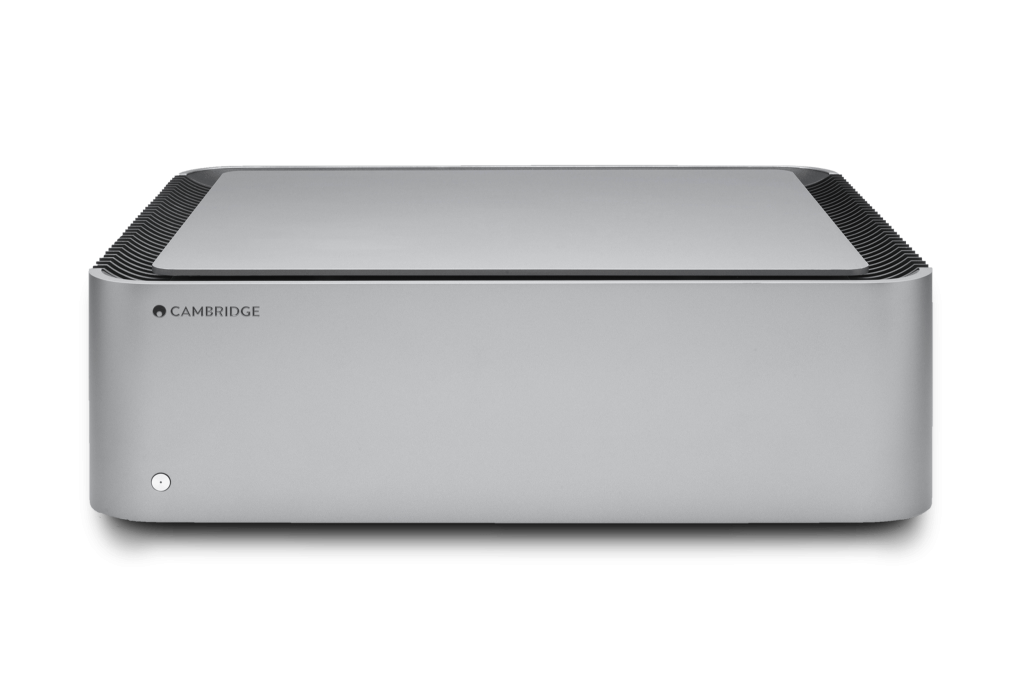

Cambridge Audio Edge M Monoblock Power Amplifier

Fully balanced monoblock amplifier
$4,999.00
$4,999.00

Cambridge Audio Authorized Dealer

Need Help?

We're here to help. Call or chat with a Dreamedia specialist.

877-417-9000 Chat the crew

Free Shipping

Free nationwide shipping available!*

Free Returns

30 day guarantee.
Cambridge Audio Edge M Monoblock Power Amplifier
Add to cart
Overview

Unleashing the Power of Pure Sound with Cambridge Audio Edge M

In the realm of audiophilia, where the pursuit of pure, unadulterated sound is a sacred quest, the Cambridge Audio Edge M Monoblock Power Amplifier emerges as a beacon of acoustic excellence. It is not just an amplifier; it's a statement of high-fidelity, a testament to Cambridge Audio's unyielding passion for crafting audio equipment that transcends the ordinary.

The Essence of High Fidelity

The Edge M is the embodiment of power meeting precision. With a continuous power output that soars to a formidable 200W RMS into 8 Ohms, and an even more impressive 350W RMS into 4 Ohms, the Edge M ensures that your speakers are driven with the authority they deserve. The result is a soundstage that is both expansive and meticulously defined, capable of revealing the subtlest nuances in your music.

A Symphony of Specifications

The technical prowess of the Edge M is evident in its specs:

  • Continuous Power Output: 200W RMS (8 Ohms) / 350W RMS (4 Ohms)
  • Total Harmonic Distortion: <0.002% at 1kHz (8 Ohms)
  • Frequency Response: <3Hz – >80kHz +/-1dB (8 Ohms)
  • Signal-to-Noise Ratio: >93 dB (1W into 8 Ohms) / >115 dB (max power)
  • Input Sensitivity: 1.7V RMS (RCA) / 3.4V RMS (XLR)
  • Max Power Consumption: 1000W
  • Standby Power Consumption: <0.5W

These numbers speak volumes, but they only begin to scratch the surface of the Edge M's capabilities.

A Design That Speaks Volumes

Every aspect of the Edge M's design has been meticulously engineered to deliver audio that is as faithful to the original recording as possible. The fully balanced circuitry ensures that the signal path is free from the common noise and distortion that plague lesser systems. The twin opposing symmetry toroidal transformers not only supply ample power but also maintain consistent tonality, ensuring that your music always sounds its best.

The Virtue of Versatility

Flexibility is key in any high-end audio setup, and the Edge M excels in this regard:

  • Inputs: Balanced XLR and unbalanced RCA offer compatibility with a wide array of preamplifiers.
  • Outputs: Speaker binding posts for secure connections, plus loop out (balanced and unbalanced) for system expansion.

Whether you're integrating the Edge M into an existing system or building a new one from scratch, these options provide the adaptability you need.

The Benefits of Bias: Class XA Operation

Leveraging the bias voltage of a traditional Class AB design, the Edge M operates in Class XA, striking a balance between efficiency and performance. This unique approach reduces distortion and heat without sacrificing the amplifier's dynamic capabilities.

The Physical Presence

The Edge M is a statement piece, both in performance and presence:

  • Dimensions: 150 x 460 x 405mm (5.9 x 18.1 x 15.9″)
  • Weight: 23.6kg (52.0lbs)

Its robust build is a testament to the quality and care that Cambridge Audio has poured into every component.

What's in the Box?

Upon unboxing the Edge M, you'll find:

  • EDGE M Monoblock Power Amplifier
  • Power Cable
  • Link Cable
  • Instruction Manual

Everything you need to begin your journey towards acoustic perfection is included.

The Cambridge Audio Edge M Experience

Imagine settling into your favorite chair, pressing play, and being enveloped by a sound that is so pure, so clear, and so true to life that it transports you to the very heart of the music. The Edge M makes this possible. It delivers a listening experience that is both immersive and emotive, whether you're enjoying the intricate layers of a symphony or the raw energy of a live rock performance.

Unmatched Purity in Sound Reproduction

With a total harmonic distortion of less than 0.002% at 1kHz, the Edge M ensures that what you hear is as close to the original recording as possible. The wide frequency response preserves every detail, from the deepest bass to the highest treble, delivering audio playback that is as the artist intended.

Energy Efficiency

Despite its power, the Edge M is mindful of energy consumption. With a standby power consumption of less than 0.5W, it's designed to save energy without compromising on performance.

Integrate with Ease

The Edge M has been crafted to integrate seamlessly with the Edge NQ Preamplifier Network Player, ensuring synergy between components for the best possible sound quality. However, its versatile input and output options allow it to serve as the cornerstone of any high-end audio system.

Why Choose the Cambridge Audio Edge M?

When you choose the Edge M, you're not just buying an amplifier; you're investing in a piece of audio engineering that will elevate your listening experience to new heights. It's a commitment to hearing music as it was meant to be heard, with all the power, precision, and passion the artists poured into it.

The Dreamedia Difference

At Dreamedia, we understand the importance of a home theater system that reflects your love for exceptional sound. We're here to help design and integrate the Cambridge Audio Edge M into your home audio setup. Our expertise ensures that your system will not only meet but exceed your expectations.

Experience the Edge M Today

We invite you to experience the Cambridge Audio Edge M Monoblock Power Amplifier and hear the difference it can make in your audio journey. With Dreamedia, unparalleled sound is just a consultation away. Let us help you bring the concert hall into your home.

The Cambridge Audio Edge M is more than an amplifier; it's the heart of your home audio system, pumping life into every note, every beat, and every musical moment. Discover the power of pure sound with the Edge M and never look back.

Our Review

Our Review

Cambridge Audio Edge M Monoblock Power Amplifier Review

Introduction

The Cambridge Audio Edge M Monoblock Power Amplifier represents the pinnacle of the company's pursuit of pure audio excellence. Designed with the audiophile in mind, it is engineered to deliver not just power but also finesse to the most demanding of speakers. This monoblock sits at the high-end segment of the market and is aimed at those who want no-compromise audio performance in their home theater or listening room.

Design and Build Quality

Aesthetics and Form Factor

Upon first glance, the Cambridge Audio Edge M exudes a sense of understated elegance. Its sleek, minimalist front panel is a nod to contemporary design, while the substantial weight of 23.6kg (52.0lbs) attests to the robust internals housed within. The dimensions are somewhat imposing and will require a dedicated space within an audio rack or stand. The weight, while indicative of quality components, means that installation and handling should be approached with care and proper support.

Build Materials and Durability

Crafted with precision, the Edge M's chassis is built to shield sensitive audio circuits from external interference and vibration. The use of high-quality materials suggests this amplifier is built to last, likely outliving the technology it currently supports. The robust build quality aligns with Cambridge Audio's reputation for producing durable and reliable products.

Features and Technology

Fully Balanced Design

The fully balanced design from input to output ensures that the Edge M is immune to common noise distortions. This design feature is critical for achieving the clarity and precision that audiophiles crave, especially in setups where long cable runs are necessary, and the risk of picking up interference is higher.

Twin Opposing Symmetry Toroidal Transformers

Cambridge Audio's choice to implement twin opposing symmetry toroidal transformers is a bold engineering decision. These transformers are key in delivering a consistent supply of clean power while maintaining a pure tonal characteristic across the audio spectrum. They also help to cancel out electromagnetic interference, thereby contributing to the amplifier's overall noise reduction capabilities.

Class XA Operation

The Class XA operation is a unique blend that takes the best of Class A's audio fidelity and the efficiency of Class AB. By utilizing a bias voltage, the Edge M significantly reduces crossover distortion, which is often the bane of traditional Class AB designs. This hybrid approach ensures that the amplifier operates cooler and more efficiently, without sacrificing audio quality.

Connectivity Options

The Cambridge Audio Edge M is equipped with both balanced XLR and unbalanced RCA inputs, catering to a wide array of source components. The inclusion of speaker binding posts and loop-out connections for both balanced and unbalanced signals showcases its flexibility, allowing for seamless integration into various audio systems.

Performance

Power Output and Speaker Driving Capability

Boasting 200W RMS into 8 Ohms and an impressive 350W RMS into 4 Ohms, the Edge M is capable of driving all but the most power-hungry speakers with ease. This level of power ensures headroom for dynamic peaks in music, providing a sense of effortlessness even during demanding passages.

Total Harmonic Distortion (THD)

With an unweighted THD of <0.002% at 1kHz at rated power into 8 Ohms, the Edge M demonstrates its ability to deliver audio with exceptional accuracy. Such low distortion levels mean that the sound remains uncolored and true to the original recording, a critical factor for sound purists.

Frequency Response

The declared frequency response of <3Hz – >80kHz +/-1dB into 8 Ohms is beyond the range of human hearing, which caps at about 20Hz to 20kHz. This ultra-wide frequency response ensures that the amplifier can reproduce the full spectrum of audible sounds as well as those overtones and nuances that, while not directly heard, affect the overall sound quality.

Real-World Listening Experience

In practice, the Cambridge Audio Edge M delivers a sonic experience that is both expansive and intimate. Whether it's the delicate decay of a cymbal or the full-bodied roar of an orchestra, the Edge M captures it with precision. Its performance across various genres—from classical to rock, jazz to electronic—is consistently impressive, revealing layers and textures in the music that lesser amplifiers might miss.

Integration and Daily Use

Compatibility with Various Audio Systems

The Edge M is versatile enough to fit into a range of audio systems, from a dedicated stereo setup to a complex home theater arrangement. Its robust power output makes it an ideal partner for a wide variety of speakers, ensuring compatibility is seldom an issue.

Power Consumption and Efficiency

While the Edge M is not the most energy-efficient amplifier on the market, with a max power consumption of 1000W, this is to be expected from an amplifier capable of delivering such high power output. The standby power consumption of <0.5W is commendable, ensuring that when not in use, it's not unduly taxing on the power bill.

User Interface and Control

The Edge M maintains a minimalist approach when it comes to user interface, focusing on performance rather than an array of controls. For those who prefer a straightforward, no-frills experience, this will be a welcome design choice.

Pros and Cons Recap

Pros:
- High continuous power output for demanding speakers
- Low total harmonic distortion for accurate sound reproduction
- Wide frequency response for detailed audio playback
- Versatile input and output options for flexible system integration
- Efficient standby power consumption for energy savings

Cons:
- High weight may pose challenges for installation and handling
- High power consumption when in use may require adequate power supply and ventilation

Final Thoughts

The Cambridge Audio Edge M Monoblock Power Amplifier is a formidable piece of audio technology. Its meticulous design, high-quality build, and exceptional audio performance make it a standout product for the discerning audiophile. While its weight and power consumption are points to consider, they are overshadowed by the amplifier's overall performance and sound quality. For those in search of an endgame amplifier capable of driving a premium home audio system to new heights, the Edge M is an investment that promises to deliver an unparalleled listening experience.

Specifications

Specifications

Power Specifications

  • Continuous Power Output (8 Ohms): 200W RMS
  • Continuous Power Output (4 Ohms): 350W RMS
  • Total Harmonic Distortion (THD) 1kHz (8 Ohms): <0.002%
  • Total Harmonic Distortion (THD) 20Hz-20kHz (8 Ohms): <0.02%
  • Frequency Response: <3Hz – >80kHz +/-1dB
  • Signal-to-Noise Ratio (1W into 8 Ohms): >93 dB
  • Signal-to-Noise Ratio (max power): >115 dB
  • Gain (RCA): 28dB
  • Gain (XLR): 22dB
  • Input Sensitivity (RCA): 1.7V RMS
  • Input Sensitivity (XLR): 3.4V RMS
  • Max Power Consumption: 1000W
  • Standby Power Consumption: <0.5W

Input/Output Specifications

  • Input Impedances (Balanced): 100k Ohm
  • Input Impedances (Unbalanced): 47k Ohm
  • Inputs: Balanced, Unbalanced
  • Outputs: Speaker out, Loop out (balanced and unbalanced)

Physical Specifications

  • Dimensions: 150 x 460 x 405mm
  • Weight: 23.6kg

Box Contents

  • Included: EDGE M Monoblock Power Amplifier, Power Cable, Link Cable, Instruction Manual

Design and Features

  • Fully Balanced Circuitry: Yes
  • Toroidal Transformers: Twin, Opposing Symmetry
  • Class AB Design: With Bias Voltage
  • Synchronization: With Edge NQ Preamplifier Network Player
