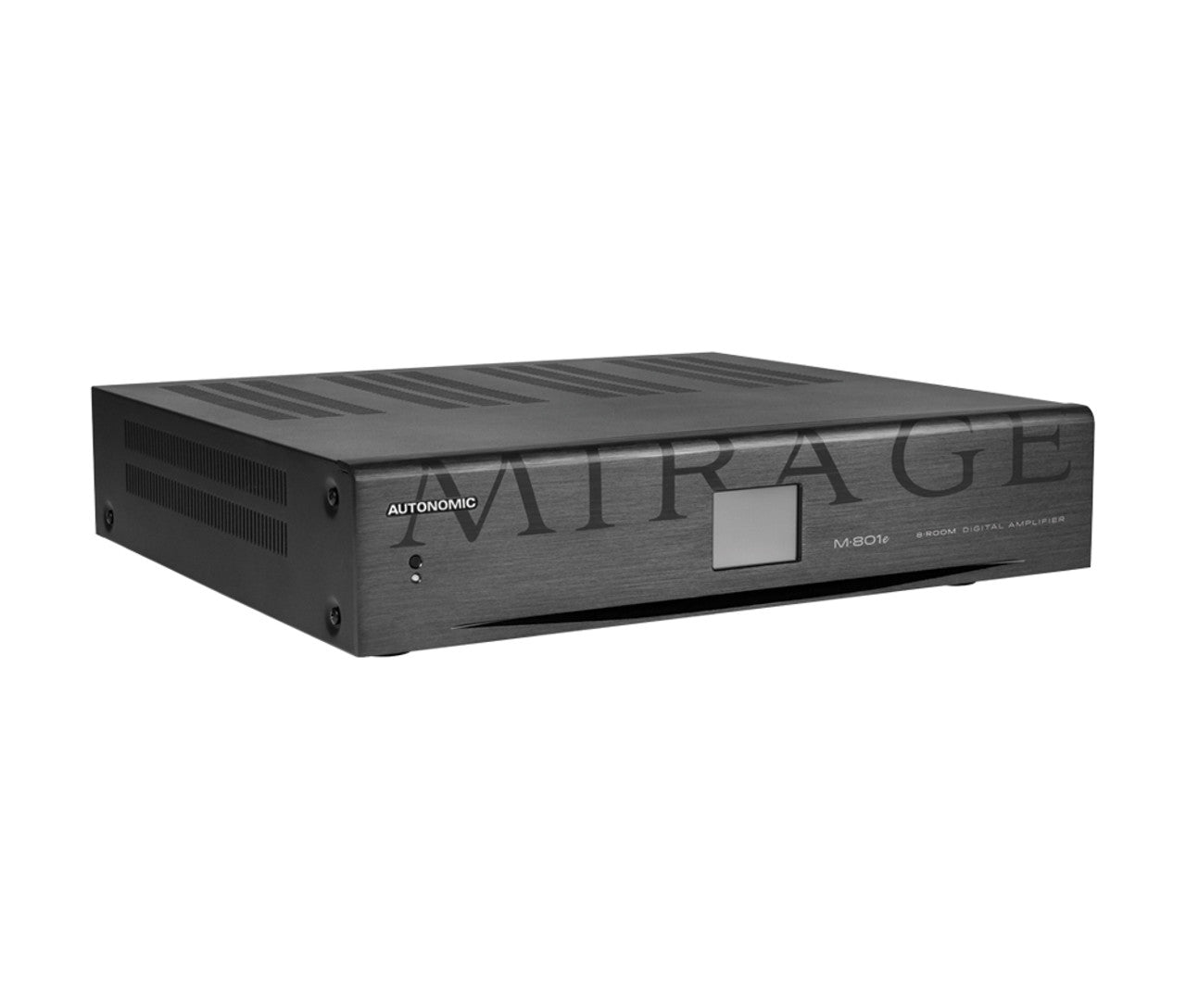

Autonomic M-801e Digital Amplifier

Dreamedia+

Autonomic M-801e Digital Amplifier – Powerful Multi-Room Audio Performance

High-Powered Audio Distribution

Delivering 50W per channel across 12 channels (6 zones), the M-801e ensures high-fidelity sound throughout your home with precision and clarity.

Efficient Class D Amplification

Designed for superior energy efficiency, the M-801e utilizes advanced Class D amplification, providing dynamic, distortion-free audio while keeping power consumption low.

Seamless Integration with Autonomic Systems

Engineered to work flawlessly with Autonomic music servers and home automation platforms, this amplifier enables effortless whole-home audio control.

Flexible Connectivity & Expandability

Equipped with versatile input and output options, the M-801e allows for easy system expansion, making it perfect for custom multi-room installations.

Rack-Mountable & Space-Saving Design

With a sleek, rack-mountable form factor, this amplifier integrates neatly into any professional AV setup, optimizing space while delivering outstanding performance.

Our Review

Coming Soon!.

Specifications

Rated Output Power (FTC) All Channels: 55W per channel / 8Ω loads 75W per channel / 4Ω loads
Total Harmonic Distortion (THD): 0.1% (50 Watt, 8 Ω load)
Damping Factor (8Ω load): 10
Speaker Impedance (Z1 - Z6 L/R): 4Ω–8Ω
Analog Input Sensitivity (S1 - S8 L/R): 0.75V RMS (Vol 100, Gain 0dB, 55W Output)
Analog Input Impedance (S1 - S8 L/R): 22KΩ
Digital Input sensitivity: 0dBFS
Pre Amplifier Output Level and Impedance (Z7 & Z8 L/R): +14dB
Frequency Response: 48 KHz sample rate
Tone Control: ±12dB, 100Hz (Bass) ±12dB, 10kHz (Treble)
Signal to Noise Ratio: 95dB (IHA-A, 0.75V input / unbalanced)

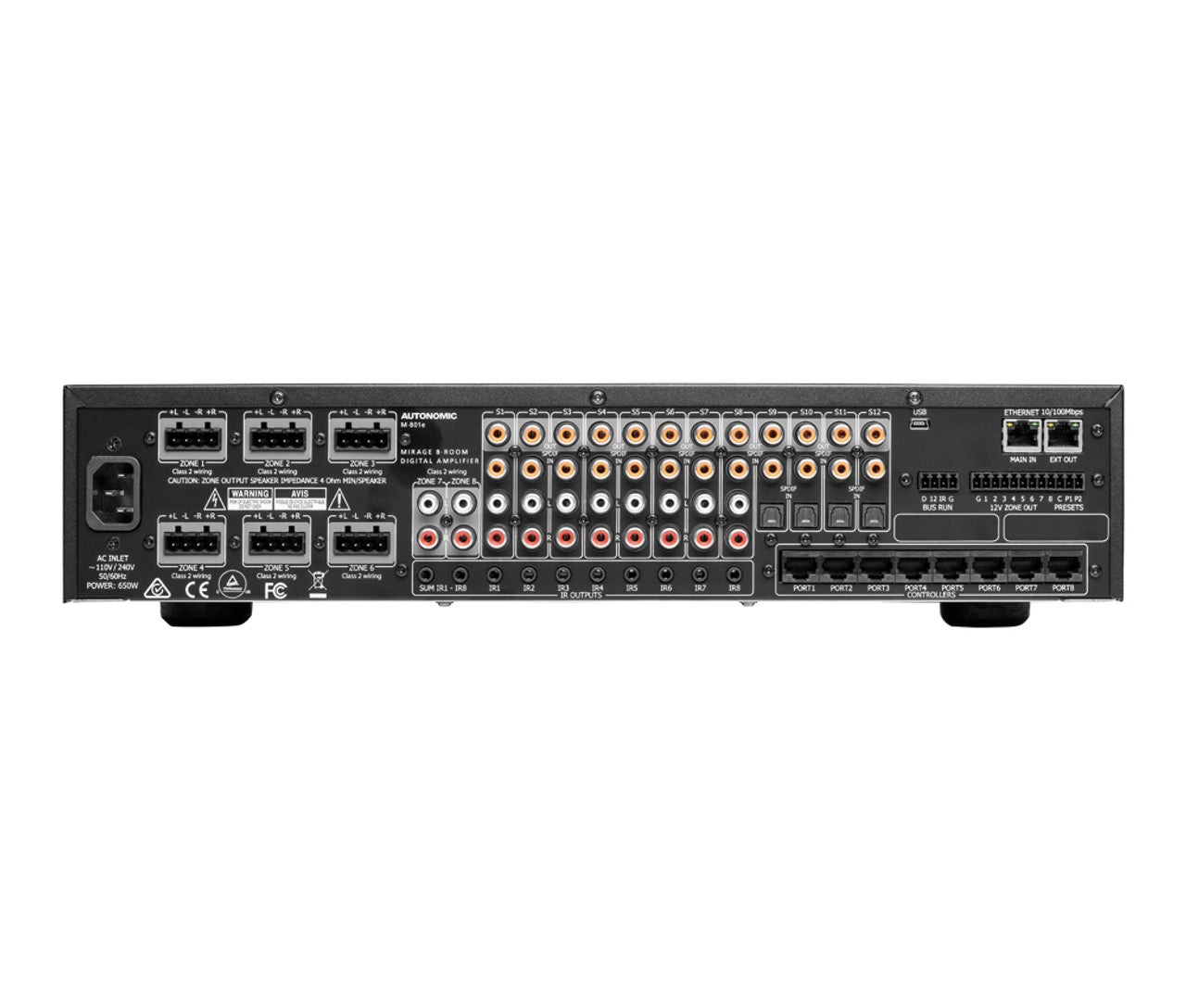

IR Output: (10) 3.5mm Jack
Source Inputs: (12) Digital Coaxial RCA, (8) Analog (L/R) RCA, (4) TOSLINK
Ethernet: (2) 100Base-T, MAIN IN and Switch EXT OUT
USB: (1) USB mini-B female 5 pin
Data: (1) 4 pole 3.5 mm terminal block connector (Data,12V, IR,0V)
Controllers: (8) RJ45 sockets Keypad controller ports
BUS RUN: (1) 4 way terminal block (0V, IR 12V & Data)
Amp On & PG Control: (1) 10 way terminal plug with Amp ON 1 - 8 and (2) page preset contact closure inputs
Zone Triggers & Presets: (1) 12 pole 3.5 mm terminal block connector (Zone trigger 0V out, Zone trigger 1 - 8 12V out, Common, Preset 1 - 2 in)
Power Supply: 110–240V AC 50–60Hz
Power Consumption: 650W
Standby Power Consumption: 6W
Dimensions with feet: 4.0” H x 17” W x 15” D (10.2cm x 43.2cm x 38.1cm)
Weight: 15.4 lb. (7 kg)
Height including feet: 105 mm
Touch Panel Display 2.4" color LCD touch panel display: for menu guided control and programming.
Zones: (8) zones Expandable to 96 zones, attaching additional M-801e or M-401e amplifiers
