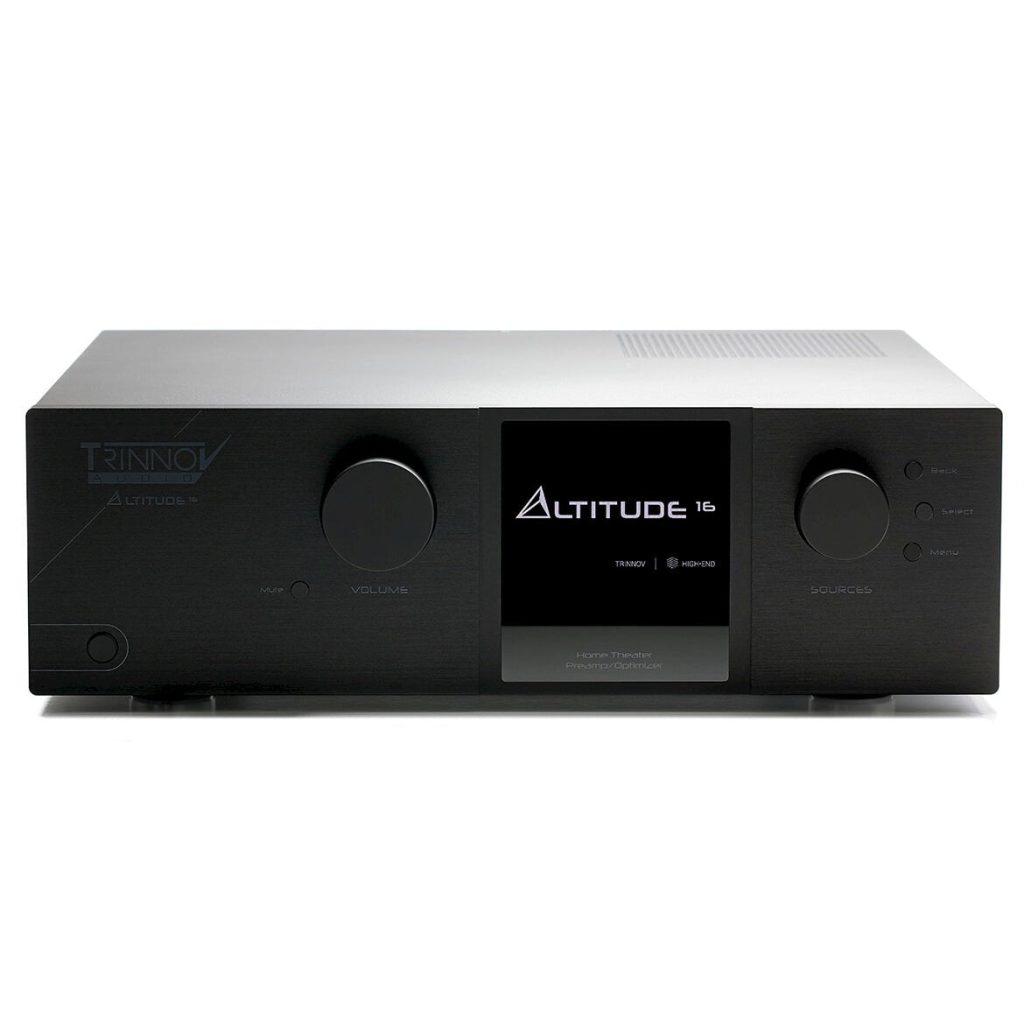

Trinnov Altitude 16

Sound Processor

by Trinnov
Free Shipping Nationwide

You bought the tech, we’ll cover the rest. We will ship your product free to your door anywhere in the U.S.

NO HASSLE 30 DAYS RETURN

Not happy with an item? No sweat, you have 30 days to return it without any hassle!

PRICE ASSURANCE

We will always work to get you the best available price across all authorized dealers.

DREAM TEAM

Let our experts help make your audio/visual dreams come true!

PREFERRED INSTALLERS

We have a large group of installers across the US. Let us help you find a preferred installer in your area.

Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24 bit / 96K audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.

PHYSICAL SITE ASSESSMENT REQUIRED. CONTACT FOR MORE INFORMATION.

Overview

We're proud to be an authorized online dealer of Trinnov

The groundbreaking Altitude32 processor set the bar high -- and Trinnov didn’t lower it for the Altitude16. Delivering the same processing capabilities and sound quality as the Altitude32 processor, the Altitude16 makes Trinnov’s best-in-class performance accessible to a wider audience who's immersive audio system requirements will not exceed 20 channels!

Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24 bit / 96K audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.

Specs

  • Dolby Atmos® Native Decoding & Upmix: Up to 20 discrete channels
  • Auro-3D® Native Decoding & Up-mix (Auromatic): Up to 13.1
  • DTS:X® Pro: Up to 20 discrete channels
  • Speaker Layouts support: All
  • IMAX Enhanced: Yes

Additional Info

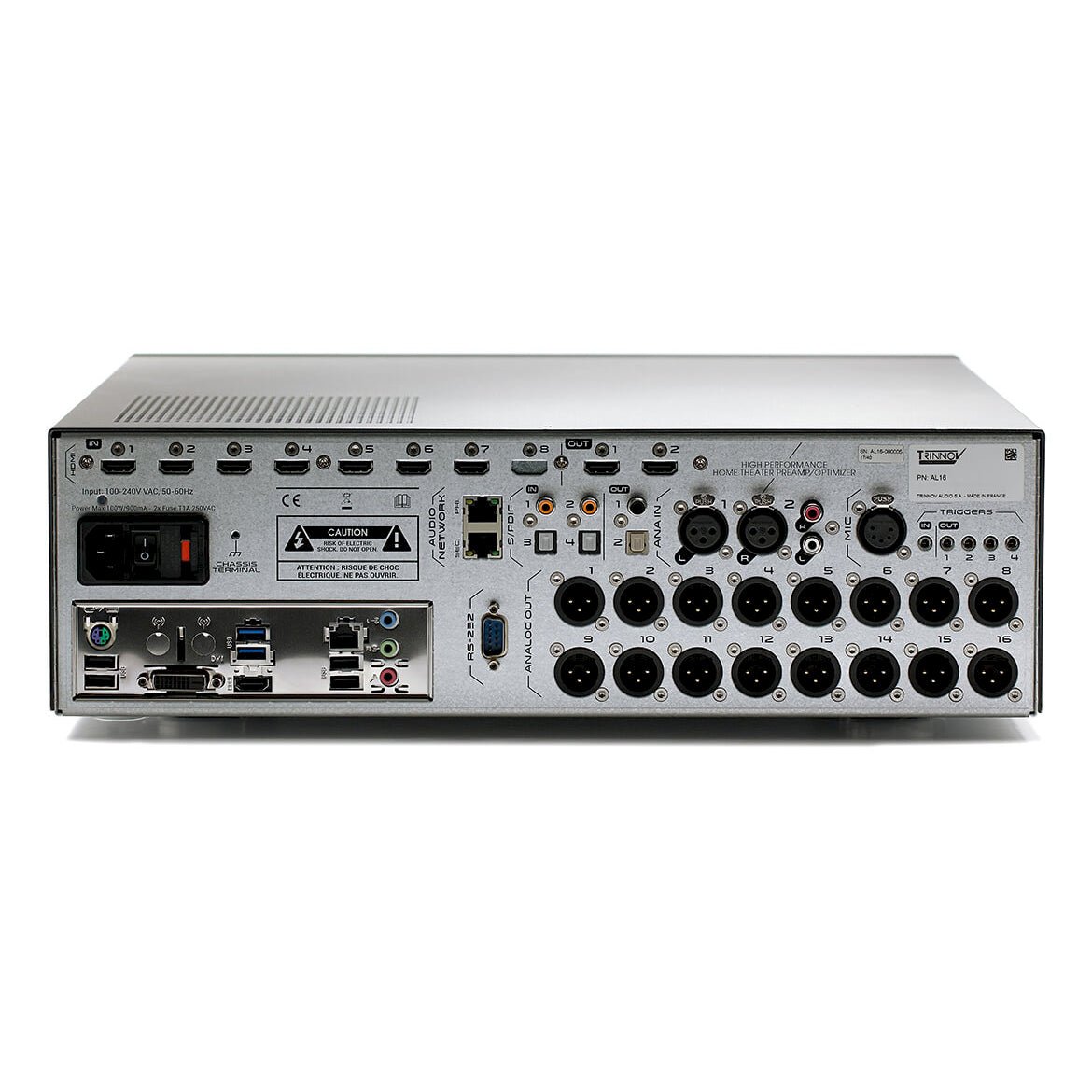

HDMI CONNECTIVITY

  • Output 1:HDMI 2.0 / HDCP 2.2
  • Output 2:HDMI 2.0 / HDCP 2.2
  • Inputs:8
  • Maximum Resolution:4K UHD on all ins / outs
  • Maximum Bandwidth:18Gbps on all inputs
  • Frame rates supported:24/25/30/50/60 fps (UHD) 120 fps (HD)
  • ARC / eARC:Available on Output 1
  • 4K to 1080 Downscaling:Available on Output 1
  • OSD:Volume information displayed on-screen

DIGITAL AUDIO CONNECTIVITY

  • S/PDIF Inputs:x4 (2 optical, 2 coaxial)
  • S/PDIF Outputs:x2 (1 optical, 1 coaxial)
  • +4 Outputs:By combining Analog and S/PDIF outputs
  • Audio Network:Dual ports (for future use)

ANALOGUE AUDIO CONNECTIVITY

  • Microphone input:1x 5 Pin XLR for 3D Microphone
  • Balanced inputs:1x Stereo XLR
  • Unbalanced inputs:1x Stereo RCA
  • Balanced outputs:16x XLR
  • Input Impedance:20k Ohms / 10k Ohms

AUDIO PROCESSING

  • Data precision:64 bits, floating point
  • Max Sampling Rate:Native, up to 96kHz

HARDWARE

  • Processor:Intel multi core hyper threaded
  • ADC Resolution / Sampling Rate:24 bits/96 kHz
  • DAC Resolution / Sampling Rate:24 bits/192 kHz
  • A/D Signal-To-Noise Ratio:119 dB (A-Weighted)
  • D/A Signal-To-Noise Ratio:118 dB (A-Weighted)
  • Reference Level:+18dBu @ 0dBFS (Balanced)
  • Clock / Jitter:attenuation > 50 dB above 100Hz
  • Cooling system:Custom heat sinks + additional silent fans
  • Safety Components:AntiPop relays on each output

POWER SUPPLY

  • Power requirement:100 - 240v (auto selecting)
  • Power consumption:76W Max
  • Thermal conversion:260 BTU/h Max
  • Mains fuse:2x 1A slow blow
  • Internal PSUs:Separated supplies for Audio and Processing

WEIGHT & DIMENSIONS

  • Dimensions (W x H x D) mm:438 x 139 x 430
  • Dimensions (W x H x D) inches:17 1/4" x 5 1/2" x 17 15/16"
  • Shipping dimensions (L x H x P) cm:74 x 59 x 30
  • Weight:11.30kg / 24.9 lbs
  • Shipping weight / volume:18.2kg / 0.131 M3
  • Rackmounting:3U - Rack Ears Included Trinnov Audio derives from “Tri-innovation”, hence Innovation in 3D Audio. Our company’s constant focus in this field of research has allowed us to develop the most advanced, innovative, powerful and scalable 3D AV Preamplifier ever manufactured. Thanks to a unique hardware platform, Trinnov Audio offers the first implementations of the latest home theater audio technologies. The Altitude16 has established a new leadership position within the luxury home cinema processors category, opening the way for a whole new generation of modern, scalable and software oriented home cinema processors.
