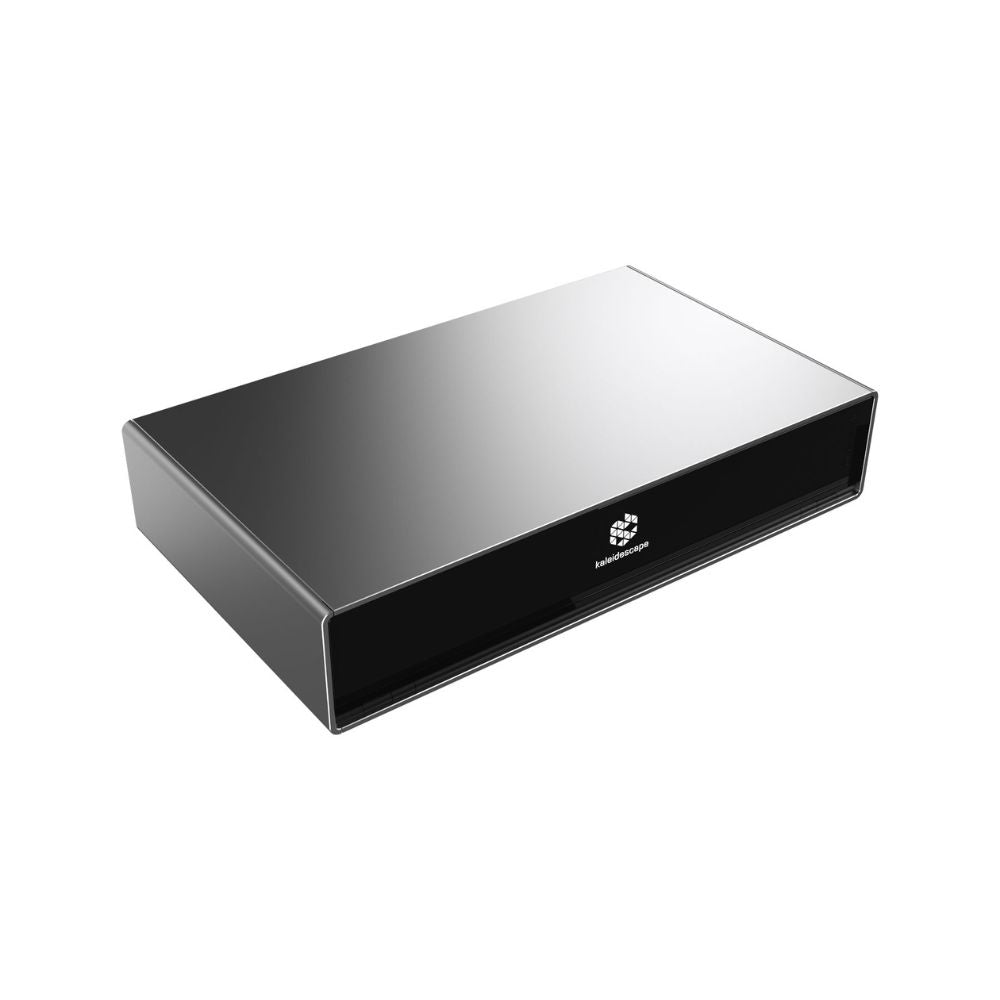

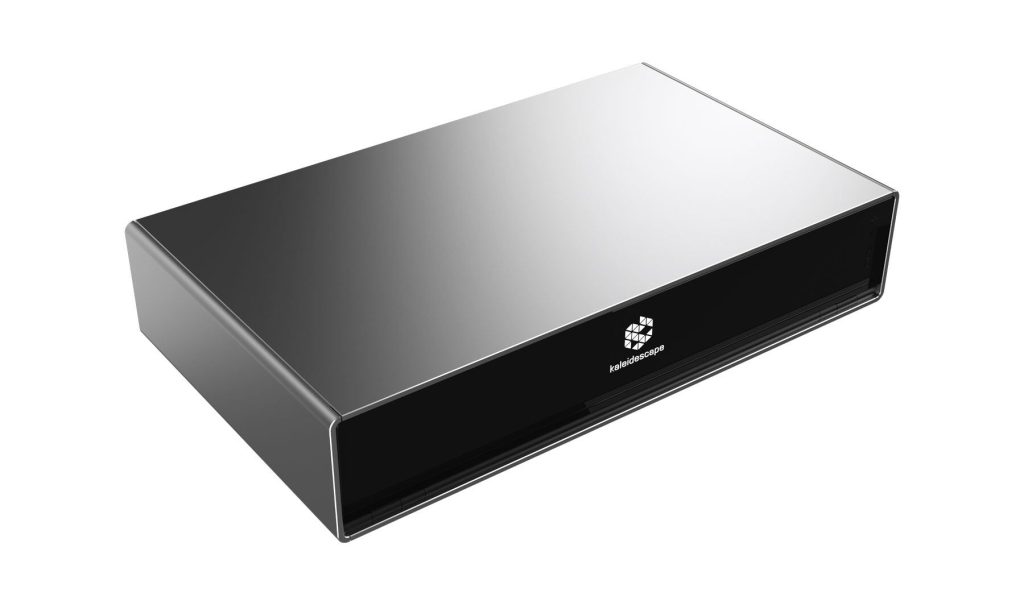

Kaleidescape - Terra Prime Hard Disk Drive (HDD)

Movie Server

$4,995.00

by Kaleidescape
Size
Free Shipping Nationwide

You bought the tech, we’ll cover the rest. We will ship your product free to your door anywhere in the U.S.

NO HASSLE 30 DAYS RETURN

Not happy with an item? No sweat, you have 30 days to return it without any hassle!

PRICE ASSURANCE

We will always work to get you the best available price across all authorized dealers.

DREAM TEAM

Let our experts help make your audio/visual dreams come true!

PREFERRED INSTALLERS

We have a large group of installers across the US. Let us help you find a preferred installer in your area.

Terra Prime movie servers feature an all-new board design, faster processing power, and a faster network.

  • Next-generation movie server with high capacity
  • 2.5 Gigabit Ethernet
  • Enterprise-class hard disk drives
  • Storage options for approximately 1,450 (88TB), 800 (48TB), 350 (22TB), or 130 (8TB) 4K movies
  • Downloads a Kaleidescape high-bitrate 4K movie in as little as eight minutes
  • Distributes up to five simultaneous playback streams (compact)
  • Distributes up to 10 simultaneous playback streams (full-size)
  • Movies can be downloaded on up to five systems; perfect for multiple residences
  • Custom rack mounts sold separately


Overview

We're proud to be an authorized online dealer of Kaleidescape

Terra Prime features an all-new board design with faster processing power and faster network – the only dedicated movie server with 2.5 Gigabit Ethernet. The new servers are available with either high-capacity hard drives (HDD) or fast solid-state drives (SSD).

Terra Prime is our next-generation high-capacity movie server. It can download a Kaleidescape high-bitrate 4K movie in as little as eight minutes and serves up to five simultaneous playback zones (compact) or up to 10 simultaneous playback zones (full-size). Terra Prime 88TB stores approximately 1,450 Kaleidescape high-bitrate 4K movies, and the 48TB stores roughly 800 Kaleidescape fidelity 4K movies. The Terra Prime 22TB stores approximately 350 Kaleidescape fidelity 4K movies, and the 8TB stores roughly 130 Kaleidescape high-bitrate 4K movies.

Faster downloads than its predecessor, with the highest capacity. Terra Prime adds increased performance and storage capabilities. Terra Prime stores movies, TV series, and concerts on an array of enterprise-class hard drives. Content stored on the movie server are played back on Strato players. Made in the USA, Kaleidescape movie servers are custom designed and manufactured for reliable, premium performance. Kaleidescape’s operating system (kOS) is custom developed, managed, and controlled internally, with automatic updates, providing the best experience of any movie server on the market. Terra Prime movie servers can download a Kaleidescape high-bitrate 4K movie in as little as eight minutes, with properly configured 2.5 Gbit/sec capable networking, hardware, and ISP.

Specs

  • MOVIE SERVER
  • Downloads Kaleidescape high-bitrate 4K movies in as little as 8 minutes
  • Compact serves up to 5 simultaneous playbacks of Kaleidescape 4K movies
  • Full-size serves up to 10 simultaneous playbacks of Kaleidescape 4K movies
  • NETWORK
  • 2.5 Gigabit Ethernet (recommended)
  • 1 Gigabit Ethernet (minimum)
  • OTHER CONNECTION
  • • USB 3.0 (reserved)
  • ENVIRONMENT
  • • Operating: 41 to 95°F (5 to 35°C)
  • • Storage: -4 to 140°F (-20 to 60°C)
  • • Relative humidity:
  • 20 to 80% (operation)
  • 5 to 90% (storage)
  • • Maximum operating altitude:
  • 10,000ft (3,048m)
  • VENTILATION
  • • Airflow:
  • Full Size - 10 CFM (17 m3/hr) max
  • Compact - 5 CFM (8.4 m3/hr) max
  • • Minimum 1in (2.5cm) space at the front
  • • Minimum 2in (5cm) space at the rear
  • CERTIFICATIONS
  • • CSA 62368-1
  • • IEC 62368-1
  • • FCC CLASS B
  • • CE
  • • RoHS Compliant

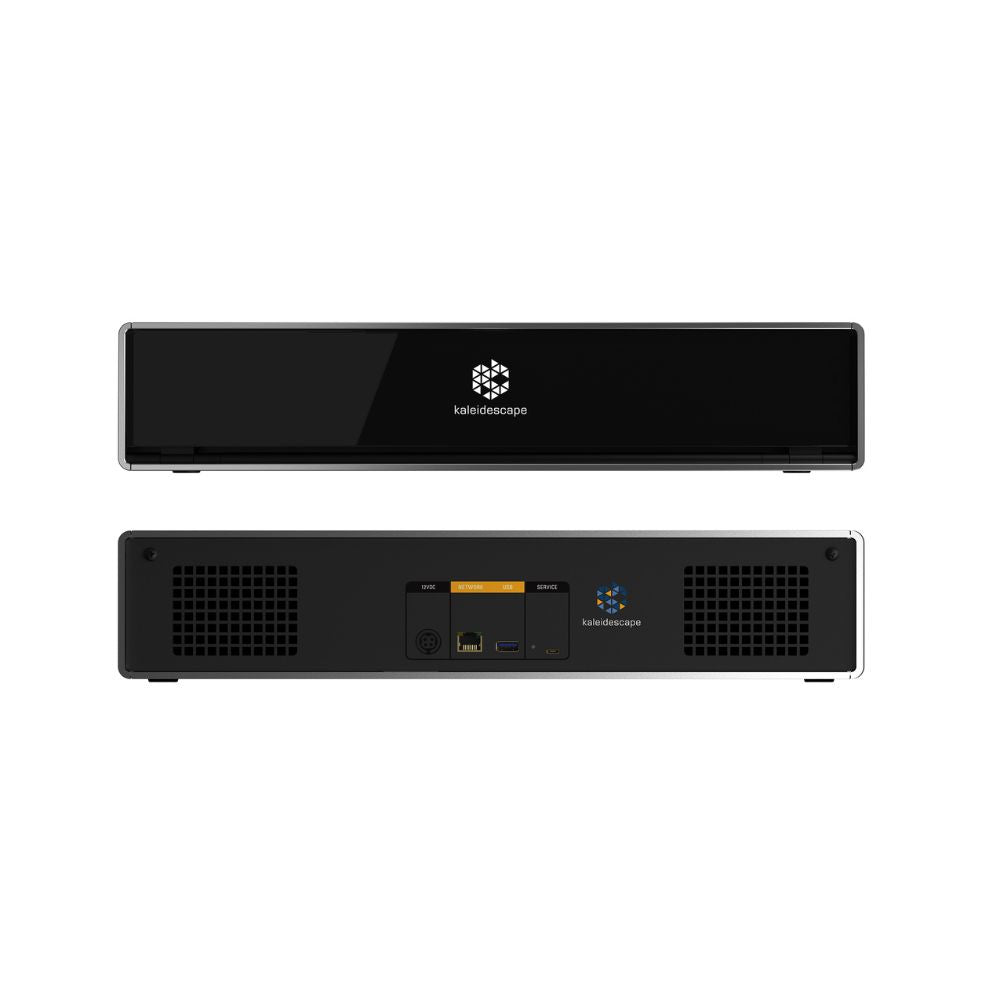

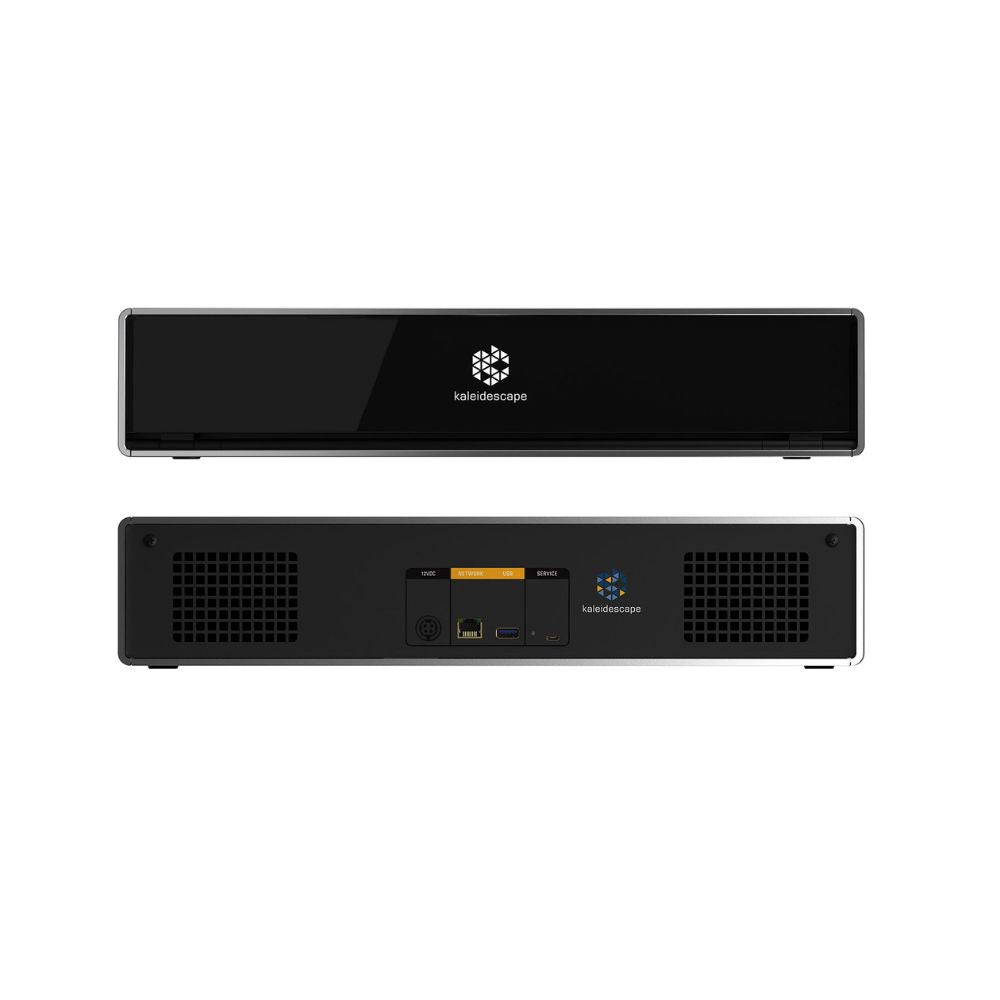

  • FULL SIZE | 88 & 48 TB
  • DIMENSIONS
  • • 17.0×3.5×10.0in (W×H×D)
  • (43.2×8.9×25.4cm)
  • WEIGHT
  • • 15.4lb (7.0kg) with no drives installed
  • • 21.6lbs (9.8kg) with four hard drives
  • FAN AND DRIVE NOISE
  • • Typical: 29 dB(A)
  • POWER
  • • Max consumption: 48W
  • • Typical: 43W
  • • External power adapter:
  • 2.6×1.4×6.5in (6.6×3.5×16.5cm)
  • 150W with detachable line cord
  • 100-240V, 50-60Hz universal input
  • 12VDC @ 12.5A
  • STORAGE
  • • Four removable 22TB or 12TB hard
  • drives (88TB or 48TB total)
  • • 88TB configuration:
  • Stores ~1,450 Kaleidescape highbitrate 4K movies, ~2,300 HD movies,
  • or ~13,500 SD movies
  • • 48TB configuration:
  • Stores ~800 Kaleidescape high-bitrate
  • 4K movies, ~1,300 HD movies, ~7,200
  • SD movies
  • RACK MOUNT (sold separately)
  • • Rack shelf available for mounting one
  • unit in a 19in rack, 2RU space

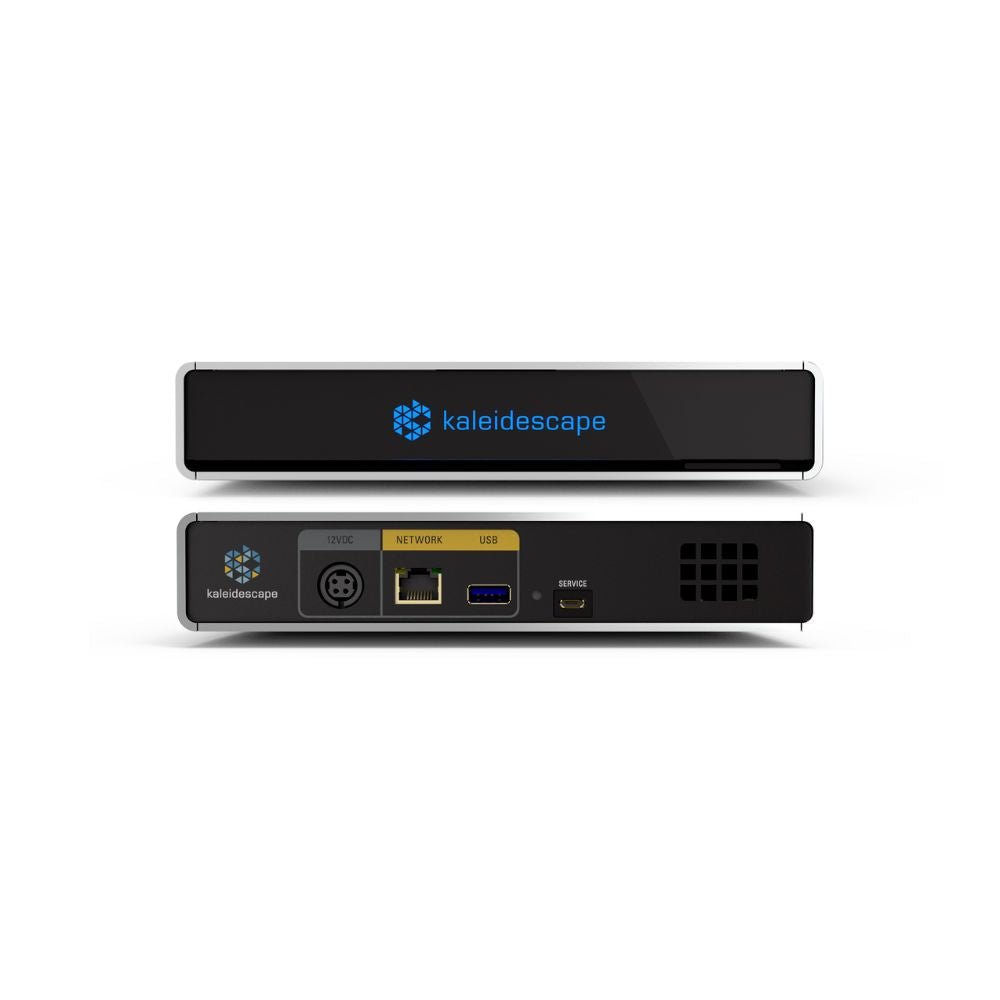

  • COMPACT | 22 & 8 TB
  • DIMENSIONS
  • • 7.87×1.52×14.33in (W×H×D)
  • (20.0×3.9×36.4cm)
  • WEIGHT
  • • 7.2lbs (3.3kg)
  • FAN AND DRIVE NOISE
  • • Typical: 25 dB(A)
  • POWER
  • • Max consumption: 29W
  • • Typical: 24W
  • • External power adapter:
  • 2.6×1.4×6.5in (6.6×3.5×16.5cm)
  • 150W with detachable line cord
  • 100-240V, 50-60Hz universal input
  • 12VDC @ 12.5A
  • STORAGE
  • • One integrated 22TB or 8TB hard drive
  • • 22TB configuration:
  • Stores ~350 Kaleidescape high-bitrate
  • 4K movies, ~600 HD movies, or ~3,300
  • SD movies
  • • 8TB configuration:
  • Stores ~130 Kaleidescape high-bitrate
  • 4K movies, ~220 HD movies, or ~1,200
  • SD movies
  • RACK MOUNT (sold separately)
  • • Rack shelf available for mounting one
  • or two units in a 19in rack, 1RU space


Additional Info

• Serves up to 10 simultaneous Kaleidescape high-bitrate 4K movies (full-size) or up to five (compact) • Terra Prime HDD can download a 4K movie in as little as eight minutes • Kaleidescape 4K movies have lossless audio and reference video • All movies are stored securely and protected by cloud backup • Terra movie servers enable large configurations • Terra Prime HDD 88TB stores ~1,450 Kaleidescape high-bitrate 4K movies • Up to four Terra servers can be combined for more storage
