Vendor:
Bose
Bose Professional EdgeMax 2-Way In-Ceiling Loudspeaker
Revolutionary in-ceiling sound with directional coverage
- $914.00
- $914.00
- Unit price
- per
Bose Authorized Dealer
Need Help?
We're here to help. Call or chat with a Dreamedia specialist.
Free Shipping
Free nationwide shipping available!*
Free Returns
30 day guarantee.
Bose Professional EdgeMax 2-Way In-Ceiling Loudspeaker
Elevate Your Space with Unparalleled Sound
Imagine a sound system that blends seamlessly with your décor, offering an auditory experience that fills every corner of the room without a single visual flaw. The Bose Professional EdgeMax 2-Way In-Ceiling Loudspeaker is not just a speaker; it's an acoustic masterpiece designed to transform any space into a sonic haven.
Engineered to Perfection

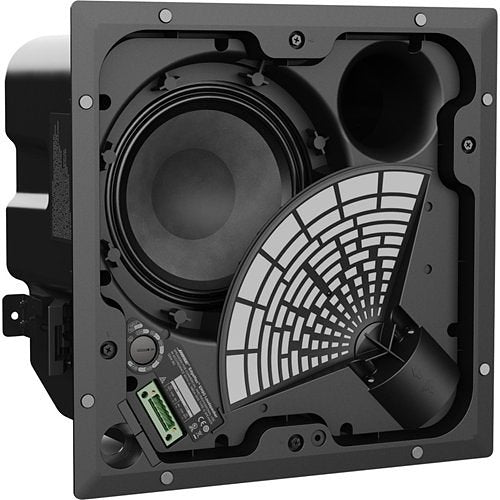

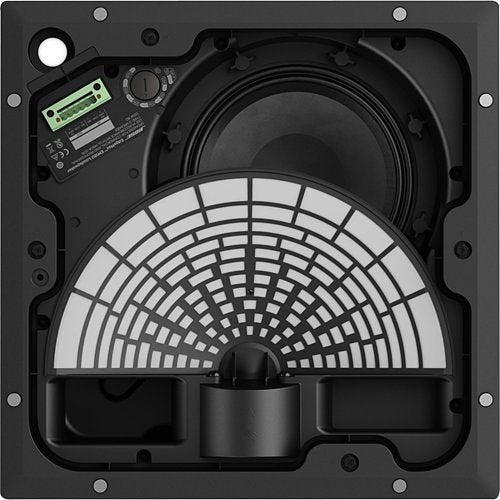

Crafted with meticulous attention to detail, the Bose EdgeMax EM180 features cutting-edge technology and superior materials. The 8-inch woofer, made from carbon fiber, delivers robust and precise bass notes, while the high-frequency compression driver ensures crystal-clear trebles. Housed within an engineered-plastics front baffle with an integrated steel-formed enclosure, this speaker is built to last and impress.
Advanced PhaseGuide® Technology
At the heart of the EdgeMax EM180 lies Bose's proprietary PhaseGuide® technology. This innovation provides a directional 180° sound dispersal pattern, which means the audio reaches every part of the room evenly. The unique asymmetrical vertical pattern cuts through the space, offering room-filling coverage that traditional ceiling speakers can't match.
Aesthetic Integration

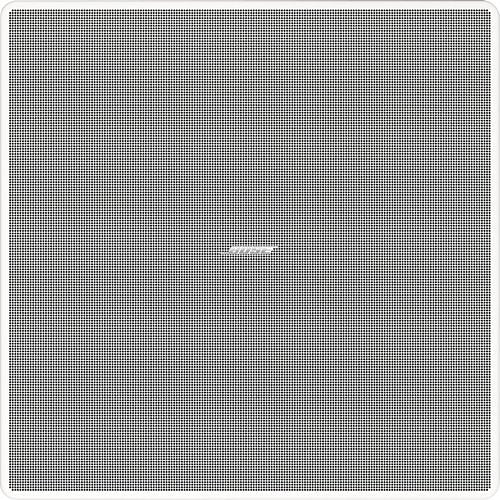

The EdgeMax EM180 is designed to be heard, not seen. The sleek, paintable grille is magnetically attached, allowing for a quick and elegant integration into any interior design. With a minimalist white color that can be painted to match your ceiling, this speaker preserves the aesthetics of your space while delivering unparalleled audio quality.
Installation Made Easy

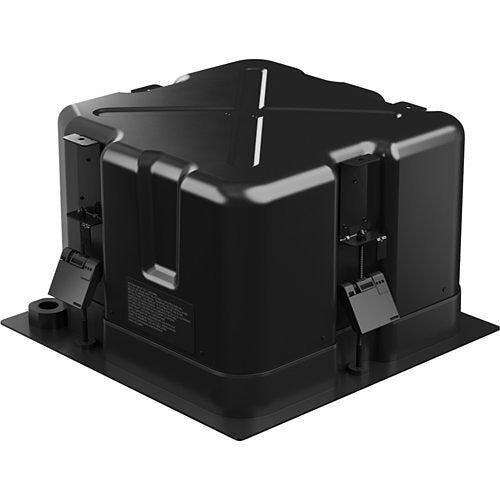

Installing the EdgeMax EM180 is a breeze, thanks to the auto-hold, spring-loaded mounting arms. These arms ensure a secure and straightforward installation process, saving time and hassle. Once mounted, the safety cable attachment points provide additional security, giving you peace of mind.
Versatile Performance
Whether you're designing an audio system for a retail store, restaurant, conference room, or your own living room, the EdgeMax EM180 is versatile enough to meet your needs. Its performance specifications are impressive:
- Frequency Response: 50 Hz - 18 kHz
- Sensitivity: 93 dB SPL
- Maximum SPL: 114 dB SPL (120 dB SPL peak)
- Power Handling: 125 W RMS / 500 W Peak
- Nominal Impedance: 8Ω (transformer bypassed)
Power and Compatibility
The EdgeMax EM180 is compatible with both 70 and 100-volt installations, offering a variety of transformer taps to suit your power needs. With the 8Ω bypass option, you have the flexibility to integrate this speaker into any existing sound system with ease.
Safety and Compliance
Safety is a priority with the EdgeMax EM180. It is UL1480A listed for air-handling (plenum) space installation, ensuring that it meets strict safety standards. The speaker is also in compliance with UL2043, suitable for plenum-space installation.
Warranty and Support
Bose stands behind the quality of the EdgeMax EM180 with a generous 5-year warranty. This commitment to quality ensures that your investment in premium sound is protected for years to come.
Unmatched Audio Experience
The EdgeMax EM180 is not just about filling a room with sound; it's about creating an immersive experience. Its performance evaluations highlight the benefits:
- Room-Filling Coverage: The proprietary Bose PhaseGuide technology ensures unique asymmetrical vertical patterns and comprehensive coverage.
- Direct Sound: The ability to direct sound from the wall to the ceiling optimizes coverage without unwanted reflections.
- Cost Savings: Fewer speakers are needed compared to traditional solutions, providing significant cost savings.
- Sound Quality: Offers a fullness and range of sound beyond that of typical ceiling speakers, perfect for immersive gaming experiences or pseudo-surround sound applications.
- Efficient Power Distribution: Compatible with Bose PowerShare PS604A smart power amplifiers for efficient power distribution.
Features at a Glance
- Proprietary PhaseGuide® technology for superior audio quality and coverage
- Directional 180° sound dispersion, ideal for wall/ceiling boundary areas
- Easy installation with auto-hold, spring-loaded mounting arms
- Compatible with 70 and 100-volt installations, with 8Ω bypass option
- Magnetically attached grille for quick access and aesthetic appeal
- UL1480A listed for air-handling space installation
- Unique asymmetrical vertical pattern for expansive coverage
- 180-degree horizontal coverage for versatile applications
- High-quality construction and design with wide frequency response
Your Dream Audio Experience Awaits
At Dreamedia, we understand the importance of creating the perfect audio environment. Whether for commercial or personal use, the Bose Professional EdgeMax 2-Way In-Ceiling Loudspeaker is a game-changer in the world of sound. Our team is ready to help design your ideal home theater system, featuring this exceptional speaker. Experience sound like never before, enveloping you in a cocoon of crystal-clear audio that enhances every moment.
The Bose Professional EdgeMax 2-Way In-Ceiling Loudspeaker is more than just a speaker; it's an investment in an unparalleled audio experience. Elevate your space and indulge in the richness of sound that only Bose can deliver. Contact Dreamedia today, and let us help you design the home theater system of your dreams.
Our Review
Specifications
General Specifications
- Product Name: Bose Professional EdgeMax 2-Way In-Ceiling Loudspeaker
- Model: 777189-0220
- Speaker Type: In-ceiling, 2-way
- Woofer Size: 8-inch
- Woofer Type: Carbon fiber
- Tweeter Type: High-frequency compression driver
- Crossover Type: 2-way passive crossover
- Transformer Type: 70/100V transformer
- Mounting: Auto-hold, spring-loaded mounting arms
- Grille: Magnetically attached grill
- Safety Agency Ratings: UL1480A, UL2043
- Environmental Testing: Indoor only; UL1480A listed, in compliance with UL2043 for plenum-space installation
- Color: White, paintable
Physical Specifications
- Cutout Diameter: 13.6 in × 13.6 in × 9.3 in (345 mm × 345 mm × 236 mm)
- Enclosure Material: Engineered-plastics front baffle with integrated steel-formed enclosure
- Grille Material: Microperforated steel, powder-coated finish, paintable
- Net Weight: 22.2 lb (10.1 kg)
- Product Dimensions (H×W×D): 13.4 in × 13.4 in × 9.8 in (339 mm × 339 mm × 249 mm) backcan; 15.4 in × 15.4 in × 0.5 in (390 mm × 390 mm × 13 mm) grille flange
- Shipping Weight: 29.0 lb (12.5 kg)
Performance Specifications
- Frequency Range: 45 Hz – 20,000 Hz
- Horizontal Coverage: 180°
- Vertical Coverage: 75°
- Maximum SPL at 1 m: 114 dB continuous, 120 dB peak
- Nominal Impedance: 8 Ω (transformer bypassed)
- Power Handling, Continuous: 125 W
- Power Handling, Peak: 500 W
- Sensitivity (SPL/1 W at 1 m): 93 dB
- Transformer Taps, 100V: 5, 10, 20, 40, 80 W, bypass
- Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
- Crossover Frequency: 1 kHz
Features
- PhaseGuide Technology: Yes
- Room-Filling Coverage Patterns: Yes
- Mounting Near Wall-Ceiling Boundaries: Yes
- Improved Audio Quality and Coverage: Yes
- Reduced Number of Required Units: Yes
- Unique Asymmetrical Vertical Pattern: Yes
- Improved Room Visual Appearance: Yes
- High-Frequency Compression Driver: Yes
- Wall-Boundary Loading: Yes
- Recommended Signal Processing: Recommended but not required
Applications
- Retail Stores: Yes
- Restaurants and Bars: Yes
- Concourse: Yes
- Transportation Facilities: Yes
- Resorts and Hospitality Venues: Yes
- Houses of Worship: Yes
- Conferencing: Yes
Mounting/Rigging Provisions
- QuickHold Spring-Loaded Mounting Arms: 4
- Safety Cable Attachment Points: 4 M6
