Panamorph DCR

Direct Attach Lens System

$5,999.99
Free Shipping Nationwide

You bought the tech, we’ll cover the rest. We will ship your product free to your door anywhere in the U.S.

NO HASSLE 30 DAYS RETURN

Not happy with an item? No sweat, you have 30 days to return it without any hassle!

PRICE ASSURANCE

We will always work to get you the best available price across all authorized dealers.

DREAM TEAM

Let our experts help make your audio/visual dreams come true!

PREFERRED INSTALLERS

We have a large group of installers across the US. Let us help you find a preferred installer in your area.

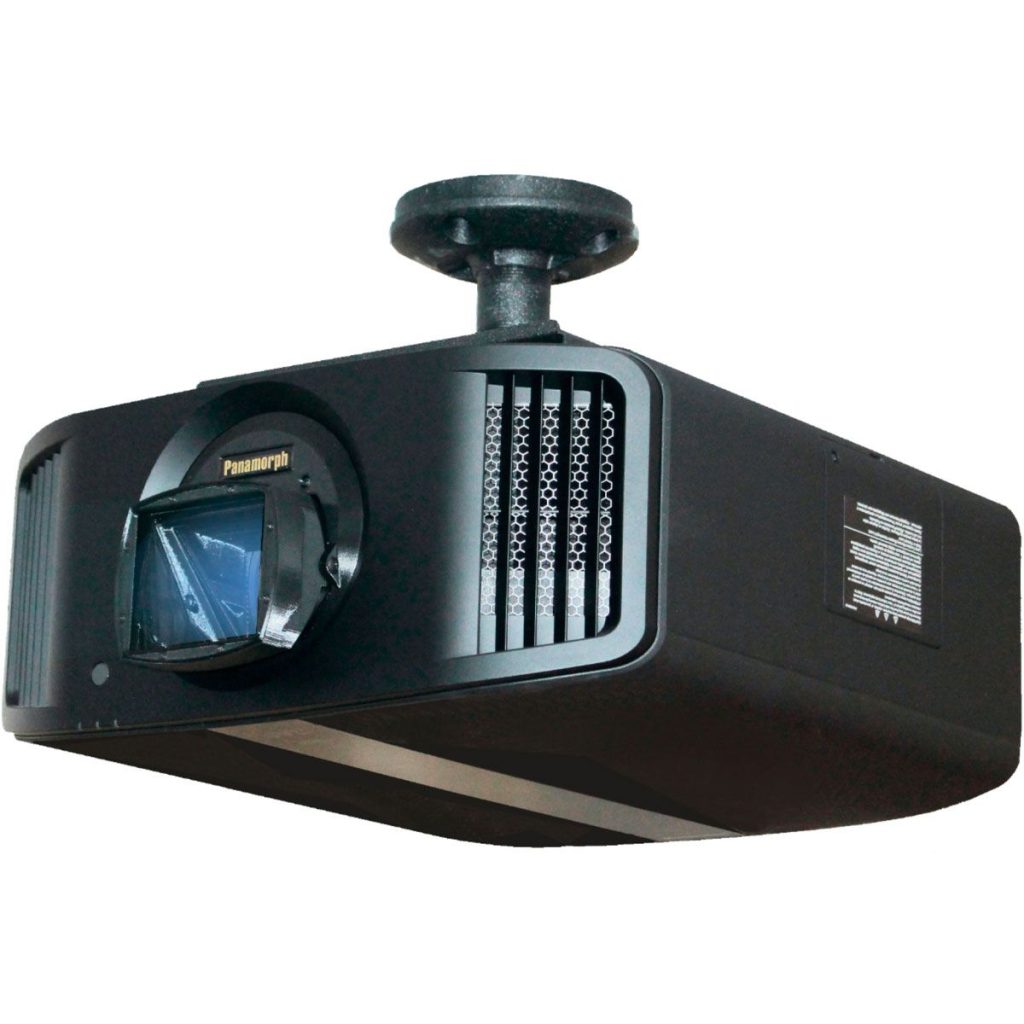

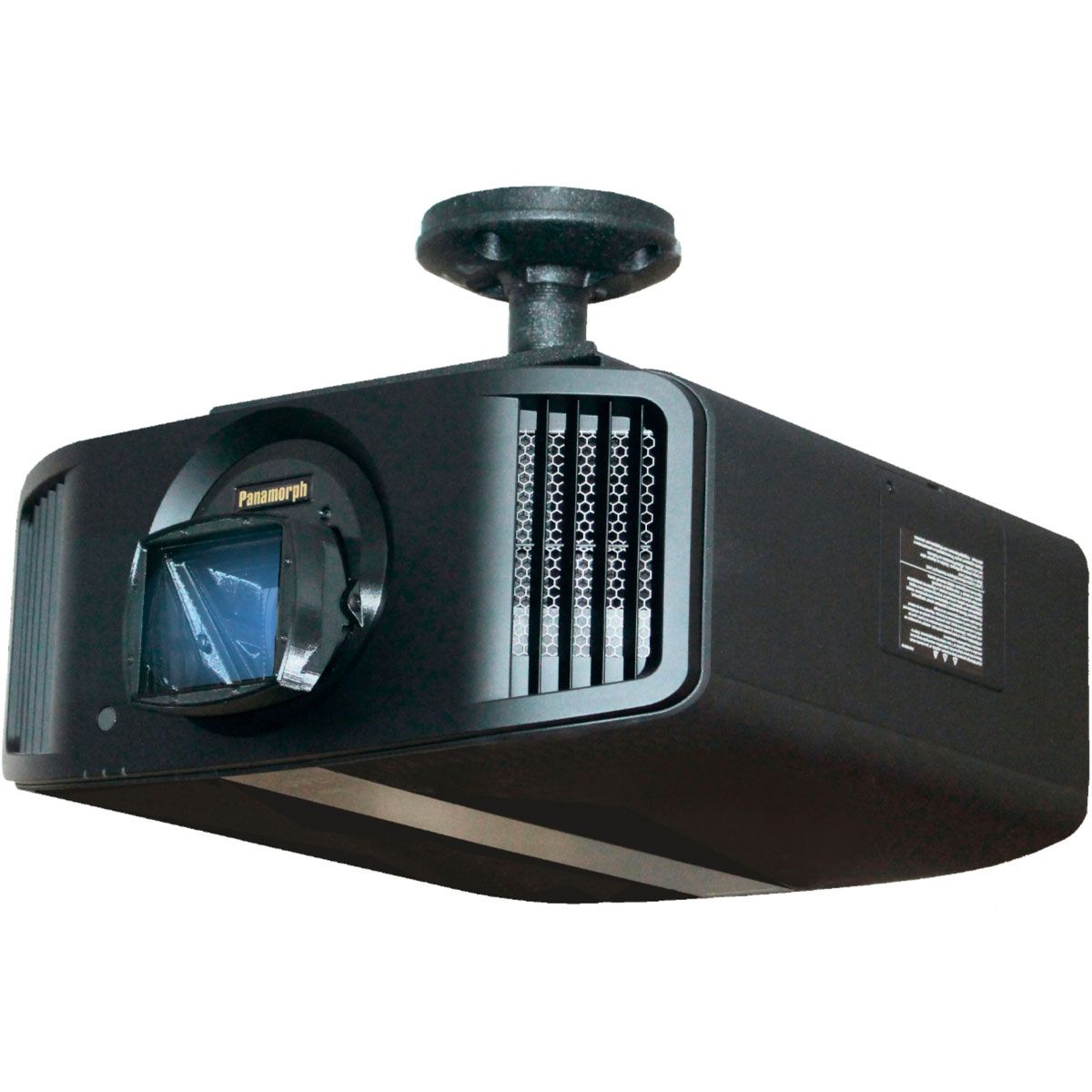

The full performance of our larger DCR lens in a smaller form designed to attach directly into the lens openings of specific 17:9 projectors

Overview

We're proud to be an authorized online dealer of Panamorph

Converting your Projector to Cinema 4K

Over 80% of the most popular movies are made in the standard commercial cinema 2.4:1 aspect ratio and even today’s streaming shows are migrating to this format. This content is meant and created to be the largest experience in your theater but on a flat panel TV or 16:9 projection system it is actually displayed as the smallest experience with the lowest performance because millions of display pixels are turned off to create black bars (yes, even with “lens memory zooming“). But now today’s most popular projector models also include anamorphic upconversion modes for use with an external anamorphic lens to convert their full 4K performance into the larger 2.4:1 cinema format for the highest brightness and detail – all while still providing modes for watching 16:9 content. The anamorphic big screen advantage means your projector can actually deliver higher detail than you’ll see in most commercial theaters and certainly higher than you can see with a flat-panel TV.

The Original Movie is Surrounded by Unused Black Display Pixels

Consumer cinema-format 4K movies are delivered using 3840 horizontal x 1600 vertical pixels to maintain their original 2.4:1 aspect ratio (ie 3840/1600=2.4). When displayed in the center of the 4096 x 2160 pixels of a 4K/4096 projector there are 2,703,360 unused black display pixels surrounding the movie or 2,150,400 unused display pixels when displayed in the center of the 3840 x 2160 pixels of a 4K/UHD 16:9 projector.

The Upconverted Movie Uses The Repurposed Black Pixels

Anamorphic upconversion is now an included option in many 16:9 4K (UHD) projectors. This upconversion applies digital scaling and possibly other image processing algorithms to convert the movie to a higher resolution of 4096 x 2133 (17:9 projectors) or 3840 x 2133 (16:9 projectors) using 43% (17:9) or 33% (16:9) more display pixels. While no real, additional source resolution is implied, upconversion from real movie content has been proven to not only provide substantial additional image brightness from these millions of additional pixels but also additional realistic detail and subsequently improved clarity. However, without an anamorphic lens, this enhancement leaves the movie appearing vertically stretched by 25% (17:9) or 33% (16:9).

The Upconverted Movie on a 2.40:1 Screen Through a Panamorph Lens

The upconverted movie is optically compressed through an external Panamorph DCR anamorphic lens to correct the residual vertical stretch from the upconversion process. This restores the original 2.4:1 movie aspect ratio while retaining the significant performance enhancement from the upconverted pixels for greater visual clarity combined with a net brightness increase of approximately 38% over projection of the original movie.

Specs

  • Attachment Lens system attaches directly into projector lens opening using proprietary retaining system. Minimum Throw Ratio 1.4:1 (throw distance divided by 2.40:1 screen width) with edge distortion of approximately 0.006 x screen width (less with higher throw ratio) Recommended Screen Format Flat, 2.40:1 format with at least 1.5" border Recommended Projector Position Horizontally centered on screen +/- 3" Vertically positioned from 10% below to 30% above top of screen (ideally at screen top) Compatibility DCR-J1 JVC DLA-NZ7 (and respective older models) JVC DLA-NZ8 (and respective older models) JVC DLA-RS2100 JVC DLA-RS3100 DCR-S1 Sony VPL-VW295ES Sony VPL-VW325ES Sony VPL-VW695ES Sony VPL-VW715ES Sony VPL-VW270ES Sony VPL-VW290ES Sony VPL-VW570ES Sony VPL-VW590ES DCR-S2 Sony VPL-VW885ES Sony VPL-VW915ES Sony VPL-VW760ES Sony VPL-VW790ES DCR-S3 Sony VPL-XW5000ES DCR-S4 Sony VPL-XW6000ES Sony VPL-XW7000ES CDR-E1 Epson LS12000
