Bose Professional DesignMax Pendant Loudspeaker - Dreamedia AV

Vendor: Bose

Bose Professional DesignMax Pendant Loudspeaker

Commercial space high-fidelity weather-resistant audio

$499.95; $499.95
Unit price: per

Product variants

Bose Authorized Dealer

Purchase Contact Us

Contact us if you are interested in buying this product.

Quantity:

Need Help?

We're here to help. Call or chat with a Dreamedia specialist.

877-417-9000 Chat the crew

Free Shipping

Free nationwide shipping available!*

Free Returns

30 day guarantee.

Bose Professional DesignMax Pendant Loudspeaker

Unparalleled Audio Experience in Any Environment

Imagine stepping into a space where the sound envelops you, where every note and every whisper resonates with clarity and depth. This is the experience the Bose Professional DesignMax Pendant Loudspeaker offers. As an integral part of your commercial sound installation, this loudspeaker is designed to deliver an audio performance that captures the essence of your sound requirements.

Design and Aesthetics

Crafted with meticulous attention to detail, the Bose DesignMax Pendant Loudspeaker boasts a sleek, pendant form factor that blends seamlessly into any environment. Whether it's suspended in a chic café, a vibrant retail space, or within the sophisticated environs of a corporate lobby, the speaker's elegant design is as much a visual statement as it is a testament to Bose's acoustic excellence.

Coaxial two-way design ensures rich lows and clear highs

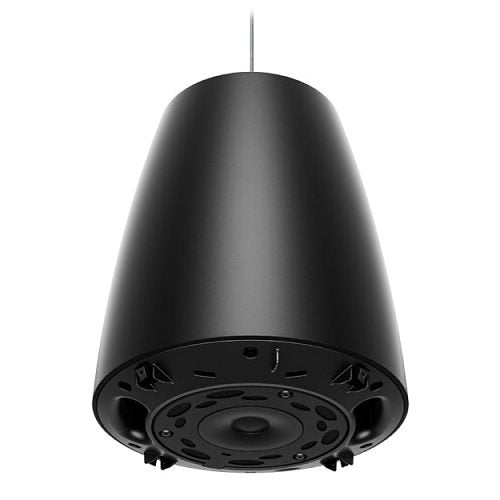

Elegant pendant design with a recessed single-point suspension system
Durable enclosure and grille materials ensure longevity and sustained performance
Rotatable and removable logo for a customizable aesthetic appeal

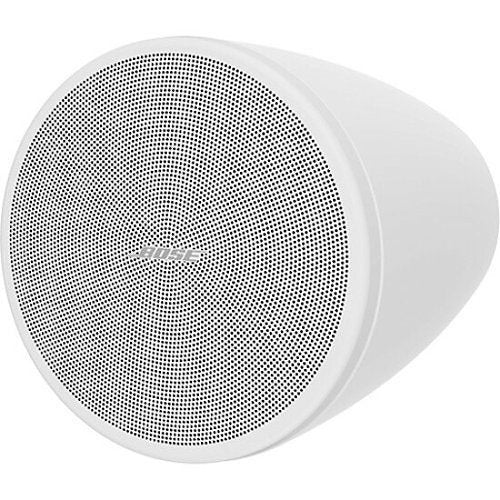

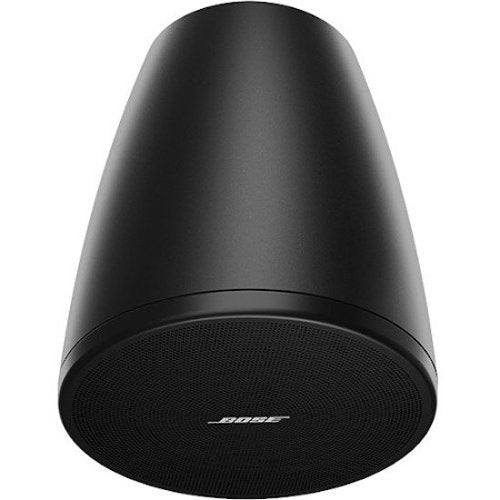

Available in black or white to complement any décor

Superior Audio Performance

The Bose Professional DesignMax Pendant Loudspeaker is engineered to deliver a sound that is as expansive as it is precise. The speaker's wide frequency range and high sensitivity ensure that whether it's the subtle nuances of a string quartet or the pulsating beats of electronic music, every genre is reproduced with exceptional fidelity.

Frequency Range: 62 Hz – 20 kHz for detailed sound reproduction
Maximum SPL: 99 dB for powerful audio output
Coverage Horizontal: 130° conical for consistent listening experience
Power Handling: 25 W continuous, 100 W peak for robust sound delivery
Crossover Frequency: 1.7 kHz ensures a smooth transition between high and low frequencies

Installation and Durability

With the Bose Professional DesignMax Pendant Loudspeaker, installation is a breeze. The recessed single-point suspension system ensures a secure and unobtrusive setup, making it an ideal choice for spaces where aesthetics are as important as audio quality. Additionally, with an IP55 rating, this loudspeaker is equipped to withstand outdoor conditions, ensuring that your investment is protected against the elements.

Quick and secure installation with the included suspension cables and fasteners
Weather-resistant design with an IP55 rating suitable for outdoor use
Operating Temperature: -25 °C to 70 °C to withstand harsh conditions

Connectivity and Compatibility

The Bose DesignMax Pendant Loudspeaker is designed to be as versatile in its connectivity as it is in its performance. Compatible with select Bose Professional DSPs and amplifiers, this loudspeaker can be easily integrated into existing systems, making it a flexible option for a variety of commercial settings.

DSP and Amplifier Compatibility: Works seamlessly with select Bose Professional products
Transformer Taps: Versatile options for 70V and 100V systems
Nominal Impedance: 8 Ω for easy integration into various sound systems

Safety and Compliance

Safety is paramount in commercial environments, and the Bose Professional DesignMax Pendant Loudspeaker adheres to rigorous safety standards. With a range of safety agency ratings, you can be assured that this loudspeaker not only sounds exceptional but also meets the highest safety requirements.

UL-1480A, S5591/UL Listed
NFPA70 & NFPA90-A, CE compliant
UL 2239 for suspension cable

What's in the Box?

Your Bose Professional DesignMax Pendant Loudspeaker comes with everything you need for a hassle-free installation.

Installation Guide
Cable Fastener Tools (2)
Cable Fasteners (2)
Suspension Cables (2)
Cable Ties (8)

Warranty and Support

With a 5-year warranty term, you can rest assured that your investment is covered. Bose's commitment to quality and customer satisfaction means that you can expect reliable performance and responsive support throughout the lifetime of your product.

Key Benefits at a Glance

Rich, high-quality sound output for an immersive audio experience
Suitable for outdoor use with a robust IP55 rating
Sleek and elegant design for aesthetic integration into any commercial space
Wide frequency range ensures every detail of the sound is captured
Weather-resistant for durable outdoor use
Easy and secure installation with the provided mounting system
Compliant with safety agency ratings for peace of mind

Transform Your Space with Sound

The Bose Professional DesignMax Pendant Loudspeaker is more than just a sound system; it's an investment in transforming your commercial space into an auditory masterpiece. From the moment it's installed, the speaker becomes an integral part of the environment, enhancing every experience with unparalleled sound quality.

Whether it's creating an inviting atmosphere for customers, setting the tone for a productive workspace, or simply delivering an exceptional listening experience, the Bose Professional DesignMax Pendant Loudspeaker is the choice for those who refuse to compromise on audio quality or aesthetic design.

Available Now at Dreamedia

Dreamedia is your trusted partner in designing and installing the ultimate home theater and commercial sound systems. Our team of experts is ready to help you integrate the Bose Professional DesignMax Pendant Loudspeaker into your space, ensuring that every note, every beat, and every word is heard exactly as intended.

Embrace the power of premium sound with the Bose Professional DesignMax Pendant Loudspeaker, and let us at Dreamedia bring your audio vision to life. Contact us today to begin your journey to audio excellence.

Our Review

Bose Professional DesignMax Pendant Loudspeaker Review

Introduction

The Bose Professional DesignMax Pendant Loudspeaker emerges as a compelling addition to the realm of commercial audio solutions. With the promise of Bose's reputable sound engineering, this loudspeaker aims to deliver not just in performance but also in versatility and design. As we delve into the specifics, we'll see how it stands up to the demands of professional audio environments and whether it indeed harmonizes technical prowess with aesthetic appeal.

Design and Aesthetics

Upon first glance, the Bose DesignMax Pendant Loudspeaker carries an elegance that is expected from Bose products. It sports a minimalist yet sophisticated look, available in both black and white color options, ensuring it can blend seamlessly into a variety of decor schemes. The color choices are practical, considering white can complement light ceilings, while black can recede into darker environments or stand out as a deliberate design element.

The loudspeaker's form factor, measuring 13.4 inches in height (with bracket), 8.7 inches in width, and a depth of 9.0 inches, denotes a substantial presence without being obtrusive. Its recessed single-point suspension system is not just an aesthetic choice but a functional one, allowing for a cleaner ceiling line and less visual clutter, which is crucial in spaces where design is as valued as sound quality.

Build Quality and Durability

Bose is known for its attention to build quality, and the DesignMax Pendant Loudspeaker appears to continue this tradition. The materials and construction are designed to withstand the rigors of commercial use. An IP55 rating signifies a robust build that can resist dust and low-pressure water jets, making this loudspeaker a suitable choice for outdoor patios, alfresco dining areas, and indoor spaces exposed to moisture.

The operational temperature range from -25 °C to 70 °C (-13 °F to 158 °F) further reinforces its durability, ensuring that whether in a chilly ski lodge or a sun-drenched beachside bar, the DesignMax Pendant Loudspeaker remains a reliable sound source.

Features

Bose's coaxial two-way design deserves mention, as it is integral to the speaker's performance. This architecture allows for rich lows and clear highs, a balance that is often challenging to achieve in pendant speakers. The coaxial arrangement, positioning the tweeter and woofer along the same axis, also aids in creating a more uniform sound field, which can enhance the listening experience regardless of the listener's position in the room.

Power and Transformer Taps

With a power handling capacity of 125 watts, the DesignMax Pendant Loudspeaker is poised to deliver ample volume and clarity in various settings. The inclusion of transformer taps is a testament to the speaker's flexibility, catering to different power requirements and making it adaptable to various commercial audio installations. This versatility is invaluable for installers and system integrators who need to match the loudspeaker to diverse power outputs and specific audio needs.

Weather Resistance and Operating Conditions

The IP55 rating is not to be understated. It ensures that the DesignMax Pendant Loudspeaker is not only capable of withstanding environmental elements but also maintains its sound integrity when faced with such challenges. This weather resistance is crucial for outdoor installations, where equipment is subjected to more demanding conditions.

Performance

In the realm of sound quality, Bose's DesignMax Pendant Loudspeaker is expected to excel, and rightfully so. The lows are reported to be rich, which is impressive for a pendant design where bass reproduction can sometimes be lacking. The highs are described as clear, an attribute that will likely contribute to the speaker's ability to articulate the nuances in music and spoken word.

The specified frequency range of 62 Hz – 20 kHz is broad enough to capture the full spectrum of audible sound, ensuring that music and voice are reproduced with detail and fidelity. This wide frequency range is particularly beneficial for environments where background music or paging needs to be clearly heard and understood.

Sound Dispersion and Experience Consistency

Sound dispersion is a critical factor in commercial audio, and the DesignMax Pendant Loudspeaker aims to provide a consistent listening experience throughout the room. This uniformity means that customers or patrons will enjoy the same audio quality whether they are directly beneath the speaker or at the periphery of its coverage area.

Installation and Integration

The QuickHold U-bracket is a highlight in the installation process, designed for quick and secure mounting. This feature is not just a time-saver for installers but also reduces the room for error during installation. Integration into existing sound systems is made easier with the speaker's compatibility, allowing for a smoother transition when upgrading or expanding audio setups.

Safety and Compliance

Safety is paramount in commercial settings, and Bose ensures peace of mind with the DesignMax Pendant Loudspeaker's compliance with various safety agency ratings, including UL-1480A and CE. These certifications indicate that the product has passed rigorous testing for safe operation, an often overlooked but essential aspect of commercial audio equipment.

Use Cases

The Bose DesignMax Pendant Loudspeaker is tailored for a wide range of commercial settings, from retail spaces to hospitality venues. Its sound quality and design are suited for areas where background music is essential to the ambiance, as well as locations where clear voice announcements are a priority. The speaker's versatility and resilience make it an excellent choice for both indoor and outdoor applications.

Pros and Cons Recap

Pros:
- High-quality sound output with rich lows and clear highs.
- Elegant design available in black or white, enabling integration into any space.
- Quick and secure installation with the QuickHold U-bracket.
- Wide frequency range for detailed sound reproduction.
- IP55 rating and broad operating temperature range make it suitable for outdoor use.
- Versatile transformer taps cater to different power requirements.
- Compliant with safety standards, ensuring reliable operation.

Cons:
- The size may be slightly bulky for certain environments, potentially impacting the visual aesthetic.
- The premium build and feature set may result in a price point that could be prohibitive for some budgets.

Final Thoughts

The Bose Professional DesignMax Pendant Loudspeaker stands as a robust, well-designed option for commercial audio installations that require both aesthetic discretion and acoustic performance. Its blend of sound quality, build resilience, and installation ease positions it as a top contender in its category. While the investment may be significant, the returns in reliability, sound quality, and design integration justify the cost for businesses that prioritize a superior audio environment. When compared to competing products, the DesignMax Pendant Loudspeaker holds its own, offering a comprehensive package that Bose is renowned for.

Specifications

Design

Type: Coaxial two-way
Dispersion Alignment System: Yes
Form Factor: Pendant with recessed single-point suspension system
Enclosure Material: Engineered plastics
Grille Material: Perforated steel with powder-coated finish
Logo: Rotatable, removable

Audio Performance

Frequency Range: 75 Hz – 20 kHz
Coverage Horizontal: 130° conical
Maximum SPL at 1 m: 99 dB
Nominal Impedance: 8 Ω (transformer bypass)
Power Handling Continuous: 25 W
Power Handling Peak: 100 W
Sensitivity (SPL/1 W at 1 m): 84 dB
Crossover Frequency: 1.7 kHz
High-Frequency Transducer: 1 × 0.75 in (20 mm) neodymium dome tweeter
Low-Frequency Transducer: 1 × 3.25 in (83 mm) woofer
Driver Protection: High-pass protection at 80 Hz with minimum 24 dB/octave filter

Installation and Mounting

Mounting Provisions: 1 suspension attachment point, 1 safety cable attachment point

Physical Characteristics

Product Dimensions (H×W×D): 8.2 in × 9.8 in (207 mm × 248 mm)
Net Weight: 5.5 lb (2.5 kg)
Shipping Weight: 15.4 lb (7.0 kg)
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)

Environmental and Safety Ratings

Environmental Testing: Indoor only
Safety Agency Ratings: UL-1480A, S5591/UL Listed, NFPA70 & NFPA90-A, CE compliant, UL 2239 for suspension cable

Color Options

Available Colors: Black (similar to RAL 9005), white (similar to RAL 9003), paintable

Accessories Included

Installation Guide: 1
Cable Fastener Tools: 2
Cable Fasteners: 2
Suspension Cables: 2, 15.0 ft (4.5 m) each
Cable Ties: 8

Additional Features

DSP or EQ Requirement: No
DSP and Amplifier Compatibility: Compatible with select Bose Professional DSPs and amplifiers
Transformer Taps 100V: 6, 12, 25 W, bypass
Transformer Taps 70V: 3 W, 6 W, 12 W, 25 W, bypass
Customizable Logo: Removable
