AudioControl Avalon G4 (Black)

4-channel power amplifier

$2,490.00
by AudioControl
Free Shipping Nationwide

You bought the tech, we’ll cover the rest. We will ship your product free to your door anywhere in the U.S.

NO HASSLE 30 DAYS RETURN

Not happy with an item? No sweat, you have 30 days to return it without any hassle!

PRICE ASSURANCE

We will always work to get you the best available price across all authorized dealers.

DREAM TEAM

Let our experts help make your audio/visual dreams come true!

PREFERRED INSTALLERS

We have a large group of installers across the US. Let us help you find a preferred installer in your area.

Using the award winning Savoy G3 amplifier as a basis, the AudioControl Avalon G4 delivers exceptional detail and clarity thanks to an innovative and highly efficient Class H design that effortlessly achieves 230 watts per channel, all channels driven.

Watch our video review

Overview

We're proud to be an authorized online dealer of AudioControl

Using the award winning Savoy G3 amplifier as a basis, the AudioControl Avalon G4 delivers exceptional detail and clarity thanks to an innovative and highly efficient Class H design that effortlessly achieves 230 watts per channel, all channels driven. The Class H design topology provides superb audio quality and bullet-proof reliability while reducing heat dissipation from a compact form factor. The Avalon G4 also features AudioControl’s LightDrive™ anti-clipping protection circuit, which protects loudspeakers from clipping and distortion even in extreme conditions such as a highly dynamic action movie soundtrack.

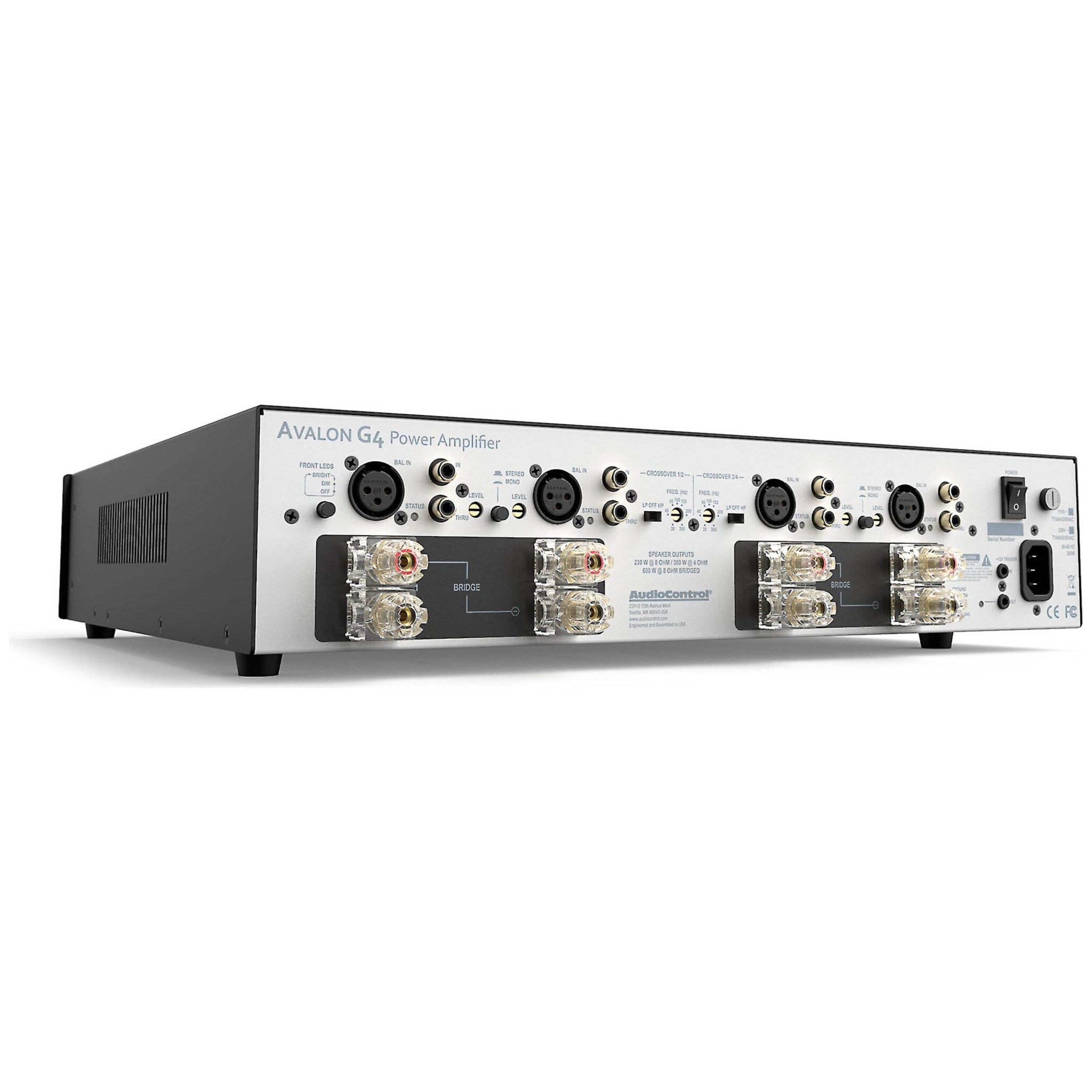

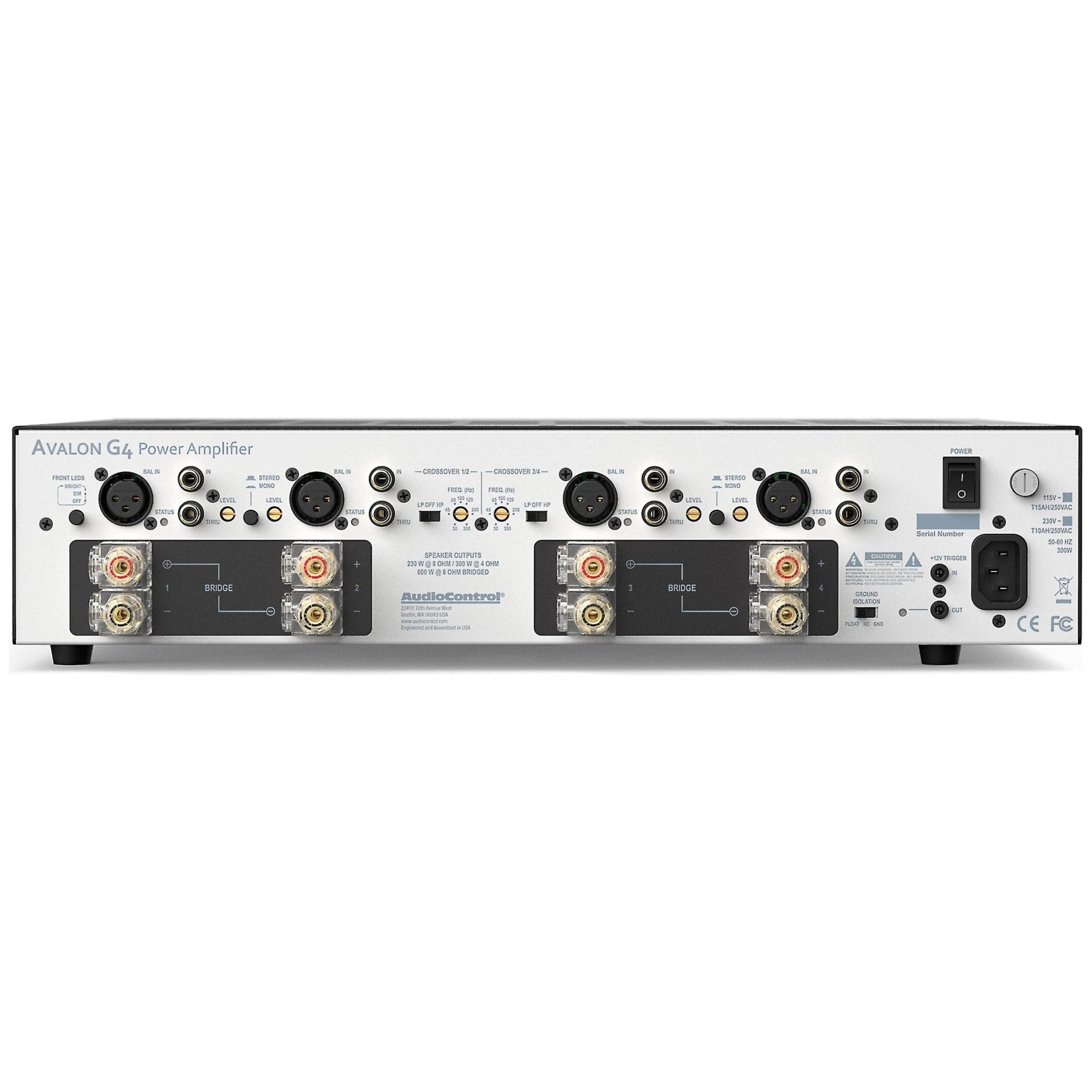

The Avalon G4 can be easily configured as a 4 channel amplifier, a powerful 2-channel amplifier or as a 2.1 solution without any need for DSP management. Each pair of channels features hi/lo/bypass crossover controls, balanced (XLR) and unbalanced (RCA) inputs as well as RCA throughputs to achieve multiple configuration options. The Avalon G4 also features independent channel level controls, remote power control triggers, and audiophile-grade 5-way binding posts.

The Made in USA Avalon G4 has been designed as a perfect match to AudioControl’s home theater processors and is ideally suited for immersive surround formats or as a premium standalone power amplifier for nearly any home audio system.

Specs

  • Inputs: 4 RCA Unbalanced, 4 XLR Balanced
  • Input Sensitivity: 1.42 Vrms for full output
  • Maximum Input Voltage: 2.7 Vrms
  • Input Impedance: 100 kΩ
  • Amplifier Channels: 4
  • Power Output (8Ω): 230 watts per channel
  • Power Output (4Ω): 300 watts per channel
  • Power Ouput (8Ω Bridged Mono): 600 watts
  • Minimum Speaker Load: 4Ω
  • Damping Factor: >450
  • Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
  • Signal to Noise: >102dB, A-wtd ref Full Output
  • Frequency Response: 10 Hz -20 kHz ±1dB
  • Remote Power Trigger: +12 VDC or Dry Contact Closure
  • Peak AC Power Draw (full output 8Ω): 1200 watts
  • Typical AC Power Draw (all channels driven): 400 watts
  • Protection: clipping, short circuit, thermal, DC offset
  • Dimensions: 17”W x 16.5”D x 3.5”H (2U)
  • Weight: 38.0lbs 17.2kg)


Additional Info

features

  • Award winning theater amplifier technologies
  • Four channel home theater amplifier
  • Multi-mode operation: 4 channel, 2.1 channel, and high-power 2 channel
  • 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
  • 600 watts at 8 ohms bridged
  • Stable into low impedances
  • Stereo/mono operation
  • Unparalleled Energy Efficiency
  • High Definition BiMOS Outputs
  • Cool Running Class H Operation
  • LightDrive Anti-Clipping Protection Circuitry
  • 5-way Binding Posts
  • Unbalanced RCA inputs with pass through
  • Balanced XLR Inputs
  • Bullet-Proof Reliability
  • Remote 12 volt Trigger
  • Perfect paired with AudioControl’s Maestro M9 or M5 Preamplifiers
