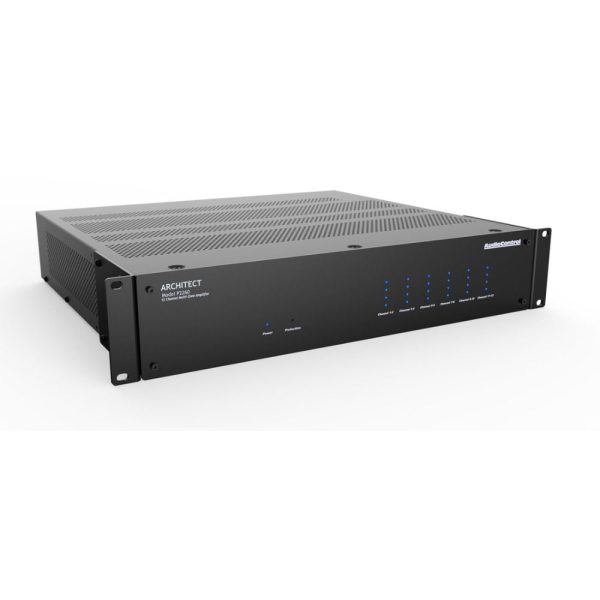

AudioControl - ARCHITECT MODEL P2260

12 CHANNEL MULTI-ZONE HIGH-POWER AMPLIFIER

$2,990.00

Free Shipping Nationwide

You bought the tech, we’ll cover the rest. We will ship your product free to your door anywhere in the U.S.

NO HASSLE 30 DAYS RETURN

Not happy with an item? No sweat, you have 30 days to return it without any hassle!

PRICE ASSURANCE

We will always work to get you the best available price across all authorized dealers.

DREAM TEAM

Let our experts help make your audio/visual dreams come true!

PREFERRED INSTALLERS

We have a large group of installers across the US. Let us help you find a preferred installer in your area.

This is a Dreamedia+ product which includes white glove service, professional setup and calibration. Due to the complexities of the this product we would like to schedule a free video consultation for you and Dreamedia specialist. This will ensure it is the proper selection for your space, equipment and budget. Don’t forget that we can assist with crating a complete home cinema design! We offer acoustic analysis, seating charts, screen size, equipment lists, system design, renderings, and even 3D flythrough animations. Let our DREAM team bring your vision to LIFE!

The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series with an industry leading 100 Watts RMS per channel into 8 ohms, 200 watts per channel into 4 ohms; all channels driven.

The P2260 uses a cool running proprietary design, including AudioControl’s LightDriveTM anti-clipping protection and features input busing capability, output pass-thru, master 12V trigger in/out plus local 12V trigger inputs on all zones, signal sensing as well plus coax SPDIF inputs for digital sources.

Available in a robust black powder coat finish, the Architect Model P2260 is designed, engineered and manufactured at AudioControl’s manufacturing facilities located in Seattle, USA. The Architect ‘P’ series comes with AudioControl’s legendary 5-year warranty and is available exclusively to the residential custom install and pro audio markets through AudioControl authorized dealers.

Overview

We're proud to be an authorized dealer of AudioControl

FEATURES

  • 12 Channels of High Power and AudioControl Performance
  • 100 watts per Channel at 8 Ohms (All Channels Driven)
  • 200 watts per Channel at 4 Ohms (All Channels Driven)
  • Bridgeable as an 6 channel amplifier at 400 watts
  • Low Standby Current Draw of Less Than 1 Watt
  • Compact Design Fits into 2 Rack Spaces
  • LightDriveTM Anti-Clipping Protection Circuitry
  • 2 x Input Buses (Digital and Analog)
  • Local Zone Input Trigger
  • 12v Trigger Input and Output
  • Signal-Sensing On All Channels
  • Input Busing and Level Controls
  • Mono-switch for Improved Bridging
  • Beefy Rack Mount Brackets Included
  • Five Year AudioControl Warranty

Specs

  • INPUTS
  • Inputs: 6 Stereo Local Analog Inputs, 1 Stereo Bus Digital Input, 1 Stereo Bus Analog Input
  • Input Sensitivity: Variable 0-1 Vrms
  • Analog Input Sensitivity: 1 Vrms for full output; level at maximum
  • OUTPUTS
  • Amplifier Channels: 12
  • 1 Stereo Bus Analog Output
  • Power Output (8Ω): 100W per channel
  • Power Output (4Ω): 200W per channel
  • Power Output (Bridged Mono): 400W
  • Minimum Speaker Load: 4Ω\
  • PERFORMANCE
  • Damping Factor: >300
  • Signal to Noise: >105 dB, (A-wtd, ref full output)
  • Crosstalk: >80 dB @ 1kHz
  • Gain: 30 dB
  • Analog Input Sensitiviy: 1 Vrms for full output, level at maximum
  • DAC Specifications: 32 – 96 kHz sample rate, 16/24 bit depth
  • CONTROL
  • Remote Power Trigger: +12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out
  • AC POWER REQUIREMENTS
  • Standby: 0.9W
  • Idle (main power on, all channels off): 40W
  • All channels active: 75W
  • All channels 1/8th rated power: 253W
  • Full power (20A residential service limited): 2400W
  • Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads
  • BTU/HR OUTPUT
  • Standby: 3.1 BTU/hr
  • Idle (main power on, all channels off): 136 BTU/hr
  • All channels active: 256 BTU/hr
  • All channels 1/8th rated power: 320 BTU/hr
  • Full power (20A residential service limited): 2194 BTU/hr
  • WEIGHT & DIMENSIONS
  • Dimensions: 19″ W (w/rack ears) 17” W (w/no rack ears) x 15.5” D x ” H 3.5″ (2U)
  • Weight: 19.5 lbs (8.8 kg)
  • IN THE BOX
  • Architect Model P2260, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty
