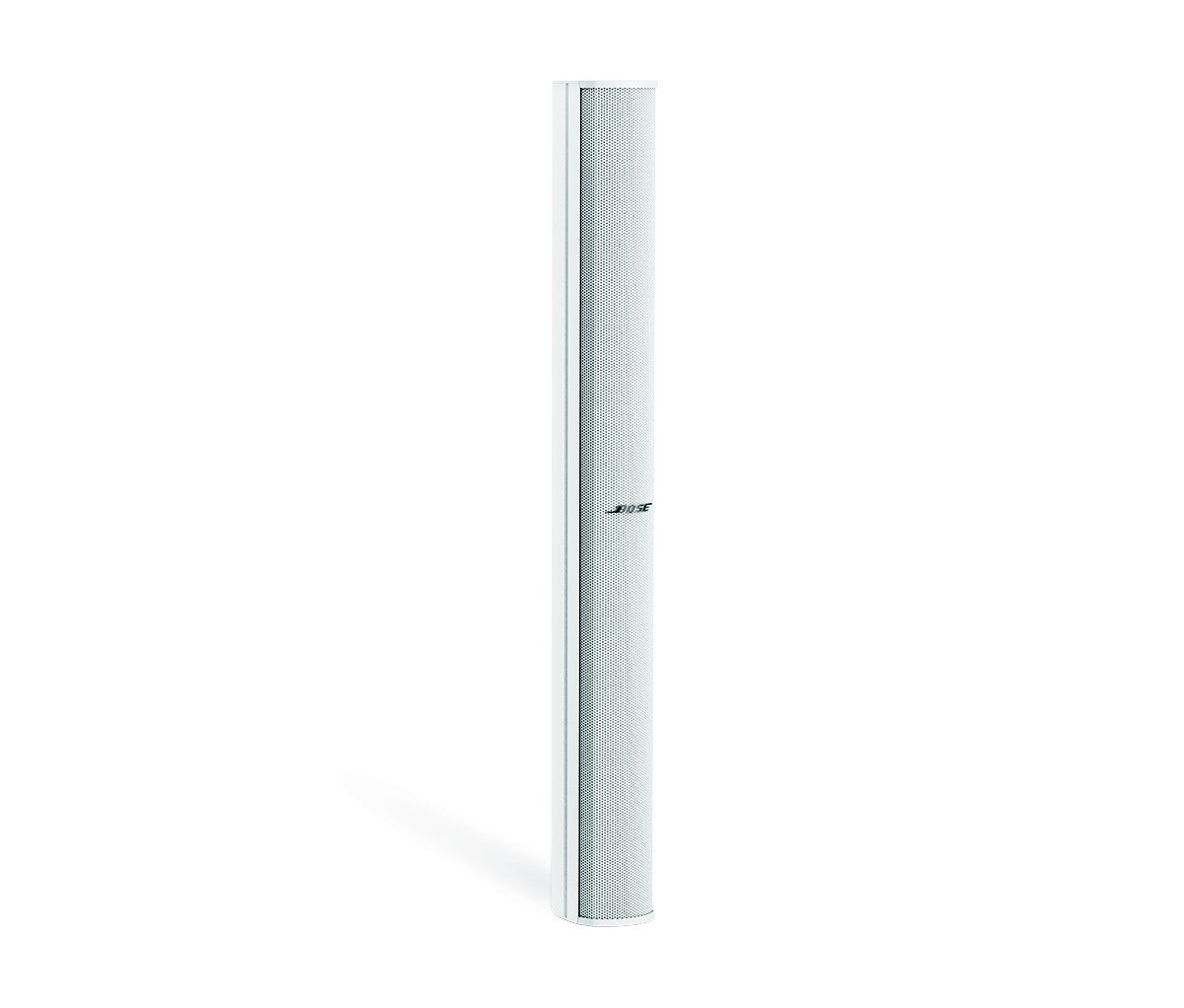

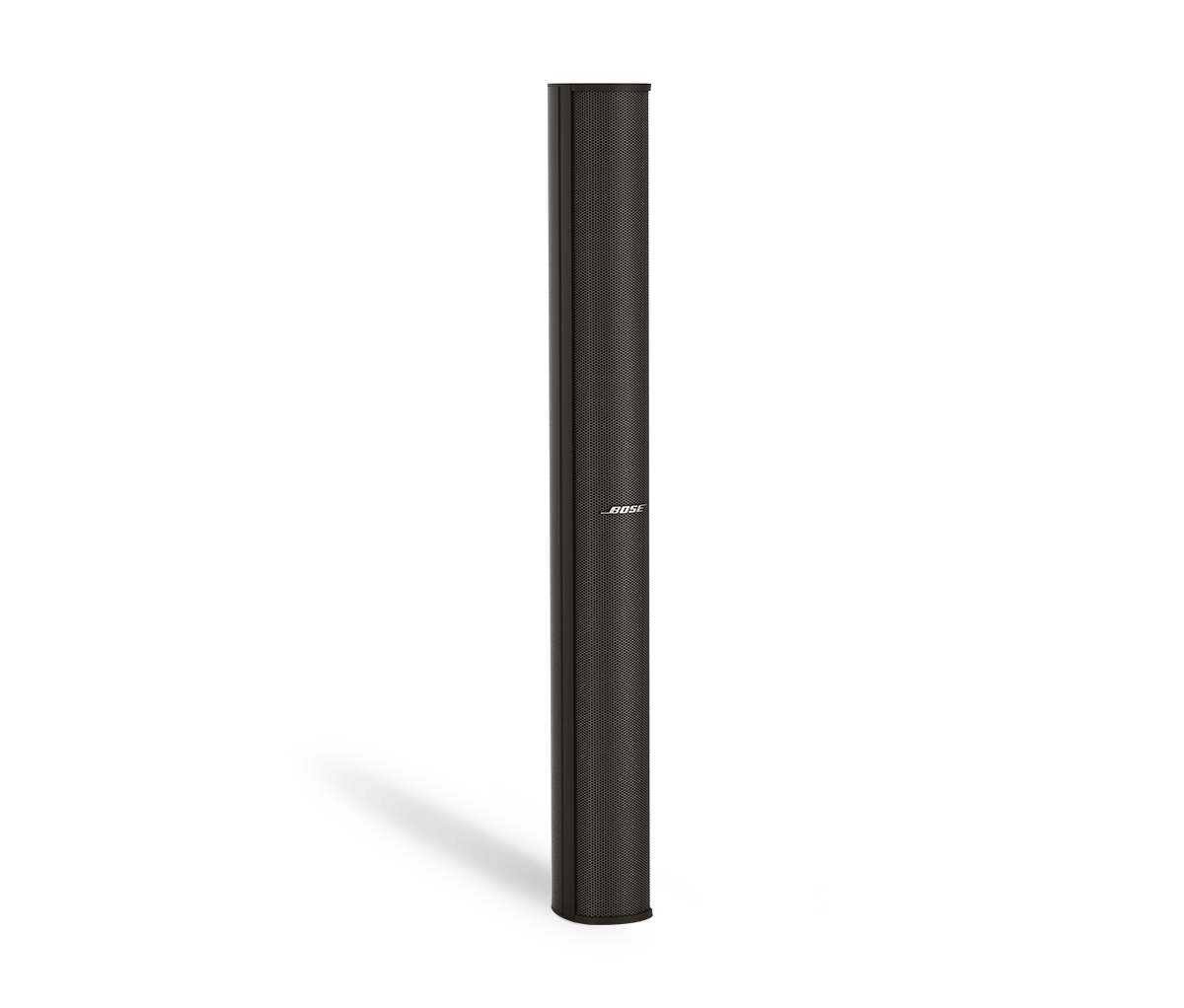

Bose Professional Panaray Modular Columnar Line Array Loudspeaker

Unveiling the Power of Clarity and Precision

In the world of sound, where every note, every whisper, and every beat counts, the Bose Professional Panaray MA12 Modular Columnar Line Array Loudspeaker stands as a paragon of acoustic excellence. Dreamedia is proud to present a product that not only meets the stringent demands of audiophiles and professional venues but exceeds them with its innovative design and superior performance.

Experience the Articulated Array® Design

The Bose Professional Panaray MA12 is not just a loudspeaker; it's an acoustic masterpiece engineered to deliver unparalleled sound clarity and precision. Its unique Articulated Array® design features twelve 2.25-inch high-excursion drivers that work in harmony to provide an expansive 160° horizontal coverage. This ensures that everyone in your audience, from the front row to the far corners, experiences the same high-quality sound.

Indoor Acoustic Excellence

Designed exclusively for indoor use, the Bose Panaray MA12 thrives in environments where sound quality cannot be compromised. From houses of worship to auditoriums, and transportation facilities to conference centers, this loudspeaker delivers outstanding vocal intelligibility and full-range music reproduction. Its slim, elegant column enclosure blends seamlessly with any interior décor, making it a sophisticated addition to your space.

Engineered for Durability

Encased in extruded-aluminum sidewalls with powder-coated steel top and bottom endcaps, the Bose Panaray MA12 is built to last. The weather-resistant design, complete with a powder-coated aluminum grille, ensures that while its primary use is indoors, it can withstand the rigors of outdoor elements when necessary.

Modular Flexibility

The modular design of the Panaray MA12 is a testament to its versatility. Multiple enclosures can be stacked for increased vertical pattern control and improved throw distance, making it an adaptable solution for any venue size. Whether you're looking to fill a small room with clear sound or project to the back of a large hall, this loudspeaker can be configured to meet your needs.

Harness the Power of Full-Range Sound

With a frequency range that spans from 100 Hz to 16 kHz, the Bose Panaray MA12 delivers a full spectrum of sound. From the deep resonance of a bass guitar to the crystal-clear highs of a soprano, every detail is reproduced with stunning clarity. And with a maximum SPL of 113 dB continuous and 119 dB peak, you can trust that this loudspeaker is capable of filling your space with powerful, yet nuanced sound.

Easy Integration and Installation

Dreamedia understands the importance of a hassle-free setup. The Bose Panaray MA12 comes equipped with optional accessories that simplify installation. Mounting brackets for single-, double-, or triple-stack line array modules, along with a stand adapter bracket for portable loudspeaker mounting, provide flexibility for any installation scenario. The four M6 threaded inserts ensure secure mounting, giving you peace of mind that your audio equipment is safely installed.

Protecting Your Investment

Audio equipment is an investment, and the Bose Panaray MA12 is protected by a comprehensive 5-year warranty. This level of support underscores the durability and quality of the product, ensuring that your audio experience remains uncompromised for years to come.

Tailored Sound with Active Equalization

To achieve the best sound possible, the Panaray MA12 requires Bose Professional loudspeaker EQ for active equalization and speaker protection. This tailored approach to sound ensures that the audio quality is not only consistent but optimized for the specific acoustics of your space.

Versatile Power Handling

Whether you're running a low-key event or a full-scale concert, the Panaray MA12's power handling capabilities are up to the task. With 300 W continuous and 1200 W peak power handling, this loudspeaker can adapt to the dynamics of any audio performance.

Connectivity for Modern Demands

In today's interconnected world, versatility in connectivity is key. The optional CVT-MA12 transformer allows for 70V/100V use, making the Panaray MA12 a suitable choice for installations that require a constant voltage system.

Key Features at a Glance

Articulated Array® Design: Ensures wide horizontal coverage with focused vertical dispersion.
Indoor and Outdoor Versatility: Weather-resistant components for peace of mind, regardless of the location.
Modular Design: Stack multiple enclosures for tailored vertical pattern control.
Wide Frequency Range: 100 Hz – 16 kHz for full-range sound reproduction.
High Sensitivity: 88 dB SPL/1 W at 1 m for efficient sound projection.
Robust Construction: Extruded-aluminum and steel components for lasting durability.
Comprehensive Warranty: 5-year coverage for long-term reliability.

Your Partner in Sound

At Dreamedia, we are not just about selling you a product; we are about crafting an unforgettable auditory experience. Our experts are available to design a home theater system that incorporates the Bose Professional Panaray MA12, ensuring that it fits perfectly within your unique space and meets your specific sound requirements.

Summary

The Bose Professional Panaray MA12 Modular Columnar Line Array Loudspeaker represents the pinnacle of sound engineering. With its combination of wide horizontal coverage, full-range sound reproduction, and modular design, it stands as an ideal solution for any venue seeking audio perfection. Trust Dreamedia to help you integrate this exceptional loudspeaker into your space, creating an immersive sound experience that resonates with every listener.

Our Review

Bose Professional Panaray MA12 Modular Columnar Line Array Loudspeaker Review

Introduction

Line array speakers are pivotal in professional audio settings, providing clear sound distribution over long distances and wide areas. The Bose Professional Panaray MA12 presents itself as a formidable contender in this space, aiming to deliver exceptional sound quality with a design that's both aesthetically pleasing and functional.

Design

Aesthetics and Build Quality

The Panaray MA12 boasts a sleek, slim column enclosure that's not only visually unobtrusive but also designed to blend seamlessly into a variety of décors, from modern to traditional. Its weather-resistant build is a testament to Bose's commitment to quality, ensuring that the speaker can withstand the elements when used outdoors. This durability is a significant advantage for installations in open-air venues or spaces where exposure to weather is a concern.

Modularity and Installation

The modular design of the MA12 allows for stacking multiple enclosures, giving sound engineers and installers the flexibility to tailor the vertical sound coverage to the venue's requirements. This is particularly beneficial in spaces with high ceilings or in outdoor settings where controlling the sound projection is crucial. However, it's worth noting that the speaker's proprietary bracket design may limit the options for combining it with non-Bose loudspeakers, and professional installation is recommended to ensure safety and structural integrity.

Features

Articulated Array® and Equalization

Bose's proprietary Articulated Array® design is a standout feature, engineered to provide wide horizontal coverage while maintaining a narrow vertical sound dispersion. This design ensures that sound is distributed evenly across a broad area, enhancing the listening experience for the audience. The active equalization further refines the sound, ensuring a balanced output across low, mid, and high frequencies. This feature is particularly beneficial in acoustically challenging spaces where maintaining sound clarity is paramount.

Adaptability and Protection

The Panaray MA12 comes equipped with an IPX5 rating, signifying high resistance to water ingress, which is a boon for outdoor use. The overload protection is an essential feature that safeguards the drivers from damage at high volumes, contributing to the longevity of the system. The optional CVT-MA12EX transformer and various mounting configurations underscore the system's adaptability, allowing for integration into a wide range of professional audio setups.

Performance

Sound Quality and Coverage

The sound quality of the Panaray MA12 is characterized by outstanding vocal intelligibility and robust full-range music reproduction, negating the need for additional bass augmentation in many scenarios. The 160° horizontal coverage is expansive, ensuring that sound reaches the audience evenly, while the 20° vertical coverage provides precise control to minimize ceiling and floor reflections. This makes the MA12 particularly effective in venues like auditoriums, houses of worship, and transportation facilities.

Power Handling and SPL

With a continuous power handling of 150 W and a peak of 600 W, the MA12 is capable of delivering considerable volume without distortion. The maximum SPL of 112 dB continuous and 118 dB peak at 1 meter indicates that the speaker can project sound effectively in sizeable spaces. These specifications reveal the MA12's capacity to perform reliably under demanding conditions, a critical factor for professional installations.

Use Cases

Ideal Environments

The Bose Professional Panaray MA12 is best suited for environments that demand high speech intelligibility and even sound distribution. Its design and feature set make it ideal for acoustically challenging spaces, such as long and narrow halls or venues with hard surfaces that can cause sound reflections. The weather-resistant nature also makes it an excellent choice for outdoor applications, such as amphitheaters or sports facilities.

Limitations and Considerations

While the MA12 performs admirably across a wide frequency range, its lower frequency limit of 58 Hz may necessitate additional bass loudspeakers for applications requiring deep bass or higher output levels. Venues hosting live music performances or events that rely on a substantial low-frequency presence will need to consider this in their audio design.

Comparison with Competitors

When compared to other line array loudspeakers on the market, the Panaray MA12 stands out for its modular design and sound dispersion technology. However, it's important to consider the competition's offerings, which may provide extended low-frequency response or greater power handling at a similar price point. The unique selling points of the MA12, such as its weather resistance and Articulated Array® design, must be weighed against the specific needs of the installation.

Final Thoughts

The Bose Professional Panaray MA12 is a well-engineered modular columnar line array loudspeaker that excels in delivering clear, balanced sound across a wide area. Its design is both functional and aesthetically pleasing, making it a versatile solution for a variety of professional settings. While its frequency range and power handling are sufficient for most applications, some installations may require additional components to achieve the desired sound profile. Overall, the MA12 is a compelling option for those seeking a high-quality, adaptable loudspeaker system that can handle the demands of professional audio environments.

Specifications

General Specifications

Model: Bose Professional Panaray MA12
Design: Modular columnar line array loudspeaker
Intended Use: Indoor applications only
Enclosure Type: Sealed
Enclosure Material: Extruded-aluminum sidewalls with steel top & bottom endcaps, all powder-coated
Grille Material: Aluminum, powder-coated finish
Available Colors: Black, white
Certifications: EN 54-24 Certified

Mounting Specifications

Mounting/Rigging Provisions: 4 × M6 threaded inserts
Optional Accessories: Mounting brackets for single-, double- or triple-stack line array modules; stand adapter bracket for portable loudspeaker mounting

Physical Specifications

Net Weight: 19.0 lb (8.5 kg)
Product Dimensions (H×W×D): 38.8 in × 4.2 in × 5.0 in (984 mm × 105 mm × 128 mm)

Driver Specifications

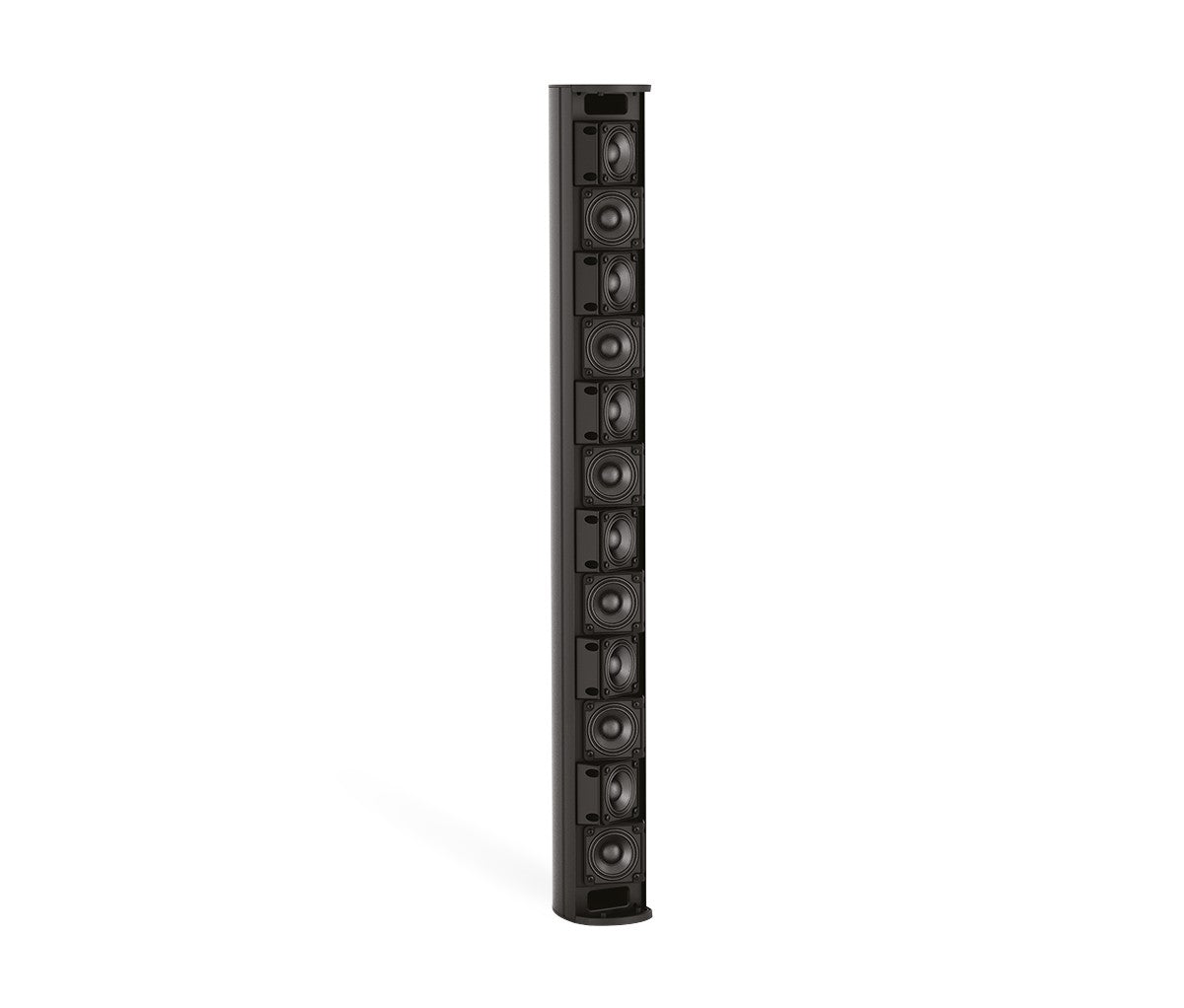

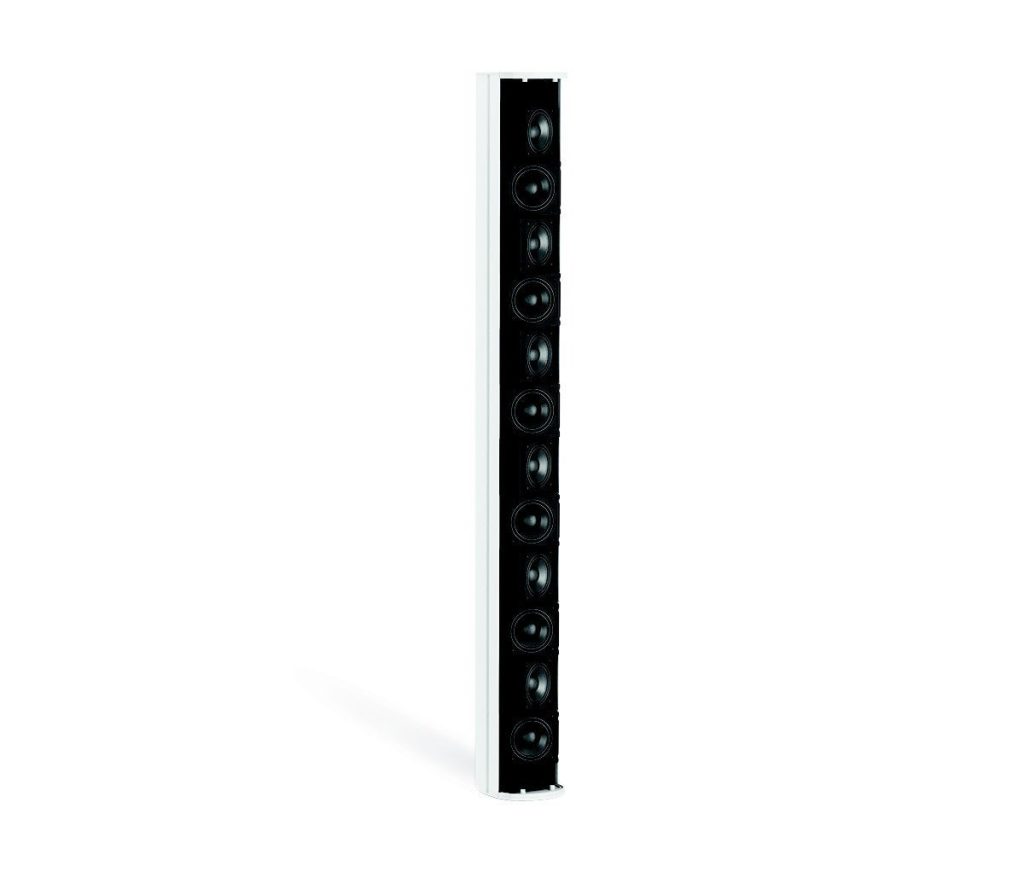

Driver Type: Twelve 2.25-inch (57 mm) high-excursion mid/high-frequency drivers
Driver Protection: Overload protection

Audio Performance Specifications

Frequency Range (-10 dB): 100 Hz – 16,000 Hz
Frequency Response (-3 dB): 160 Hz - 17 kHz
Horizontal Coverage: 145°
Vertical Coverage: 20° nominal coverage for a single module
Maximum SPL at 1 m: 113 dB continuous, 119 dB peak
Nominal Impedance: 8 Ω
Power Handling: 300 W continuous, 1200 W peak
Sensitivity (SPL/1 W at 1 m): 88 dB

Transformer Specifications

Transformer Taps: CVT-MA12 transformer available for 70V/100V use

Signal Processing Specifications

EQ and Signal Processing: Requires Bose Professional loudspeaker EQ for active equalization and speaker protection

Warranty and Support

Warranty: 5 years
Inclusions: (1) installation guide, (1) MA12 loudspeaker
