Bose Professional DesignMax In - ceiling Subwoofer - Dreamedia AV
Vendor: Bose

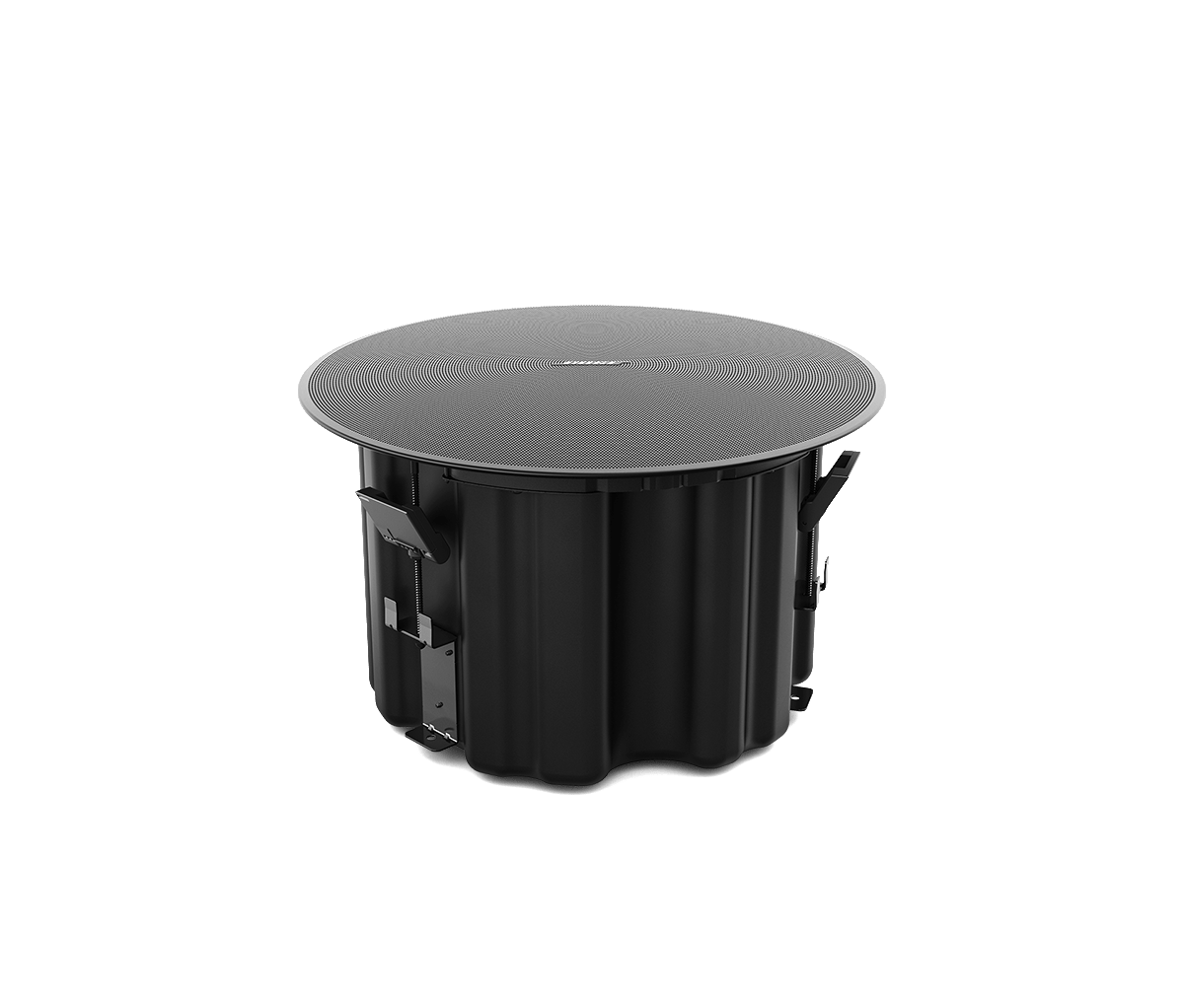

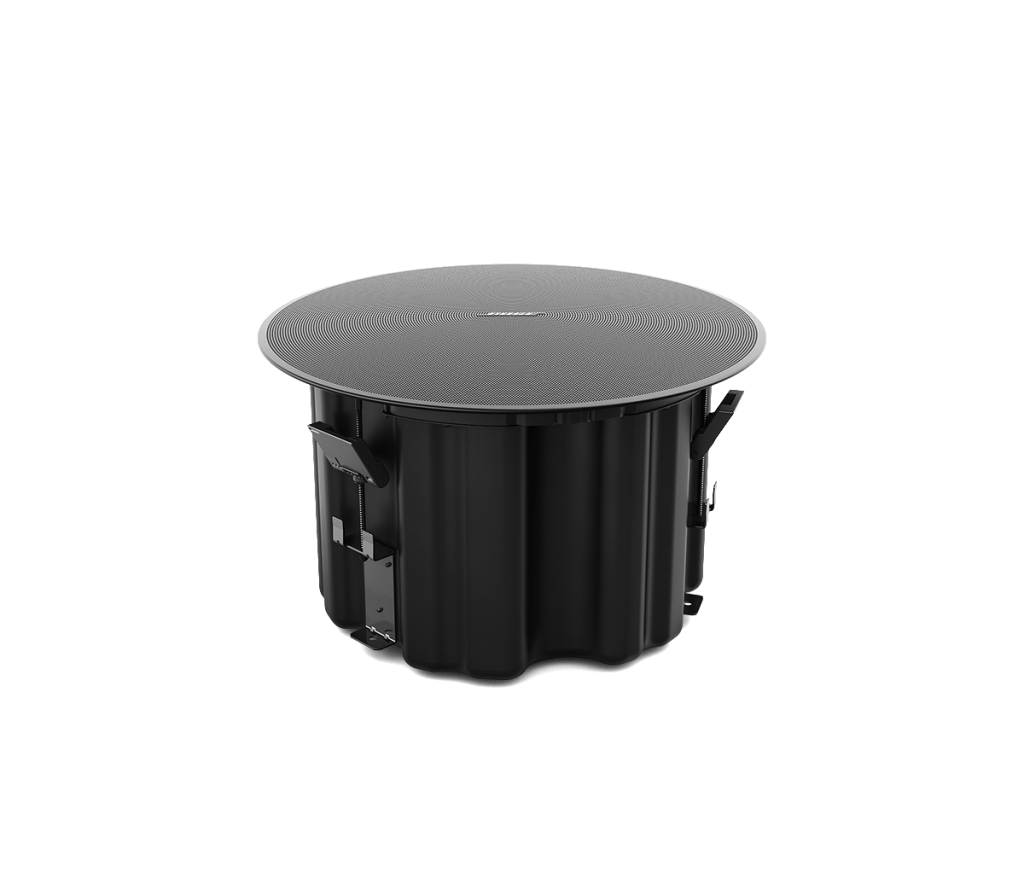

Bose Professional DesignMax In-ceiling Subwoofer

Immersive audio, deep bass, easy installation
$579.95
$579.95

Bose Authorized Dealer

Contact Us

Contact us if you are interested in buying this product.

Need Help?

We're here to help. Call or chat with a Dreamedia specialist.

Free Shipping

Free nationwide shipping available!*

Free Returns

30 day guarantee.
Bose Professional DesignMax In-ceiling Subwoofer

Unparalleled Acoustic Performance

When it comes to creating an immersive audio experience in your space, whether it's a performing arts venue, a place of worship, or a bustling restaurant, the foundation of that experience is the richness and depth of the bass. The Bose Professional DesignMax DM8C-SUB in-ceiling subwoofer is engineered to deliver just that. With its 8-inch woofer and a frequency range that dips down to a rumbling 38 Hz, this subwoofer is not just heard, but felt.

Imagine the resonant strings of a cello in a concert hall, the deep voice of a pastor resonating in a church, or the pulsating beat in a trendy bar—all amplified in clarity and depth by the DesignMax DM8C-SUB. This subwoofer is designed to complement and enhance any installation, ensuring that your space not only sounds good but also invokes the exact emotional response you're aiming for.

Key Features:

  • Powerful Low-Frequency Output: Continuous power handling of 180 W, with a peak of 720 W, ensuring robust performance.
  • Expansive Frequency Range: A broad spectrum from 38 Hz to 155 Hz captures the full extent of bass tones.
  • High Sensitivity and SPL: With a sensitivity of 89 dB and a maximum SPL of 112 dB, the subwoofer efficiently translates power into sound.
  • Quality Transducer: A single high-performance 8-inch woofer delivers precise low-end frequencies.

Effortless Installation

The patented QuickHold mounting system of the Bose Professional DesignMax DM8C-SUB revolutionizes the installation process. The innovative design of the mounting arms allows for a secure and swift setup, minimizing time and effort. This feature is a boon for installers who are looking to reduce labor costs and complexity while ensuring a safe and stable installation.

Installation Highlights:

  • QuickHold Mounting Arms: Simplify the installation process, saving time and reducing hassle.
  • Safety Cable Attachment Points: Provide additional security during and after installation.
  • Front-Access Audio Wiring: Ensures easy accessibility for connections.

Customizable Design Aesthetic

Recognizing that each venue has its unique design aesthetic, the Bose Professional DesignMax DM8C-SUB offers a paintable, magnetic grille available in black or white. This allows for seamless integration into any décor, maintaining the visual integrity of your space. The removable logos ensure that the focus remains on your design, not the hardware.

Design Flexibility:

  • Color Options: Choose between black or white to match your interior design.
  • Paintable Grille: Customize the look to blend perfectly with your environment.
  • Magnetic Grille Attachment: For a clean look and easy maintenance.

Engineered for Versatility

The Bose Professional DesignMax DM8C-SUB is more than just a subwoofer; it's a versatile solution for a multitude of environments. Whether your project involves a retail store where clarity can drive sales, a restaurant where atmosphere is everything, or a conference center where speech intelligibility is paramount, this subwoofer is designed to excel.

Versatile Use Cases:

  • Performing Arts Venues: Enhance the audience's acoustic experience with powerful bass that brings performances to life.
  • Places of Worship: Ensure every word and note is conveyed with depth and clarity.
  • Hospitality Venues: Create an inviting ambiance with a soundtrack that complements your space.

Committed to Safety and Compliance

Safety is paramount in public spaces, and the Bose Professional DesignMax DM8C-SUB meets the most stringent standards. UL-1480A and CE compliant, the subwoofer is also listed for use in plenum spaces, adhering to NFPA70 and NFPA90-A regulations. This peace of mind allows you to focus on the acoustic experience, knowing that the product meets global safety requirements.

Safety Credentials:

  • UL-1480A, S5591/ UL Listed: Recognized for safety and reliability.
  • UL2043 Compliant: Suitable for air-handling spaces.
  • CE Compliant: Meets European safety and performance standards.

Technical Specifications

For those who appreciate the technical details, the Bose Professional DesignMax DM8C-SUB is a testament to superior engineering. Below is a detailed overview of its technical specifications:

  • Frequency Range (-10 dB): 38 Hz – 115 Hz, delivering a wide range of bass tones.
  • Maximum SPL at 1 m: 112 dB, creating powerful sound pressure levels for impactful audio.
  • Power Handling, Continuous: 180 W, ensuring consistent performance.
  • Sensitivity (SPL/1 W at 1 m): 89 dB, translating power into audible sound efficiently.
  • Low-Frequency Transducer: 1 × 8 in (203 mm) woofer for precise low-end reproduction.
  • Crossover Frequency: 80 Hz – 200 Hz via active crossover in DSP for optimal integration with other speakers.
  • Dimensions and Weight: Compact design with a net weight of 21.9 lb (9.9 kg) for ease of handling.

Dreamedia – Your Partner in Premium Sound

At Dreamedia, we understand the importance of not just selling a product but providing an experience. Our team is available to design custom home theater systems that meet your unique requirements, ensuring that the Bose Professional DesignMax DM8C-SUB is not just an addition to your space but a transformation of it.

We invite you to explore the potential of this exceptional subwoofer and to reach out to us for a personalized consultation. Let us help you craft the perfect auditory landscape for your space, where every note, every beat, and every word is delivered with the power and clarity that only Bose Professional can provide.

Our Review

Bose Professional DesignMax DM8C-SUB In-ceiling Subwoofer Review

Introduction

The Bose Professional DesignMax DM8C-SUB subwoofer is a noteworthy addition to the Bose Professional lineup, promising to deliver rich low-end sound performance for a variety of professional settings. As a brand, Bose is synonymous with quality audio, and the DesignMax series is designed to blend seamlessly into the aesthetic of any venue while delivering the audio excellence expected from Bose. My initial impressions of the DM8C-SUB are of a product that aims to combine performance with installation ease, targeting a broad market segment that includes performing arts venues, places of worship, and hospitality spaces.

Design

Aesthetics

The visual design of the DM8C-SUB adheres to the minimalist, professional look typical of Bose products. The subwoofer's grille is magnetically attached, powder-coated for durability, and paintable, allowing it to fit into any décor seamlessly. This level of customization is a significant plus for venues that prioritize visual aesthetics alongside audio performance.

Build Quality

Constructed with an engineered-plastics front baffle and a steel-formed backcan, the DM8C-SUB is built to last. The materials chosen suggest a product that can withstand the rigors of professional use while maintaining the integrity of its sound production over time. The quality of build aligns with Bose's reputation for manufacturing durable audio equipment.

Installation

The Bose Professional DesignMax DM8C-SUB boasts the patented QuickHold mounting system, which is advertised as significantly reducing installation time and effort. This feature is particularly appealing for installers who are looking to streamline the setup process without compromising on stability or safety.

Features

Audio Technology

Bose has equipped the DM8C-SUB with custom drivers designed to deliver rich bass performance. The subwoofer's frequency range extends down to 38 Hz, which suggests that users can expect a depth of sound that is often lacking in in-ceiling subwoofers. The patented mounting system not only aids in ease of installation but also ensures that the subwoofer remains securely in place, which is crucial for both safety and sound quality.

Versatility

The DM8C-SUB is touted as a versatile piece of equipment suitable for a multitude of applications. Its design and technology appear to make it a fit for diverse environments, from retail spaces to conference centers. This versatility is a significant advantage for a product aimed at the professional market.

Safety and Compliance

Bose has not overlooked safety and compliance, equipping the DM8C-SUB with a range of certifications, including UL-1480A and CE compliance. For users, this means peace of mind in knowing that the product meets strict safety standards, especially important when the subwoofer is to be installed in plenum spaces.

Performance

Sound Quality

The sound quality of a subwoofer is its most critical aspect, and the DM8C-SUB's low-end performance is where it seeks to shine. With a frequency range starting at 38 Hz, the subwoofer should be capable of producing the deep tones necessary for a full-bodied audio experience. When compared to other in-ceiling subwoofers, which often struggle to deliver true low-end frequencies, the DM8C-SUB stands out for its robust bass capabilities.

Power Handling

With a continuous power handling of 180W, the DM8C-SUB is built to sustain a substantial amount of power without distortion. This capability is essential for maintaining a consistent and reliable performance during long periods of use, which is often the case in professional settings.

Maximum SPL

The maximum sound pressure level (SPL) of 112 dB at 1 meter is impressive for an in-ceiling subwoofer and suggests that the DM8C-SUB can deliver powerful sound without compromise. Considering sound dispersion, this SPL should ensure that the subwoofer can fill a room with rich bass without the need for excessive volume, which could result in audio degradation.

Installation Experience

Mounting System

The QuickHold mounting arms are a highlight of the installation experience. They are designed to simplify the process, allowing for a secure fit without the need for extensive manual labor. However, installers should be aware that while the system is designed to be user-friendly, it is always advisable to have a professional handle the installation to ensure optimal performance and safety.

Compatibility

The requirement for additional Bose Professional DSPs and amplifiers could add complexity and cost to the setup. While this may not be a significant issue for larger venues with existing Bose systems, it could be a consideration for smaller installations or those on a tighter budget.

Use Cases

Application Scenarios

The DM8C-SUB is designed for a wide range of environments, which is a testament to its flexibility. However, potential users should consider the indoor-only limitation and ensure that their intended use aligns with the product's capabilities. The subwoofer is ideal for adding depth to spoken word presentations, enhancing music in hospitality settings, and enriching the audio landscape in places of worship.

Indoor Usage

The indoor-only limitation is not unusual for in-ceiling subwoofers but is worth noting for potential buyers. Environments exposed to the elements or with extreme humidity and temperature variations may require different solutions.

Final Thoughts

The Bose Professional DesignMax DM8C-SUB in-ceiling subwoofer presents a compelling package for those looking to enhance their audio setup with deep, rich bass in a professional setting. Its strengths lie in its sound quality, ease of installation, safety compliance, and versatile application. While the need for additional Bose accessories and the indoor-only usage may be seen as drawbacks, these are not uncommon in the professional audio market. For venues that prioritize audio performance and are looking for a discreet, customizable subwoofer solution, the DM8C-SUB is a strong contender worth considering.

Specifications

Performance

  • Power Handling (Continuous): 180 W
  • Power Handling (Peak): 720 W
  • Frequency Range: 38 Hz – 155 Hz
  • Maximum SPL at 1 m: 112 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Sensitivity (SPL/1 W at 1 m): 89 dB
  • Low-Frequency Transducer Quantity and Size: 1 × 8 in (203 mm) woofer
  • Coverage, Horizontal: Omnidirectional below 200 Hz
  • Crossover Frequency: 80 Hz – 200 Hz via active crossover in DSP
  • Driver Protection: Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter

Design and Installation

  • Mounting System: QuickHold mounting arms
  • Baffle Material: Engineered-plastics front baffle
  • Backcan Material: Steel-formed
  • Grille: Magnetic, perforated steel, paintable, with removable logos
  • Mounting Provisions: (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Indoor Use: Yes
  • Installation Accessories: Euroblock connectors, plenum-rated backcans, tile bridges, front-access audio wiring

Safety and Compliance

  • Safety Agency Ratings: UL-1480A, S5591/ UL Listed, UL2043, NFPA70 & NFPA90-A, CE compliant

Dimensions and Weight

  • Product Dimensions (H×W×D): 16.1 in × 10.0 in (409 mm × 255 mm)
  • Backcan Dimensions (H×W×D): 13.4 in × 9.5 in (340 mm × 240 mm)
  • Net Weight: 21.9 lb (9.9 kg)
  • Shipping Weight: 28.5 lb (12.9 kg)

Other Features

  • Color Options: Black (RAL 9005), white (similar to RAL 9003)
  • Transformer Taps, 100V: 40, 80, 150 W, bypass
  • Transformer Taps, 70V: 20 W, 40 W, 80 W, 150 W, bypass
