Bose Professional DesignMax 2 - Way Surface Mount Loudspeaker - Dreamedia AV

Vendor: Bose

Bose Professional DesignMax 2-Way Surface Mount Loudspeaker

High-fidelity 2-way surface mount loudspeaker

$729.95; $729.95
Unit price: per

Product variants

Bose Authorized Dealer

Purchase Contact Us

Contact us if you are interested in buying this product.

Quantity:

Need Help?

We're here to help. Call or chat with a Dreamedia specialist.

877-417-9000 Chat the crew

Free Shipping

Free nationwide shipping available!*

Free Returns

30 day guarantee.

Bose Professional DesignMax 2-Way Surface Mount Loudspeaker

Unparalleled Sound Clarity and Performance

When it comes to creating an immersive audio experience, the Bose Professional DesignMax DM6SE 2-way surface mount loudspeaker stands out as a pinnacle of acoustic engineering. This loudspeaker is not just a technological marvel; it's a testament to the perfect blend of form and function. Designed to deliver rich lows and clear, intelligible highs, the DesignMax DM6SE is the epitome of Bose's commitment to professional-grade sound quality.

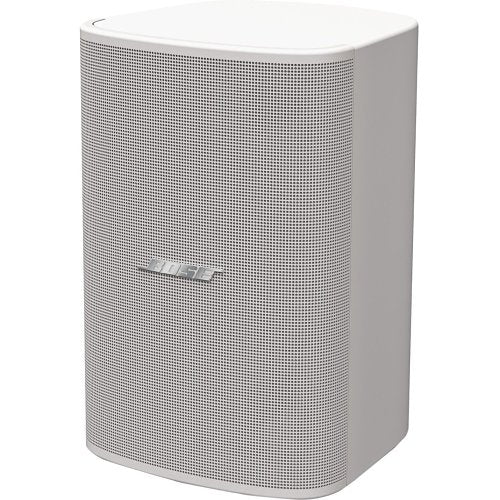

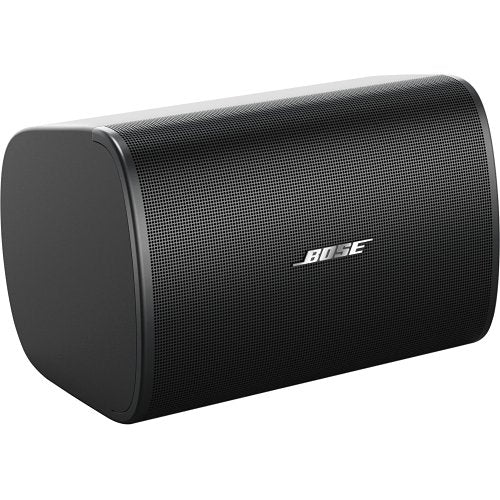

Sophisticated Design for Any Setting

The DesignMax DM6SE boasts an elegant design that seamlessly integrates into any commercial space. Its minimum-bezel grille, available in black or white, is paintable to match any decor, ensuring that the loudspeaker complements your space rather than intruding upon it. The removable logos allow for a discreet presence, maintaining the aesthetic integrity of your venue.

Exceptional Audio Quality

At the heart of the DesignMax DM6SE lies a coaxial two-way driver system, combining a 6.5-inch woofer and a 1.25-inch neodymium dome tweeter. This configuration ensures a consistent audio experience with rich bass and crystal-clear highs. Whether it's for background music or the centerpiece of a sound system, the DM6SE delivers:

Frequency Range: 59 Hz – 20 kHz
Sensitivity: 90 dB SPL/1 W at 1 m
Maximum SPL at 1 m: 111 dB

Broad Coverage for Any Space

The DesignMax DM6SE offers a generous 125° conical horizontal coverage, ensuring that sound is distributed evenly across the listening area. This feature makes the DM6SE particularly suitable for venues where audio clarity and coverage are essential, such as performing arts venues, places of worship, and conference centers.

Power Handling for Demanding Applications

With a continuous power handling capacity of 125 W and peak power handling of 500 W, the DesignMax DM6SE is more than capable of delivering dynamic and impactful sound. The inclusion of transformer taps for both 100V and 70V systems allows for versatility in installation and ensures compatibility with various audio setups.

Weather-Resistant for Outdoor Use

The IP55 outdoor rating of the DesignMax DM6SE ensures it is ready to withstand the elements. The highly UV fade-resistant engineered plastics and the standard aluminum grille offer protection against sun, rain, and dust, making this loudspeaker an excellent choice for outdoor areas like patios and terraces in hospitality venues.

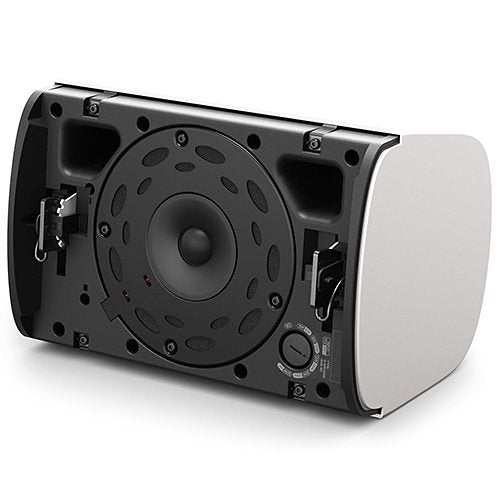

Easy Installation with QuickHold Mounting

Installation is a breeze with the patented QuickHold U-bracket, which provides fast and secure mounting. This feature, along with industry-standard accessories, guarantees that integrating the DesignMax DM6SE into your space is straightforward and hassle-free.

Applications Across Various Venues

The versatility of the DesignMax DM6SE makes it suitable for a wide range of applications:

Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues

Built to Last

The DesignMax DM6SE is not only designed for exceptional performance but also for durability:

Operating Temperature: -25 °C to 70 °C (-13 °F to 158 °F)
Enclosure Material: Engineered plastics, highly UV fade-resistant
Grille Material: Perforated aluminum, powder-coated finish
Safety Agency Ratings: UL-1480A, UL Listed, NFPA70, CE compliant

No Compromise on Sound Quality

Bose's proprietary Dispersion Alignment system ensures a consistent listening experience for all audience members, no matter their location in the venue. The DesignMax DM6SE delivers pristine sound without the need for additional signal processing, although Bose Professional EQ voicing and SmartBass processing are available if desired.

Technical Specifications at a Glance

Model: Bose Professional DesignMax DM6SE
Type: 2-way surface mount loudspeaker
Drivers: Coaxial 6.5-inch woofer and 1.25-inch neodymium dome tweeter
Continuous Power Handling: 125 W
Peak Power Handling: 500 W
Transformer Taps: 100V and 70V options with bypass
Environmental Protection: IP55 outdoor-rated
Mounting: QuickHold U-bracket
Dimensions (H×W×D): 13.4 in × 8.7 in × 9.0 in
Net Weight: 5.9 kg per loudspeaker with grille

Your Dreamedia Home Theater Experts

At Dreamedia, we understand that choosing the right audio equipment is crucial to creating the perfect ambiance for your venue. We're here to guide you through the process, offering expert advice tailored to your specific needs. Whether you're looking to enhance the audio experience in a house of worship, elevate the atmosphere in a restaurant, or provide crystal-clear sound for a conference center, we have the expertise to bring your vision to life.

Invest in Exceptional Sound Today

The Bose Professional DesignMax DM6SE is more than just a loudspeaker; it's an investment in unparalleled sound quality and reliability. With its sophisticated design, exceptional audio performance, and easy installation, the DM6SE is the ideal choice for those who refuse to compromise on their audio experience. Contact Dreamedia today, and let us help you design the perfect sound system for your space.

Our Review

Bose Professional DesignMax DM6SE 2-Way Surface Mount Loudspeaker Review

Introduction

Bose is a name that resonates with quality audio products, from consumer headphones to professional sound systems. The DesignMax DM6SE represents their commitment to premium sound in commercial spaces, where both audio quality and design aesthetics are paramount. This product finds its niche in a market that demands high-fidelity sound without compromising on the visual harmony of the environment.

Design

Aesthetics

The Bose Professional DesignMax DM6SE boasts a sleek, contemporary design that is immediately appealing. Available in black or white, with paintable options, it can blend seamlessly into a wide array of architectural styles. The minimum-bezel grille and removable logos add to its unobtrusive elegance, making it a chameleon in the visual landscape of any commercial space.

Build Quality

Crafted from engineered plastics that are highly resistant to UV fading, the DM6SE is built to last. The durability of materials used ensures longevity even in challenging environments. The IP55 ingress protection rating is a testament to its resilience, signifying that it is dust-tight and protected against water jets from any direction, a crucial feature for outdoor applications.

Mounting System

The QuickHold U-bracket mounting system is a standout feature. It simplifies the installation process, allowing for a secure and swift setup. This system not only saves time but also reduces the complexity of the installation, enabling a broader range of professionals to handle the task confidently.

Features

Sound Engineering

The coaxial two-way drivers are designed to deliver rich lows and articulate highs, achieving a balanced sound that can fill a space without the need for additional digital signal processing (DSP) or equalization (EQ). The Dispersion Alignment system ensures a consistent audio experience across the coverage area, which is critical in commercial environments where every listener's experience is valued.

Versatility

With its versatile design, the DM6SE is suitable for a wide range of applications. From performing arts venues to places of worship, and from conference centers to retail stores, restaurants, bars, and hospitality venues, this loudspeaker is engineered to perform exceptionally across diverse environments.

Weather Resistance

The outdoor rating of IP55 makes the DM6SE an ideal candidate for outdoor use. This opens up possibilities for installations in venues like patios, terraces, and other open-air environments where audio quality cannot be compromised by the elements.

Performance

Audio Quality

The DM6SE delivers a frequency range of 59 Hz – 20 kHz, which is impressive for a loudspeaker of its size. The maximum SPL of 111 dB at 1 meter ensures that the sound can carry with clarity and volume when needed. The real-world performance is remarkable, with the speaker handling both low-end richness and high-frequency clarity with ease.

Power Handling

With a continuous power handling of 125 W, the DM6SE is capable of delivering robust sound without distortion. This level of power handling contributes to the speaker's ability to perform in larger spaces where volume levels may need to be higher to reach every corner.

Coverage

The 125° conical coverage is a boon, providing a wide area of sound dispersion. This characteristic is particularly beneficial in commercial settings, ensuring that audio is distributed evenly and eliminating dead spots that can detract from the listening experience.

Installation and Ease of Use

Mounting Process

The installation process of the DM6SE is straightforward, thanks to the QuickHold U-bracket. The design allows for a one-person installation, which is not only convenient but also cost-effective. The bracket holds the speaker securely, while offering the flexibility of precise angling for optimal sound coverage.

Compatibility with Accessories

This loudspeaker is compatible with industry-standard accessories, making it a versatile choice for various setups. This compatibility facilitates integration with existing systems, a plus for venues that are upgrading or expanding their audio infrastructure.

Use Cases

The Bose Professional DesignMax DM6SE excels in environments where audio quality cannot be compromised. Its design and performance make it ideal for background music, live performances, and public announcements. However, for extremely large or acoustically challenging spaces, additional speakers may be required to ensure adequate coverage.

Final Thoughts

The Bose Professional DesignMax DM6SE is a compelling choice for commercial audio installations. Its elegant design, durable construction, and superior sound engineering make it a standout product. While competitors may offer alternatives, the DM6SE's combination of aesthetic discretion, robust build, and audio performance positions it as a top contender in its class. The value proposition for potential buyers is clear: investing in a Bose DesignMax DM6SE is investing in quality, reliability, and versatility for any commercial space.

Specifications

General Specifications

Model: Bose Professional DesignMax DM6SE
Type: 2-way surface mount loudspeaker
Frequency Range: 59 Hz – 20 kHz
Coverage: 125° conical horizontal coverage
Sensitivity: 90 dB SPL/1 W at 1 m
Maximum SPL at 1 m: 111 dB
Nominal Impedance: 8 Ω (transformer bypass)
Crossover Frequency: 1.7 kHz, passive 2-way crossover
Operating Temperature: -25 °C to 70 °C (-13 °F to 158 °F)
Dimensions (H×W×D): 340 mm × 222 mm × 229 mm (Loudspeaker), 340 mm × 222 mm × 245 mm (Loudspeaker with bracket)
Net Weight: 5.9 kg per loudspeaker with grille
Shipping Weight: 14.7 kg per pair
Safety Agency Ratings: UL-1480A, S5591/ UL Listed, NFPA70, CE compliant
Colors: Black (RAL 9005), white (similar to RAL 9003), paintable

Driver Specifications

Drivers: Coaxial 6.5-inch woofer and 1.25-inch neodymium dome tweeter

Power Specifications

Continuous Power Handling: 125 W
Peak Power Handling: 500 W
Transformer Taps 100V: 5, 10, 20, 40, 80 W, bypass
Transformer Taps 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass

Environmental Specifications

Environmental Protection: IP55 outdoor-rated
Enclosure Material: Highly UV fade-resistant engineered plastics
Grille Material: Perforated aluminum, powder-coated finish
Ingress Protection: IP55
Environmental Testing: Outdoor per IEC 529 IP55

Mounting and Installation

Mounting: QuickHold U-bracket for fast, secure installation
Logo: Rotatable, removable

Applications

Recommended Applications: Performing arts venues, places of worship, conference centers, retail stores, restaurants and bars, hospitality venues

Additional Features

Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
