Vendor: Bose

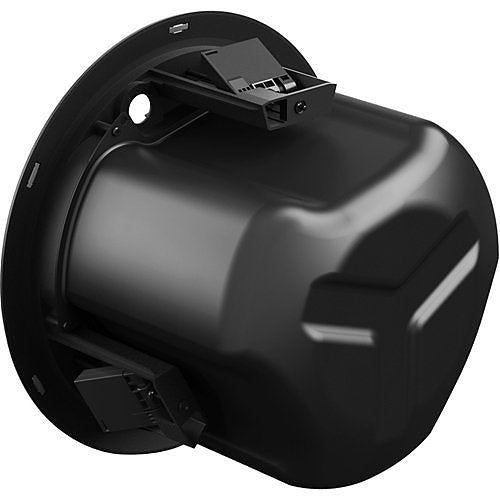

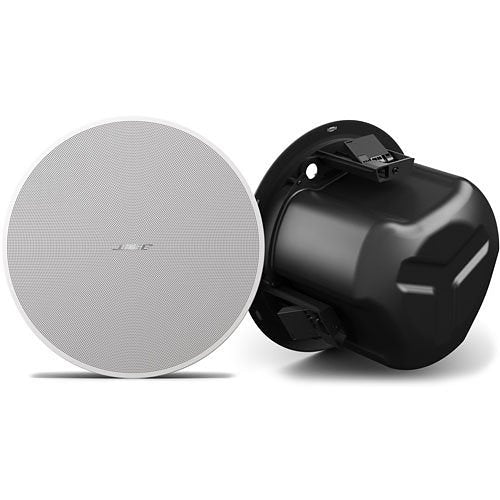

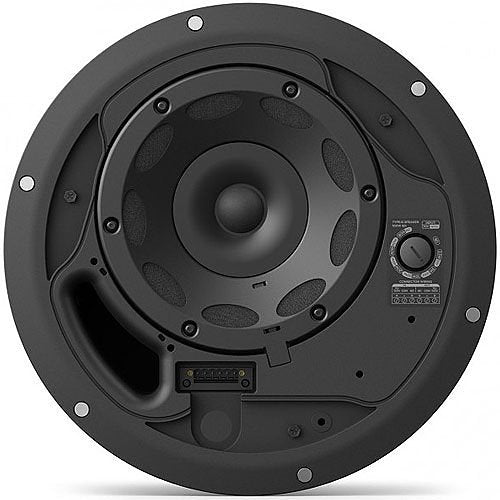

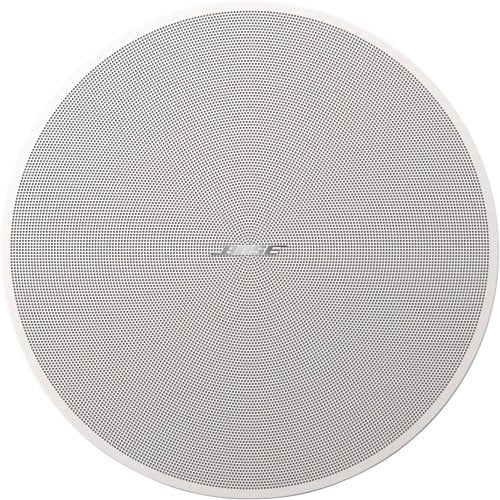

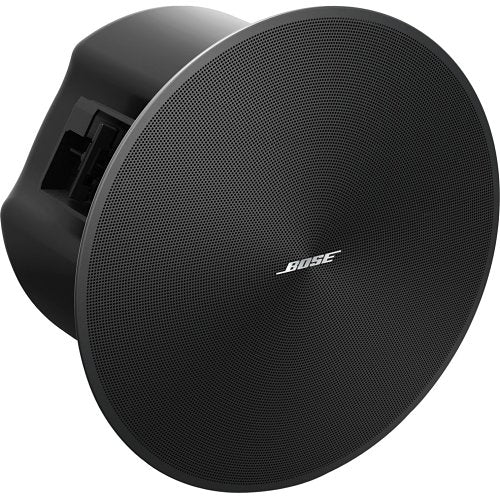

Bose Professional DesignMax 2-Way Indoor In-Ceiling Speaker

Premium 2-Way Indoor In-Ceiling Speaker
$699.95
$699.95

Bose Authorized Dealer

Contact Us

Contact us if you are interested in buying this product.

Need Help?

We're here to help. Call or chat with a Dreamedia specialist.

Free Shipping

Free nationwide shipping available!*

Free Returns

30 day guarantee.
Bose Professional DesignMax 2-Way Indoor In-Ceiling Speaker

Elevate Your Commercial Space with Pristine Audio

In the world of commercial audio solutions, the Bose Professional DesignMax DM5C 2-Way Indoor In-Ceiling Speaker stands out as a paragon of acoustic excellence and design ingenuity. Whether you're aiming to enhance the ambiance of a high-end boutique, deliver crystal-clear announcements in a bustling airport, or set the mood in a cozy restaurant, the DM5C offers unparalleled sound quality that immerses listeners in a truly captivating audio experience.

Uncompromising Sound Quality

At the heart of the DM5C's exceptional performance lies a 2-way speaker system. The synergy between the 5.25-inch woofer and the 1.25-inch neodymium dome tweeter creates a balanced sound output that covers a wide frequency range from 59 Hz to 20 kHz. This comprehensive audio coverage ensures that whether it's the deep bass of a jazz ensemble or the high-pitched chime of a notification alert, every sound is rendered with precision and clarity.

  • Frequency Range: 59 Hz – 20 kHz
  • Maximum SPL at 1 m: 111 dB
  • Crossover Frequency: 1.7 kHz, passive 2-way crossover

Designed for the Demands of Commercial Use

Understanding the diverse needs of commercial spaces, the DM5C is engineered to provide a high maximum Sound Pressure Level (SPL) of 111 dB, ensuring that your audio cuts through the ambient noise of any environment. The 60-watt power rating is a testament to its ability to deliver ample sound output, making it suitable for both background music and public address systems.

  • Power Handling: 125 W Continuous, 500 W Peak
  • Sensitivity (SPL/1 W at 1 m): 90 dB

Flexibility in Installation

The inclusion of 70-volt/100-volt transformer taps means that the DM5C can be seamlessly integrated into existing audio setups, offering versatile installation options. Whether you're working with a complex multi-speaker system or simply adding an individual unit, the DM5C adapts to your needs with ease.

  • Transformer Taps: 70-volt/100-volt

Consistent Sound Coverage

Bose Professional's proprietary Dispersion Alignment System ensures consistent sound coverage across the space. The 125° conical horizontal coverage pattern disperses sound evenly, preventing the audio dead spots that can occur with inferior speakers.

  • Horizontal Coverage: 125° conical

Refined Aesthetic Appeal

The DM5C's design is as thoughtful as its audio performance. The minimal-bezel grilles are not only elegant but also paintable, allowing the speakers to blend seamlessly into any decor. The rotatable and removable logo offers flexible branding options, while the IP55 outdoor rating ensures that the speakers are suitable for a wide range of applications, including those that expose them to wet conditions.

  • Grille Material: Perforated aluminum, powder-coated finish, tamper-resistant design, paintable

Easy and Secure Installation

Installation is a breeze with the QuickHold mounting system, which allows for fast and secure installation without compromising on safety or aesthetics. This feature is particularly beneficial for installers who need to work efficiently in commercial environments where time is of the essence.

  • Installation Features: QuickHold Mounting System

Durability for Peace of Mind

Durability is a critical consideration for any commercial investment. The DM5C's engineered plastics are highly resistant to UV fading, ensuring that the speakers maintain their appearance over time. The perforated aluminum grille is not just an aesthetic choice but a functional one, providing a tamper-resistant design that withstands the rigors of commercial use.

  • Environmental and Durability: IP55 rated, suitable for outdoor use

Safety and Compliance

Safety is paramount, and the DM5C meets rigorous standards with UL-1480A, S5591/ UL Listed, NFPA70, and CE compliance ratings. This commitment to safety and compliance gives you peace of mind that the speakers are a reliable choice for your commercial environment.

  • Safety Agency Ratings: UL-1480A, S5591/ UL Listed, NFPA70, CE compliant

Engage Your Audience with Superior Audio

Imagine walking into a space where the audio is so perfectly tuned that it enhances every interaction. With the Bose Professional DesignMax DM5C, this is the reality you can provide for your clients or patrons. Whether it's for background music that complements the shopping experience or clear, intelligible speech for announcements, the DM5C delivers superior audio that engages and delights.

Embrace the Bose Professional Experience

Choosing the DM5C is not just about purchasing a speaker; it's about embracing the Bose Professional experience. With Dreamedia available to design your home theater system, you have access to a team of experts who can ensure that the DM5C is integrated optimally into your space for the best possible audio experience.

Pricing and Availability

Representing an investment in quality, durability, and audio excellence. Elevate your commercial space with the pristine sound of Bose Professional and the expertise of Dreamedia.

Transform Your Space Today

Don't let subpar audio detract from the potential of your commercial space. Transform it with the Bose Professional DesignMax DM5C and let every note, word, and sound resonate with clarity and impact. Contact Dreamedia today to design your system and bring the exceptional sound quality of Bose into your environment.

With the Bose Professional DesignMax DM5C, you're not just installing speakers; you're creating an experience.

Our Review

Bose Professional DesignMax DM5C 2-Way Indoor In-Ceiling Speaker Review

Introduction

The Bose Professional DesignMax DM5C enters the market as a robust and versatile solution for commercial audio needs. With its 2-way in-ceiling design, this speaker aims to deliver not only superior sound quality but also the flexibility that commercial spaces require. As businesses seek audio solutions that can blend seamlessly into their environments while delivering consistent and powerful performance, the DM5C stands out as a contender worthy of consideration.

Design and Aesthetics

Upon unboxing the Bose DesignMax DM5C, one is immediately struck by its elegant design. The speaker features a minimal-bezel grille that can be painted to match any interior, making it unobtrusive in a variety of settings. The build quality is solid, with materials that feel durable and are designed to withstand the rigors of commercial use.

The QuickHold mounting system is a standout feature, offering a fast and secure installation process that can save valuable time and labor costs. The IP55 outdoor rating is a testament to the speaker's durability, ensuring it can withstand moisture and dust, making it an excellent choice for both indoor and outdoor commercial applications. Additionally, the high resistance to UV fading ensures that the speakers will maintain their appearance over time, even when subjected to direct sunlight.

Installation Flexibility

The DM5C's transformer taps provide the installer with a range of options for integrating the speakers into different audio setups, from low-impedance systems to 70-volt/100-volt line installations. This flexibility is essential in commercial environments where the audio requirements can vary greatly from one space to another.

The inclusion of a removable and rotatable logo allows businesses to align the branding to their preferences, adding a touch of customization to the installation.

Features and Technologies

Key features of the DM5C include the 2-way design, which ensures a balanced sound output, with the 5.25-inch woofer and 1-inch tweeter working in harmony to deliver full-range audio. The Dispersion Alignment System is engineered to provide consistent sound coverage, ensuring that listeners experience the same audio quality throughout the space.

The frequency range of 59 Hz – 20 kHz is impressive for an in-ceiling speaker, covering the breadth of sounds most commonly encountered in music and spoken word. The passive 2-way crossover at 1.7 kHz ensures a smooth transition between the high and low frequencies.

Power and Performance

With a 60-watt power rating and the ability to handle continuous power of up to 125 watts, the DM5C is equipped to deliver ample sound output for most commercial settings. The maximum SPL of 111 dB at 1 meter is indicative of the speaker's ability to project sound powerfully across a space, making it suitable for environments that require clear audio at higher volumes.

Weather Resistance

The IP55 rating not only bolsters the speaker's credentials for outdoor use but also provides peace of mind for installations in environments like kitchens or pool areas where moisture is a concern. The resistance to UV fading is particularly important for spaces with abundant natural light, ensuring the speakers remain visually appealing over time.

Performance

In testing the sound quality of the DM5C, one finds that it offers a clear and detailed audio experience. The speaker's coverage is broad and even, with the Dispersion Alignment System ensuring that sound is distributed evenly across the listening area.

At various power settings, the speaker maintains clarity without distortion, an essential quality for commercial environments where the audio may need to be adjusted based on the time of day or specific events.

Audio Quality

The DM5C's highs are crisp, and the mids are full-bodied, providing a rich listening experience. The lows are surprisingly robust for an in-ceiling speaker, though they may not replace the need for a dedicated subwoofer in systems where deep bass is crucial. The tweeter and woofer work in concert to deliver a balanced and engaging audio profile that is well-suited to background music, announcements, and even foreground music in certain settings.

Commercial Use Suitability

In commercial applications, the DM5C shines. Its sound quality and output levels are ideal for retail spaces, restaurants, conference rooms, and hospitality venues. The speaker's ability to deliver clear and consistent audio makes it a reliable choice for businesses that prioritize both aesthetics and performance.

Pros and Cons

The strengths of the Bose DesignMax DM5C are numerous. Its design is both functional and visually appealing, with a flexible installation system and a robust build suited for various commercial applications. The sound quality is excellent, with a wide frequency range and high maximum SPL.

However, potential drawbacks include the need for additional high-pass protection and filtering to ensure driver longevity, which could add complexity to the installation process. Furthermore, careful consideration is required when setting transformer taps to match specific installations, which may necessitate a more nuanced understanding of the audio system's design.

Installation Considerations

While the DM5C is designed to be user-friendly, the requirement for high-pass protection and filtering to safeguard the drivers could be seen as an added hurdle. Installers must be mindful of this when designing the audio system to avoid potential damage to the speakers over time. Additionally, the transformer taps, while providing flexibility, require a thorough understanding of the installation's power needs to ensure optimal performance and efficiency.

Final Thoughts

The Bose Professional DesignMax DM5C is a compelling option for any business seeking high-quality, flexible audio solutions. Its blend of performance, design, and installation versatility makes it a strong contender in the commercial audio market. When compared to similar offerings, the DM5C holds its ground, providing a combination of sound quality and practical features that are hard to match.

For potential users considering the DM5C for their commercial spaces, the speaker offers a reliable and aesthetically pleasing audio solution that can adapt to a wide range of environments. Its performance and construction suggest a product that will not only meet the immediate audio needs of a business but also stand the test of time.

Specifications

General Specifications

  • Brand: Bose Professional
  • Model Name: DM5C
  • Speaker Type: In-ceiling
  • Connectivity Technology: Coaxial
  • Recommended Uses: Commercial
  • Impedance: 8 ohms
  • Speaker System: 2-way
  • Transformer Taps: 70-volt/100-volt
  • Color: Black, white, paintable
  • Suitable for indoor use: Yes

Audio Performance

  • Frequency Range: 59 Hz – 20 kHz
  • Maximum SPL at 1 m: 111 dB
  • Sensitivity (SPL/1 W at 1 m): 90 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Crossover Frequency: 1.7 kHz
  • Coverage: Horizontal - 125° conical

Transducers

  • High-Frequency Transducer: 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
  • Low-Frequency Transducer: 1 × 6.5 in (165 mm) woofer, weather-treated
  • Woofer Size: 5.25 inches
  • Tweeter Size: 1 inch

Power Handling

  • Continuous: 125 W
  • Peak: 500 W

Physical Specifications

  • Net Weight: 13.1 lb (5.9 kg)
  • Product Dimensions (H×W×D): 13.4 in × 8.7 in × 9.0 in (340 mm × 222 mm × 229 mm)
  • Shipping Weight: 32.5 lb (14.7 kg)
  • Enclosure Material: Engineered plastics, highly UV fade-resistant
  • Grille Material: Perforated aluminum, powder-coated finish, tamper-resistant design, paintable

Environmental and Durability

  • Ingress Protection: IP55
  • Environmental Testing: Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations)
  • Operating Temperature: -25 °C to 70 °C (-13 °F to 158 °F)

Safety and Compliance

  • Safety Agency Ratings: UL-1480A, S5591/ UL Listed, NFPA70, CE compliant

Installation and Design Features

  • Dispersion Alignment System: Yes
  • QuickHold Mounting System: Yes
  • Industry-standard Accessories: Yes
  • Logo: Rotatable, removable
