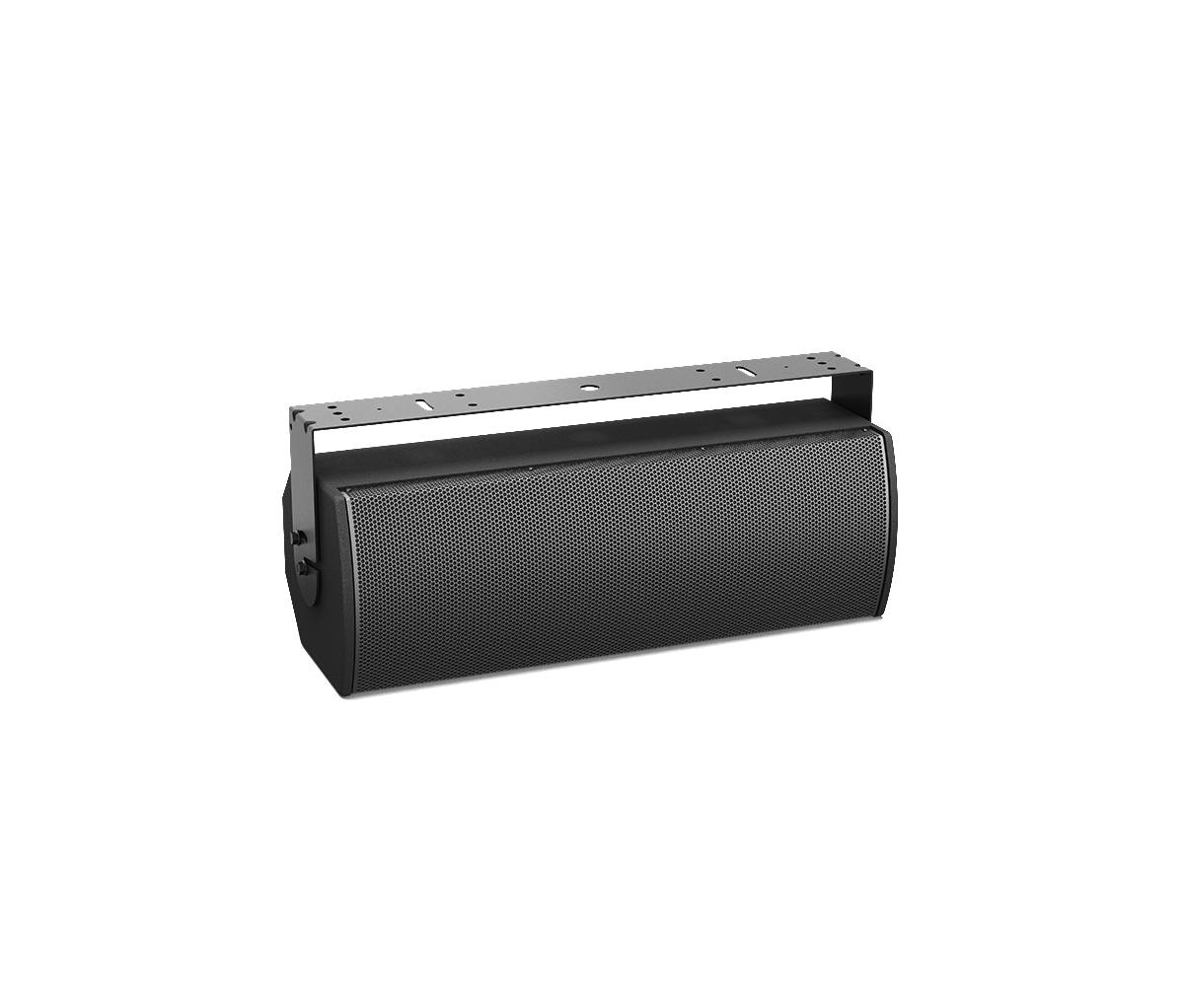

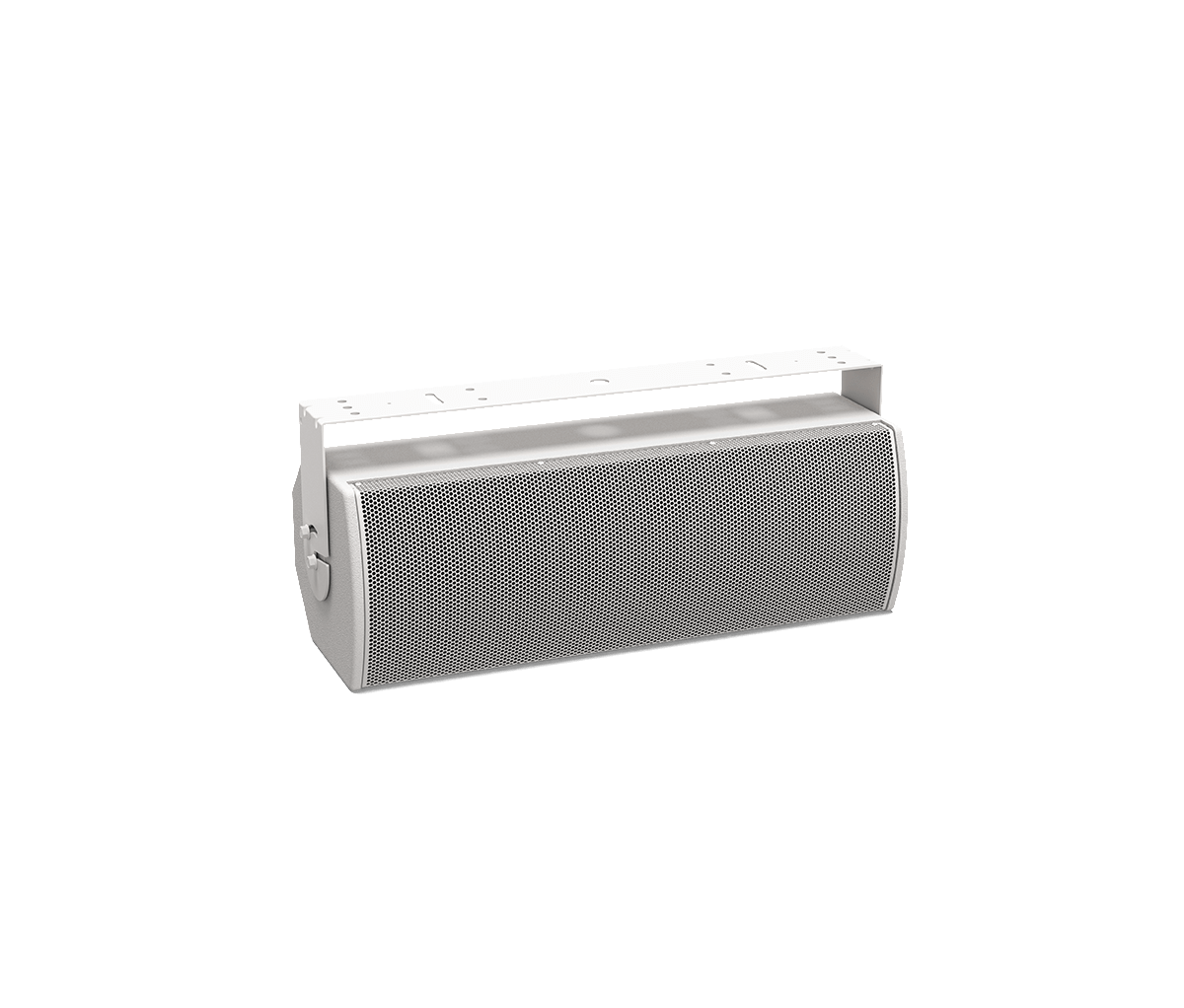

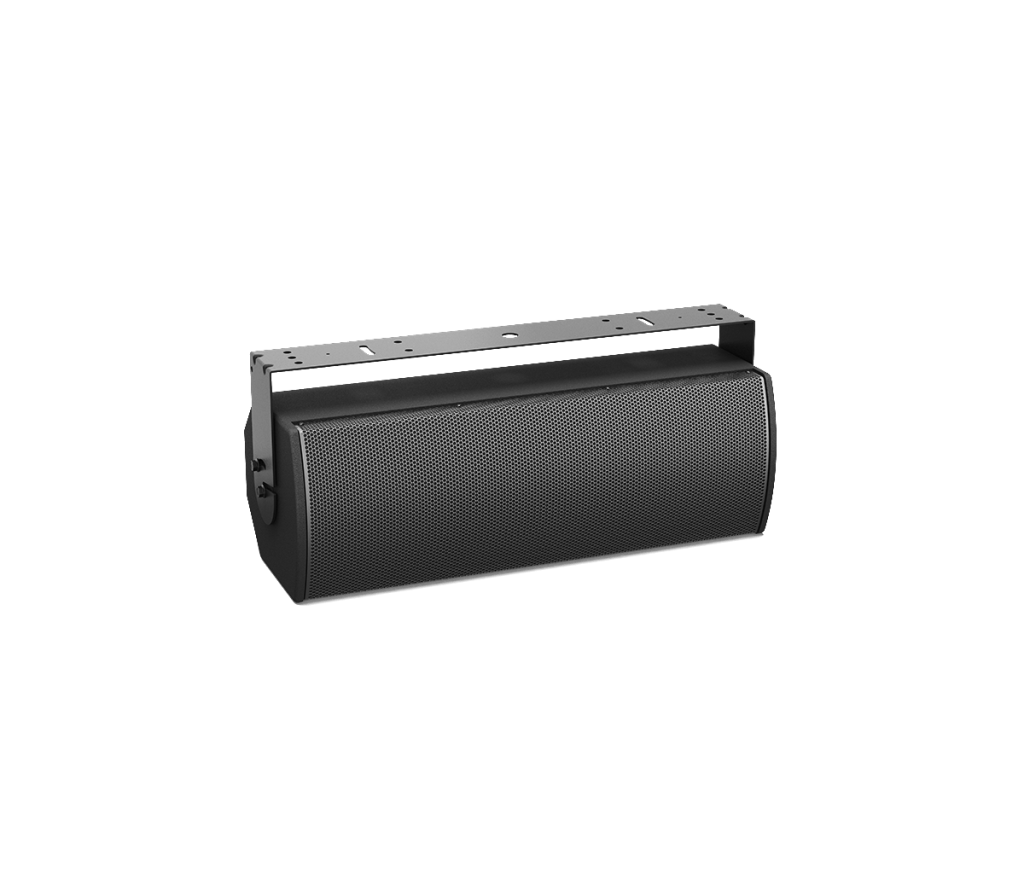

Bose Professional ArenaMatch Utility Outdoor Loudspeaker

High-performance outdoor loudspeaker with versatile applications

$1,618.00; $1,618.00
Unit price: per

Product variants

Bose Authorized Dealer

Purchase Contact Us

Contact us if you are interested in buying this product.

Quantity:

Need Help?

We're here to help. Call or chat with a Dreamedia specialist.

877-417-9000 Chat the crew

Free Shipping

Free nationwide shipping available!*

Free Returns

30 day guarantee.

Bose Professional ArenaMatch Utility Outdoor Loudspeaker

Unmatched Outdoor Performance

In the world of outdoor audio, finding a speaker that can withstand the elements while delivering exceptional sound quality is a rare gem. Enter the Bose Professional ArenaMatch Utility Outdoor Loudspeaker—a powerhouse of durability and audio excellence, designed to elevate any outdoor event or space with unparalleled sonic performance.

A Symphony of Sound in the Open Air

Imagine stepping into an outdoor venue where the sound is so rich, so clear, and so full of life that it feels like the artists are performing live in front of you. The Bose ArenaMatch Utility does just that. With its impressive frequency range of 70 Hz – 16,000 Hz and maximum SPL of 121 dB, this loudspeaker brings the concert to your backyard, poolside, or open-air venue.

Durable Design Meets Exceptional Craftsmanship

The ArenaMatch Utility is housed in an exterior-grade plywood enclosure, fortified by a robust grille made from three layers of materials including stainless steel and acoustic foam. This not only ensures an IP55 weather rating, protecting it from the harshest conditions, but also enhances its sound delivery. Its compact design makes it a discreet yet powerful addition to any outdoor space.

Precision Coverage for Every Corner

With a thoughtfully engineered 60° horizontal and 90° vertical coverage, this loudspeaker ensures that every note reaches your audience, whether it's for zone-fill coverage or high-SPL foreground music. The co-axial point source design means that sound is delivered coherently and responsively, providing an immersive listening experience for everyone in attendance.

Technical Excellence, by the Numbers

Frequency Range (-10 dB): 70 Hz – 16,000 Hz
Horizontal Coverage: 60°
Vertical Coverage: 90°
Maximum SPL at 1 m: 119 dB (free field), 121 dB (wall/ceiling)
Nominal Impedance: 8 Ω (transformer bypass)
Continuous Power Handling: 300 W
Peak Power Handling: 1200 W
Sensitivity (SPL/1 W at 1 m): 94 dB (free field), 96 dB (wall/ceiling)
Crossover Frequency: 200 Hz & 1.2 kHz

High-Performance Transducers

At the heart of the ArenaMatch Utility are high-frequency and low-frequency transducers engineered for precision and power. The Bose Professional EMB2S compression driver and LF8 high-excursion woofers work in harmony to deliver crisp, clear highs and deep, resonant lows.

Versatility at Its Core

Whether you need a portable solution for on-the-go events or a fixed installation to enhance a venue, the Bose ArenaMatch Utility adapts to your needs. Multiple mounting options, including a U-bracket and M8 threaded inserts, ensure secure and flexible placement, making this loudspeaker as versatile as it is powerful.

Consistent Voicing Across the Board

The voicing of the ArenaMatch Utility is in perfect harmony with Bose ArenaMatch array systems, ensuring a seamless audio experience when integrating with other Bose products. This consistency is key for venues and events that demand the best in audio coherence and quality.

Tailored for a Range of Applications

The ArenaMatch Utility Outdoor Loudspeaker is not just a speaker; it's a multi-purpose tool that excels in a variety of roles:

Front of House (FOH): Delivers powerful, clear sound to the audience.
Foldback: Acts as a monitor for performers on stage.
Fill: Provides supplemental sound coverage to ensure no area is left without music.

The Power to Perform

Bose has engineered the ArenaMatch Utility to handle the demands of outdoor audio with ease:

High-Power Output: Continuous power handling of 300 W and peak power of 1200 W.
Impressive SPL: Achieve high sound pressure levels without compromising on clarity.
Coaxial Design: Ensures focused, coherent sound delivery.

A Commitment to Quality

The ArenaMatch Utility comes with a 5-year warranty for the loudspeaker and 2 years for the input cover, reflecting Bose's confidence in the product's durability and performance. Additionally, the speaker is EN 54-24 certified, meeting strict safety and quality standards.

Aesthetic and Functional Accessories

Included with the ArenaMatch Utility are practical accessories that aid in installation and maintenance, ensuring your loudspeaker remains a reliable component of your audio setup for years to come.

The Bose Advantage

When you choose the Bose Professional ArenaMatch Utility Outdoor Loudspeaker, you're not just getting a product; you're gaining a partner in Dreamedia. Our team is available to design and integrate a home theater system that exceeds your expectations, leveraging our in-depth knowledge of Bose's superior audio solutions.

A Sound Investment

The Bose ArenaMatch Utility Outdoor Loudspeaker is more than a speaker—it's an investment in lasting, high-quality outdoor sound. Whether for a venue, a special event, or a personal oasis, this speaker delivers on the promise of exceptional audio performance, no matter the setting.

Why Choose Bose ArenaMatch Utility?

High-Power and Multi-Purpose: Versatile for any outdoor scenario.
Coaxial Design: For coherent and responsive sound.
Consistent Voicing: Harmonizes with Bose array systems.
Portable and Scalable: Flexible mounting and installation options.

The Bose Professional ArenaMatch Utility Outdoor Loudspeaker offers an audio experience that resonates with every note. Its robust build, exceptional sound quality, and versatile applications make it the ideal choice for anyone serious about outdoor audio. Engage your senses, captivate your audience, and trust in the durability and reliability that only Bose can provide.

With Dreamedia, embark on a journey to sonic perfection. We are here to guide you every step of the way, ensuring that your outdoor space becomes a haven for unforgettable sound experiences.

Our Review

Bose Professional ArenaMatch Utility Outdoor Loudspeaker Review

Introduction

The Bose Professional ArenaMatch Utility Outdoor Loudspeakers are engineered to deliver high-quality sound in rigorous outdoor environments. As part of the larger Bose ArenaMatch lineup, these loudspeakers are designed for sports stadiums, arenas, outdoor entertainment spaces, and venues requiring robust, weather-resistant audio solutions.

Design and Build

Overview of Design

The Bose ArenaMatch Utility loudspeakers boast a two-way co-axial point source design, which is crucial for achieving a coherent sound field in outdoor spaces where environmental factors can impact sound propagation. The co-axial arrangement ensures that the high and low frequencies emanate from the same point, mitigating phase issues and delivering a more natural and responsive listening experience.

Build Quality

Constructed to withstand the elements, the ArenaMatch Utility speakers feature durable materials and are built with longevity in mind. The robust design ensures they can endure exposure to various weather conditions, making them a reliable choice for permanent outdoor installations.

Features

Models and Specifications

The product line includes the AMM108, AMM112, and the AMS115 Sub, each designed to cater to different aspects of outdoor sound reinforcement:

The AMM108 is the more compact of the full-range models, with an 8-inch woofer and 1.7-inch compression driver. This model is suitable for applications requiring a smaller footprint without sacrificing sound quality.
The AMM112 steps up with a 12-inch woofer and a 3-inch compression driver, providing deeper bass and higher output, suitable for larger venues or where more powerful sound is required.
The AMS115 Sub complements the full-range speakers with a 15-inch long-throw neodymium driver, extending the system's low-frequency response and adding the punch needed for dynamic, bass-heavy content.

Each model has been meticulously engineered to ensure maximum performance within its designated role, with the power handling and SPL capacities reflecting the intended use-case scenarios.

Mounting and Installation

With multiple mounting options, the ArenaMatch Utility speakers offer flexibility in installation. The portability aspect, though less emphasized due to the intended permanent installation, still provides for a relatively straightforward transport and setup process for event-based applications.

Compatibility and Integration

These speakers are designed to work seamlessly with the larger Bose ArenaMatch array systems, ensuring consistent voicing and performance when integrated into a comprehensive Bose setup. This compatibility is a boon for venues looking to expand their existing Bose sound systems or for new installations aiming for uniform sound characteristics.

Performance

Sound Quality

The sound quality of the ArenaMatch Utility speakers is exemplary, with the co-axial design ensuring clarity and an even dispersion pattern. The consistent voicing across the different models allows for a cohesive sound experience when using multiple units together.

Power and SPL

The power handling and SPL (Sound Pressure Level) capabilities of these speakers are impressive, allowing them to deliver loud, clear audio in open outdoor spaces. The long-term and peak power ratings provide insight into the durability and headroom available, ensuring that the speakers can perform consistently at high volumes without distortion.

Application Use Cases

Whether it's for a concert, a sporting event, or a public address, the ArenaMatch Utility speakers provide the versatility needed to cover a range of outdoor audio requirements. The different models can be utilized in various configurations to suit the specific demands of any given event.

Pros and Cons Breakdown

Advantages

The high-power output and multi-purpose nature of these speakers make them an attractive option for outdoor venues. The co-axial design ensures a coherent and responsive sound that is crucial for large-scale audio distribution. Additionally, the scalability and various mounting options cater to a wide array of event types and sizes.

Limitations

The need for additional amplification and processing could be seen as a drawback for some users, particularly those looking for a more plug-and-play solution. Furthermore, to achieve the optimal audio performance, some EQ adjustments might be necessary, which requires a certain level of expertise.

User Experience

Setup and Operation

While the setup process is relatively straightforward, users will need to ensure that they have the appropriate amplifiers and processors to drive the speakers effectively. Once configured, the operation is simple, with the speakers delivering consistent and reliable performance.

Maintenance and Durability

Maintenance of the ArenaMatch Utility speakers is minimal, given their rugged design and weather-resistant construction. Their durability is one of the key selling points, enabling them to provide high-quality sound year after year, even in challenging outdoor environments.

Final Thoughts

The Bose Professional ArenaMatch Utility Outdoor Loudspeakers are a formidable choice for any venue or event requiring robust, high-quality outdoor sound reinforcement. Their integration capabilities, performance, and durability make them a valuable investment for professional sound applications. While they do require additional equipment and expertise to unlock their full potential, the investment in such a system is justified by the superior audio experience and the long-term reliability that Bose is known for. In the competitive market of outdoor audio solutions, the ArenaMatch Utility speakers stand out for their exceptional performance and versatility.

Specifications

General Specifications

Model: ArenaMatch Utility (AMU) Outdoor Loudspeaker
Weather Rating: IP55
Tonal Balance: Similar to ShowMatch and ArenaMatch array modules
Coverage: Zone-fill coverage and high-SPL foreground music
Design: Compact

Technical Specifications

Frequency Range (-10 dB): 70 Hz – 16,000 Hz
Horizontal Coverage: 60°
Vertical Coverage: 90°
Maximum SPL at 1 m: 119 dB (free field), 121 dB (wall/ceiling)
Nominal Impedance: 8 Ω (transformer bypass)
Continuous Power Handling: 300 W
Peak Power Handling: 1200 W
Sensitivity (SPL/1 W at 1 m): 94 dB (free field), 96 dB (wall/ceiling)
100V Transformer Taps: 10, 20, 40, 80 W
70V Transformer Taps: 5 W, 10 W, 20 W, 40 W, 80 W
Crossover Frequency: 200 Hz & 1.2 kHz, passive, separate bandpass filters per transducer

Transducers

High-Frequency Transducer Quantity and Size: 1 × Bose Professional EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil
Low-Frequency Transducer Quantity and Size: 2 × Bose Professional LF8 high-excursion 8 in (203 mm) woofer, 2 in (51 mm) voice coil

Physical Attributes

Ingress Protection: IP55 per EN60529; IP33C per EN 54-24
Enclosure Material: Exterior-grade plywood
Grille Material: 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
Mounting/Rigging Provisions: 2 × M8 threaded inserts for U-bracket, 4 × M8 threaded inserts on rear (127 × 70 mm, 4-bolt pattern)
Net Weight: 37.5 lb (17.0 kg), loudspeaker / 43.0 lb (19.5 kg), loudspeaker with U-bracket
Product Dimensions (H×W×D): 9.3 in × 27.0 in × 11.0 in (235 mm × 686 mm × 279 mm), loudspeaker with input cover
Shipping Weight: 51.0 lb (23.1 kg)

Accessories and Compliance

Input: (1) input cover
Included Accessories: (1) installation guide, (1) T3 square drive, (1) U-bracket, (2) rubber washers, (4) M4 screws, (4) M8 screws
Warranty: 5 years for loudspeaker, 2 years for input cover
EN 54-24 Certified: Yes
Safety Agency Ratings: EN 54-24 Certified
Color: Black
